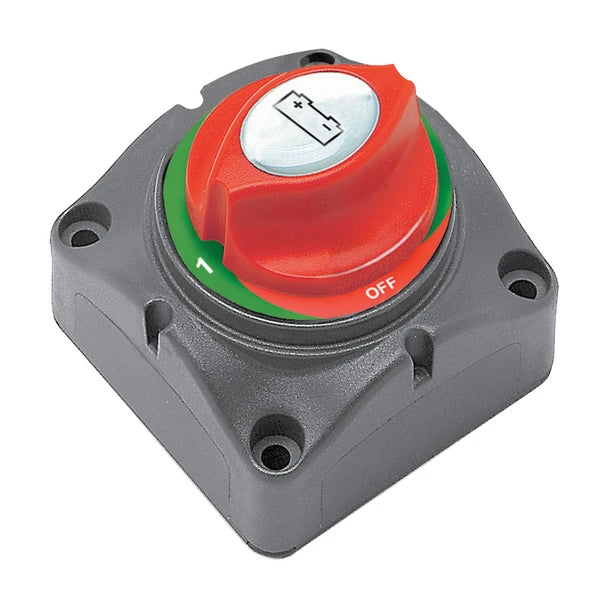

BEP 701-S Mini Dual Battery Selector Switch (200A Continuous)
Take complete control of your dual battery system with the BEP Marine 701-S 200A Mini Battery Selector Switch. The smallest 4-position selector switch on the market, this heavy-duty unit allows you to isolate, select (Battery 1 / Battery 2), or parallel (BOTH) your power banks effortlessly. Built with ignition protection, tin-plated copper studs, and high-temp housing, it’s an industry standard for marine setups, 4WDs, and caravans.
Detailed Product Description
Upgrade your power management setup with the world-renowned BEP 701-S Mini Battery Selector Switch. Recognized as the most compact selector switch on the market, the 701-S provides a simple, highly reliable way to manage two independent battery banks on your boat, 4WD, caravan, or RV.
Key Features & Benefits:
-
4-Way Power Control: Easily rotate between OFF, Battery 1, Battery 2, and BOTH. Select an individual battery to preserve your starter or run house loads, or set it to BOTH to combine banks for emergency cranking power.
-
Commercial-Grade Ratings: Independently tested to UL 1107 marine standards, handling 200A continuous, 300A intermittent, and a massive 1000A cranking/surge rating for 10 seconds.
-
Modular Contour System: Features removable side plates on all four sides to accommodate heavy-duty battery cables, plus a clip-on rear cover that insulates terminals against accidental short circuits. Modular design allows it to grid seamlessly alongside other BEP Pro Installer/Contour battery components.
-
Built Marine-Tough: Molded in high-temperature, fiber-reinforced plastics with corrosion-resistant tin-plated copper studs and nuts for maximum electrical conductivity and durability in harsh environments.
-
Versatile Mounting: Designed for surface mounting or panel recessing (into a standard 52mm cutout).
Technical Specifications
| Attribute |
Specification |
| Brand |
BEP Marine |
| Model / Part Number |
701-S |
| Switch Functions |
OFF / Battery 1 / BOTH / Battery 2 |
| Continuous Current Rating |
200 Amps DC |
| Intermittent Rating |
300 Amps DC (5 mins) |
| Cranking / Surge Rating |
1000 Amps DC (10 secs) |
| Max Operating Voltage |
48 Volt DC |
| Terminal Stud Size |
3 x 8mm (M8) Tin-Plated Copper Studs |
| Mounting Options |
Surface Mount or Recess Panel Mount (52mm hole) |
| Dimensions |
69 x 69 x 75 mm |
| Safety Certifications |
Ignition Protected (UL 1107 standard) |
| BLA Part Number |
113557 |
