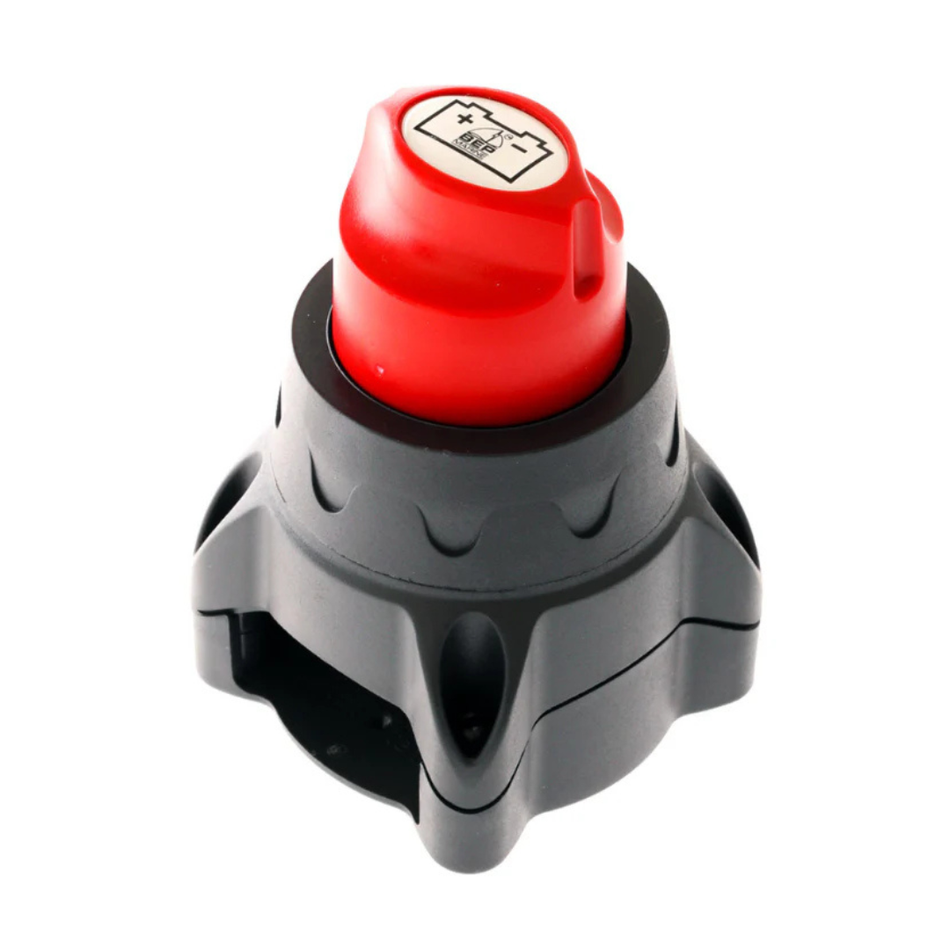

BEP Marine 700 Easyfit Battery Isolator Switch | Recessed Panel Mount (275A Continuous)

Take absolute control of your onboard power and eliminate battery drain with the heavy-duty BEP Marine 700 Easyfit Battery Switch. Specially engineered to meet the demands of marine technicians and automotive fabricators, this commercial-grade single-circuit ON/OFF switch features a clever threaded collar system. It allows the body to be cleanly recessed through dashboard or cabinet panels of varying thicknesses, ensuring a flush, professional finish.

Equipped with a high-performance 275 Amp continuous rating and tinned copper studs, the 700 Easyfit is the gold standard for separating starter circuits, house banks, or main winch feeds in harsh marine and 4WD environments.

Key Features

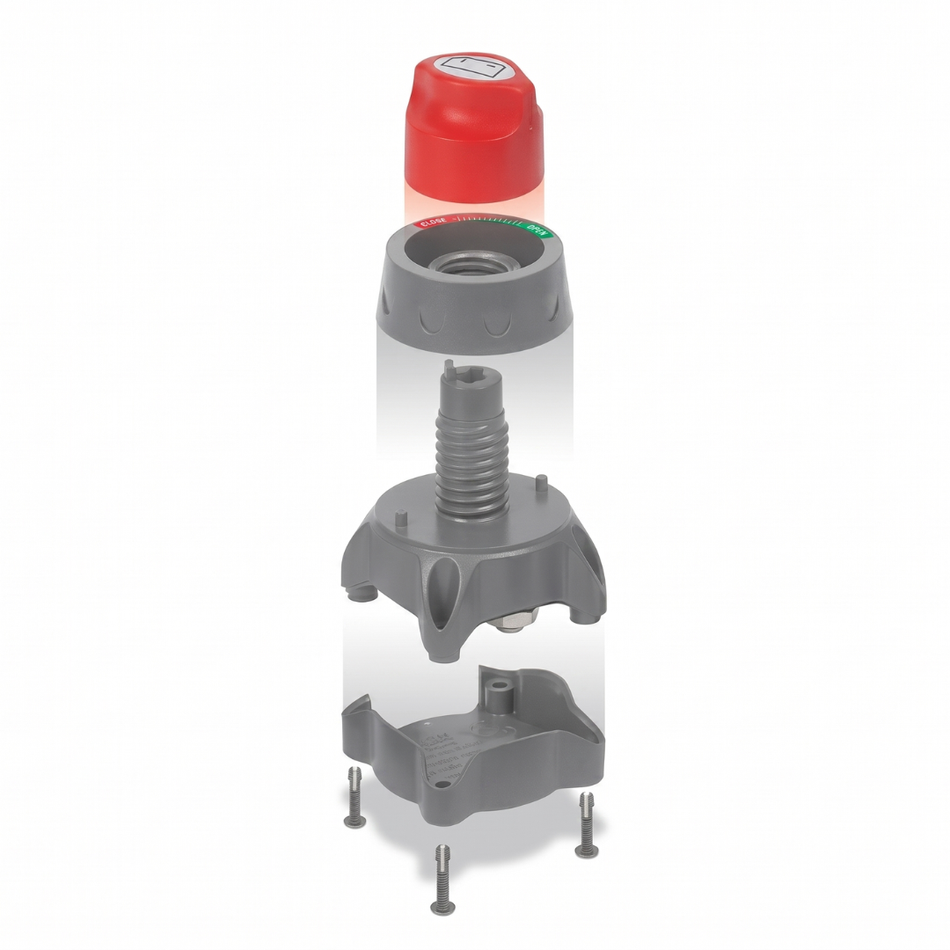

Threaded Panel Mount System: An easily removable threaded locking ring allows the switch to be recessed flush into dashboards or distribution panels up to 19mm (3/4”) thick.
Versatile Dual Mounting: While optimized for elegant recessing, the unique body contours allow it to be traditionally surface-mounted if required.
Patented Contour Lock: Features modular sliding side-plates that click-link perfectly into other BEP battery distribution modules and fuse holders to build clean clusters.
Secure Key System: The actuator control knob is non-removable in the ON or OFF position, but can be securely extracted by turning 45° past the OFF position for enhanced safety and security during storage.
ABYC & CE Compliant Protection: Includes a snap-on back cover that fully insulates the rear terminal studs, preventing short circuits and complying with strict ABYC electrical standards.
Ignition Protected Body: Molded in high-strength, glass-fiber reinforced plastic to completely contain potential internal sparks, making it 100% safe for engine bays and marine compartments.

Technical Specifications

Feature	Specification
Switch Type	Single Circuit ON - OFF
Continuous Rating	275 Amps DC
Intermittent Rating (5 Mins)	455 Amps DC
Cranking Rating (10 Secs)	1250 Amps DC
Maximum Operating Voltage	48V DC
Terminal Material	High-Conductivity Tinned Copper Studs & Nuts
Terminal Stud Size	2 x 10mm (3/8")
Maximum Panel Thickness	19mm (3/4")
Dimensions	69mm L x 69mm W x 110mm H (2.75" x 2.75" x 4.3")
Regulatory Standards	CE Marked, Ignition Protected (UL1500 / ISO 8846), ABYC Compliant

Applications

Designed for effortless retrofitting in place of standard European post-and-lever style switches. Perfect for isolating power across:

Inboard and outboard marine engines and boat house-battery banks
4WD dual-battery installations, under-bonnet systems, and main camper canopy feeds
Dedicated heavy-duty vehicle recovery winches and high-output DC-DC setups
Off-grid solar storage networks and industrial auxiliary machinery

Installation Note: To achieve a perfect recessed mount, use a standard 52mm (2-1/16") hole saw to cut through your dashboard panel. Slide the switch neck through from the back, tighten the threaded retaining ring firmly down from the front, and snap the control knob into place. Secure your heavy 25mm² to 70mm² battery cables using 10mm (M10) copper lugs.
