YAMAHA WATER PUMP KIT 6FM-W0078-02

YAMAHA WATER PUMP KIT 6FM-W0078-02

SKU: YHJB-6FM

$57.20 - $57.20
$57.20
$57.20 - $57.20
$57.20
In Stock

Click & Collect Available

Order online and collect within 2 hours during business hours.

Aftermarket Water Pump Repair Kit with Housing for Yamaha | Replaces 6FM-W0078-02

Fitment Guide

This kit fits the following newer-generation Yamaha 4-stroke outboard models:

  • Yamaha 4-Stroke: F20 / F20F / F20G (2017–Present)

  • Yamaha 4-Stroke: F25 / F25G / T25 High Thrust (2017–Present)

Part Number Cross-Reference

This aftermarket kit replaces and crosses over with the following factory and major brand numbers:

  • Yamaha OEM: 6FM-W0078-02, 6FM-W0078-02-00, 6FM-W0078-01, 6FM-W0078-00

  • Sierra Marine: 18-4527

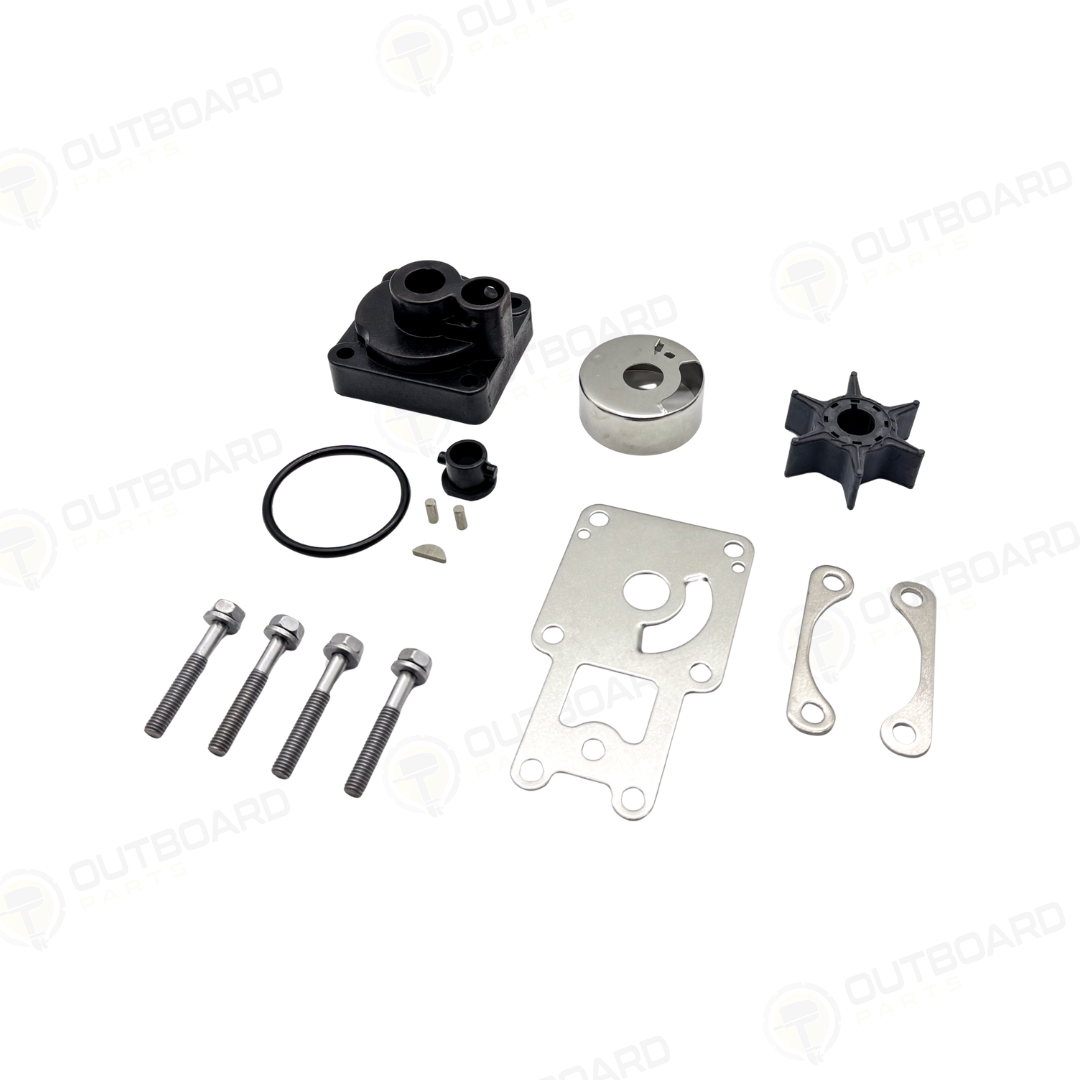

What’s Included in the Box:

  • 1 x Water Pump Housing (Replaces 6L2-44311-01)

  • 1 x Neoprene Impeller (Replaces 6L2-44352-00)

  • 1 x Stainless Steel Outer Insert Cup (Replaces 6L2-44322-00)

  • 1 x Wear Plate (Replaces 6FM-44323-01)

  • 1 x Cartridge Outer Plate Gasket

  • 1 x Water Seal Damper

  • 1 x O-Ring & 1 x Woodruff Key

  • 2 x Dowel Pins & 4 x Mounting Bolts
