YAMAHA / MARINER 3HP, 6HP, 8HP, 9.9HP, 15HP FUEL PUMP REPAIR KIT

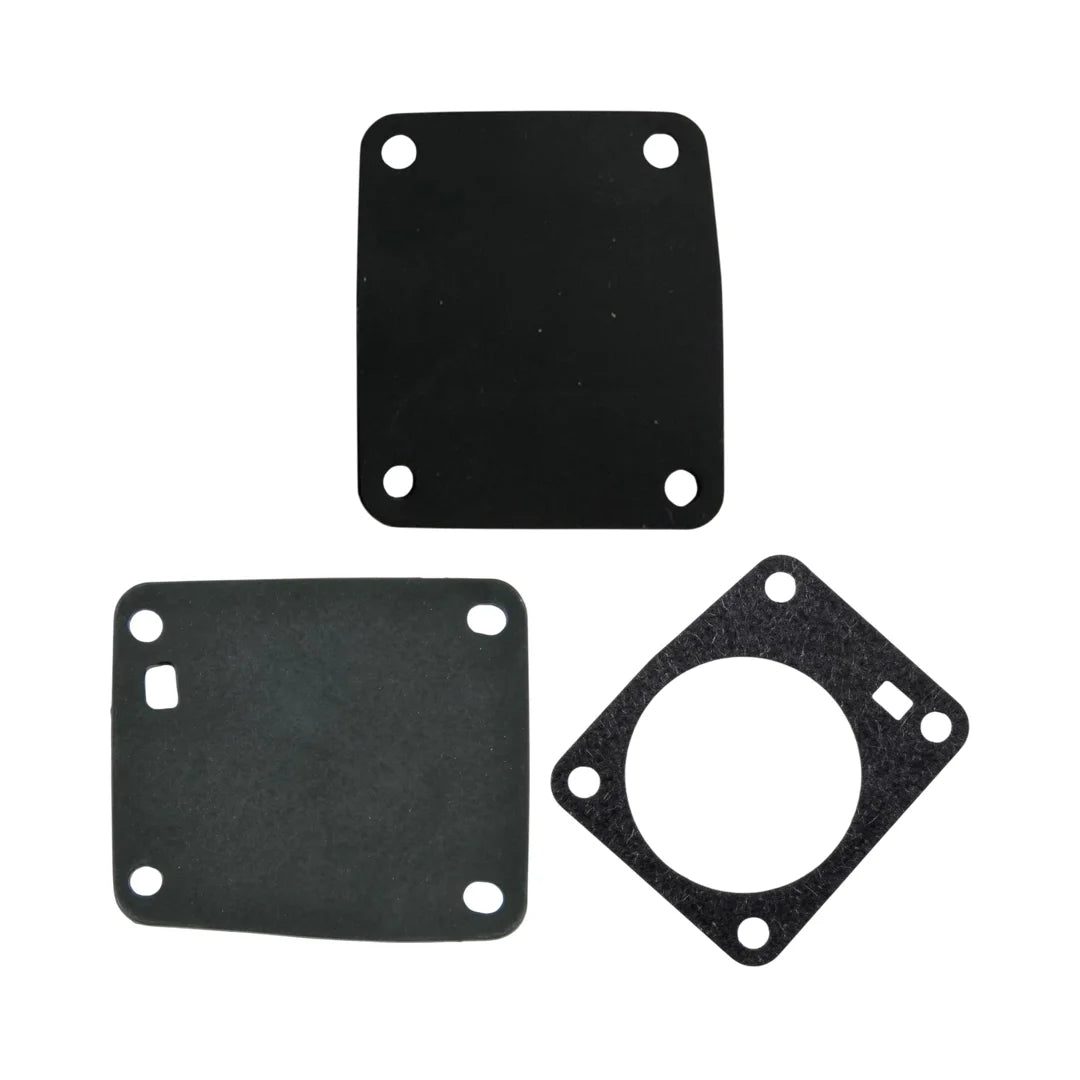

Kit Components

• 63V-24411-00: Outer Diaphragm
• 6G1-24411-00: Inner Diaphragm
• 6G1-24431-01: Fuel Pump Gasket

Compatible Yamaha Models and Years

This combination is most commonly used for Yamaha and Mariner outboards in the 3 HP to 15 HP range.

Horsepower Model Series Year Range

3HP 3A / 3AMH 1988 - 2012+

6HP 6C / 6D / 6M 1984 – 2012+

8HP 8C / 8M 1984 – 2012+

9.9HP 9.9F / 9.9G / 15F 1995 – 2017

15HP 15F / 15MSH 1996 – 2009

Compatible Mariner Models

Horsepower Model / Serial Series Common Year Range

3HP 3A / Malta (Serial starts with 6L5)1988 – 2002

6HP 6C (Serial starts with 6H6 or 6H8)1984 – 1999

8HP 8C (Serial starts with 6G1)1984 – 1999

9.9HP 9.9F / 9.9G (Serial starts with 63V or 6E7)1990 – 2005

15HP 15F / 15MSH (Serial starts with 63V or 682)1990 – 2005

Specific Breakdown

• Small HP Models (3, 6, 8 HP): These parts are the standard "Go-To" for the classic 6 HP and 8 HP 2-stroke engines (often referred to as the 6G1 series). Some international 3A models also use these gaskets.
• Mid-Range (9.9 & 15 HP): For these models, this kit specifically fits the 2-stroke versions. If you have a 4-stroke (F9.9 or F15), these parts generally will not fit, as those pumps use a different internal configuration.
• Mariner Cross-Compatibility: Because Yamaha manufactured many smaller Mariner outboards during the 1980s and 90s, this kit also fits Mariner 6 HP, 8 HP, 9.9 HP, and 15 HP 2-stroke models with serial numbers beginning with "6G1" or "63V".
