YAMAHA LOWER UNIT GASKET KIT 115HP, 225HP 1984 - 2026 6G5-W0001-C1

YAMAHA LOWER UNIT GASKET KIT 115HP, 225HP 1984 - 2026 6G5-W0001-C1

SKU WA 6G5-W0001-C1
$57.20 - $57.20
$57.20
$57.20 - $57.20
$57.20

Click & Collect Available

Order online and collect within 2 hours during business hours.

Lower Unit Gasket Kit for Yamaha 20HP - 25HP

    • Yamaha OEM Part Numbers:

      • 6G5-W0001-C1 / 6G5-W0001-C1-00 (Primary Part Number)

      • 6G5-W0001-21-00 / 6G5-W0001-20-00 (Superseded Part Numbers)

      • 6E5-W0001-C1-00 / 6E5-W0001-51-00 / 6F3-W0001-C1-00 (Interchangeable OEM Part Numbers)

    • Aftermarket Cross-Over Numbers:

      • Sierra Marine: 18-2794-1

      • WSM Parts: 446-146

      • GLM: 87830

    Engine Fitment & Application Chart

    Feature Details
    Part Type Lower Unit / Gearcase Seal Kit
    Engine Type Yamaha V4 & V6 (2-Stroke & 4-Stroke)
    Horsepower 115 HP, 130 HP, 150 HP, 175 HP, 200 HP, 225 HP
    Model Years 1984 – Current

    Compatible Outboard Models

    • 115 HP & 130 HP Models (V4 2-Stroke):

      • 115B / 115C / 115ETLD / 115ETXD / 115TLR / 115TXR

      • 130B / 130ETLD / 130ETXD / 130TLR / L130

    • 150 HP – 225 HP Models (V6 2-Stroke 2.6L):

      • 150A / 150F / 150G / 150TLR / C150 / L150 / LX150 / LZ150

      • 175A / 175B / 175TLR / 200A / 200F / 200TLR / 225D / 225TLR

    • 150 HP Models (4-Stroke):

      • F150A / F150B / LF150 (2.6L Inline-4 / early V6 gearcase profile)

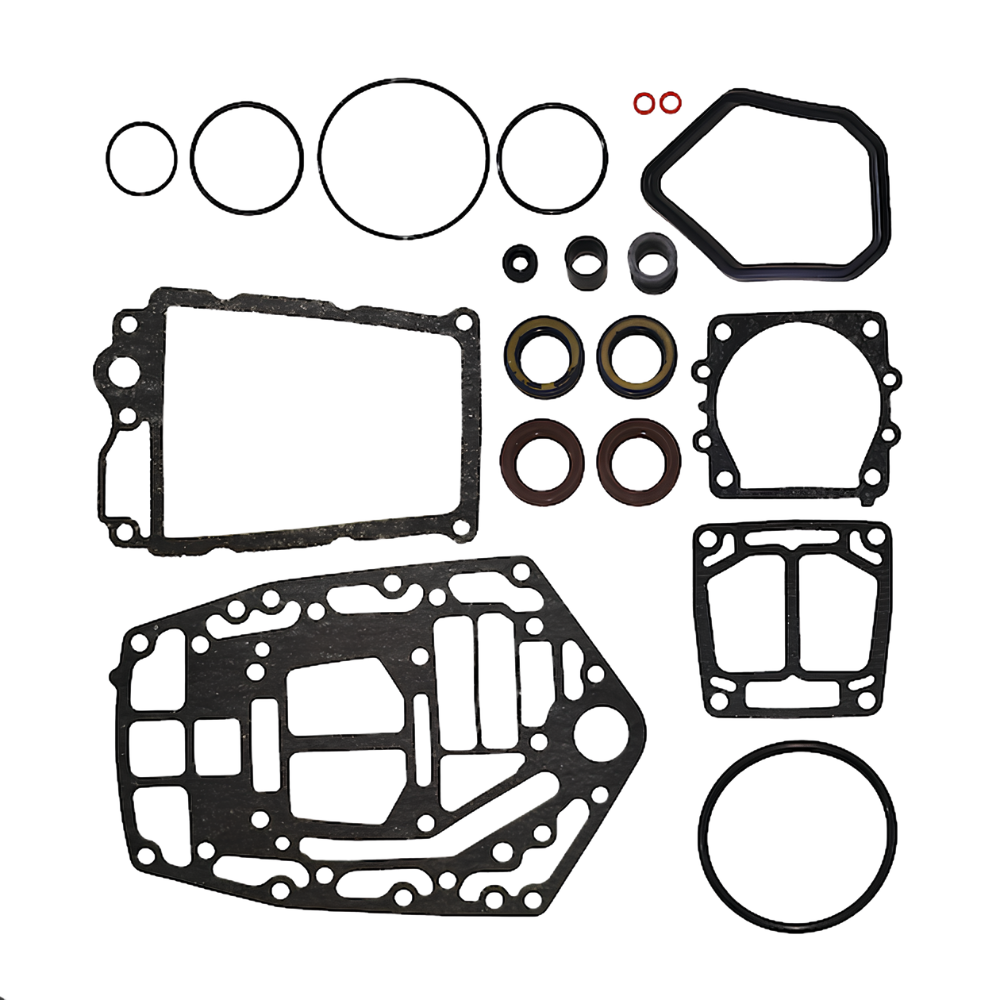

    Kit Contents Include

    • Propeller Shaft Oil Seals (OE # 93101-30M17-00)

    • Driveshaft Base Oil Seals (OE # 93101-28M16-00)

    • Shift Shaft Oil Seal (OE # 93106-09014-00)

    • Bearing Carrier & Shaft O-Rings (OE # 93210-97M55-00, 93210-86M38-00, 93210-37M67-00)

    • Water Pump Base Plate Gasket (OE # 6E5-44315-A0-00)

    • Lower Unit Drain & Fill Plug Washers (OE # YSG-14090-90-8G)
