Viper Pro Series 1500 Electric Anchor Winch Bundle - No Rope and Chain Kit - Boats up to 12M

The Viper Pro Series 1500W Anchor Winch is designed for larger vessels and serious boating applications where high pulling power, large rope capacity and dependable performance are essential. Powered by a substantial 1500W electric motor, the Pro Series 1500 delivers the torque required for larger anchors, heavier ground tackle and demanding deep-water anchoring. Depending on the rope and chain configuration, the large-capacity drum can accommodate substantial lengths of anchor rope, making it particularly well suited to offshore fishing and deeper anchoring applications. With an impressive fall rate of up to 55 metres per minute, the 1500 allows fast anchor deployment while delivering the powerful retrieval performance required to bring heavy anchors and chain back onboard. At the heart of the winch is a one-piece 32mm solid stainless steel shaft supported by three bearings, providing strength, stability and dependable operation under load. The heavy-duty housing incorporates Viper’s 90-degree welded frame design, which minimizes the gap between the drum and surrounding structure. This helps reduce the possibility of rope entering unwanted areas around the drum and eliminates the need for additional rope guards. The frame and drum assembly are manufactured from substantial 8mm plate 316 marine-grade stainless steel and hand polished to a mirror finish, providing outstanding strength, corrosion resistance and premium presentation. For easier installation, approximately .5 metre of 3 B&S cable is already fitted to the motor, complete with cable joiners. The 1500W motor uses a three-cable wiring configuration, so installers should refer to the supplied Viper wiring diagram when completing the electrical installation.

Backed by a comprehensive 5-year Viper performance warranty, the Pro Series 1500 is built for boat owners who take their anchoring seriously and require strength, capacity and dependable performance season after season.

Key Features

• High-output 1500W electric motor
• Designed for larger vessels from approximately 8 metres plus
• Large-capacity drum for offshore and deep-water anchoring
• Fast 55m/min anchor fall rate
• 8mm plate 316 marine-grade stainless steel frame and drum
• Hand polished to a mirror finish
• One-piece 32mm solid stainless steel shaft
• Three support bearings for added shaft stability
• 90-degree welded housing design helps minimize rope-jam areas
• No additional drum guards required
• Approximately .5 meter of 3 B&S motor cable fitted
• Three-cable motor wiring configuration
• Compatible with Bell Marine custom-made tinned copper wiring looms
• Comprehensive 5-year Viper performance warranty

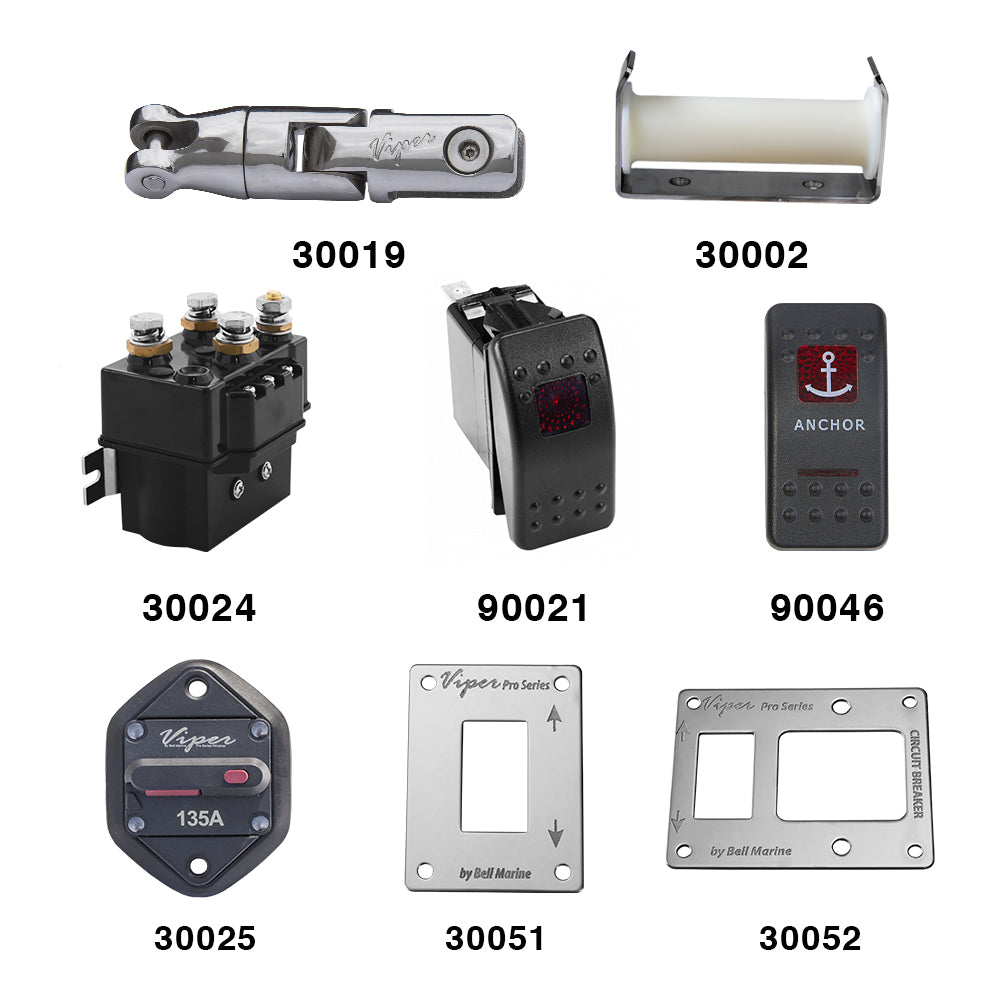

What’s Included

• 30003-S – Viper Pro Series 1500W Anchor Winch
• 30019 – Large Viper Pro Series Anchor Swivel
• 30002 – Large Viper Deluxe Anchor Roller
• 30024 – 400 Amp Reversing Solenoid
• 90021 – LED Illuminated Marine Rocker Switch
• 90046 – Viper Laser-Etched LED Illuminated Switch Cover
• 30025 – 135 Amp Flush Mount Circuit Breaker with Rubber Seal
• 30051 – Single LED Switch Stainless Steel Face Plate

For larger boats and demanding anchoring applications, the Viper Pro Series 1500 delivers serious pulling power, heavy-duty construction and the proven reliability expected from Viper.
