TYREE 8B&S (7.7mm²) Twin Red/Black Tinned Marine Cable

Tyree 8B&S Twin Sheath Heavy Duty Automotive & Marine Cable | Black

Take complete control of your high-power demands with the Tyree 8B&S Twin Sheath Cable (MWS296032). This heavy-duty, high-amperage cable is the gold standard for high-draw DC circuits where voltage drop can threaten system performance. Engineered to withstand the elements, it features a durable, UV-stabilized black outer jacket, making it perfect for exposed outdoor runs, chassis routing, and harsh marine environments.

Key Features & Benefits

• Maximum Current, Minimum Drop: Rated at a massive 59A continuous, this 8B&S (7.7mm² nominal area) cable ensures stable, efficient energy delivery over long runs with minimal power loss.

• Tinned Copper Superiority: Constructed with 96 individual strands of 0.32mm Tinned Copper Wire (TCW) to AS/NZS 1125. Tinned copper provides unbeatable resistance to corrosion, oxidation, and "green death," extending the cable's lifespan in saltwater and humid conditions.

• All-Weather UV Protection: Coated in a robust, UV-stabilized black 5V90 PVC sheath that won't crack or degrade under intense sunlight. Ideal for roof rack solar arrays or under-vehicle mounting.

• Premium Thermal Resistance: Insulated with RoHS-compliant V90 PVC (certified to AS/NZS 3808), meaning it safely operates in ambient temperatures up to 90°C—perfect for hot engine bays and tight battery boxes.

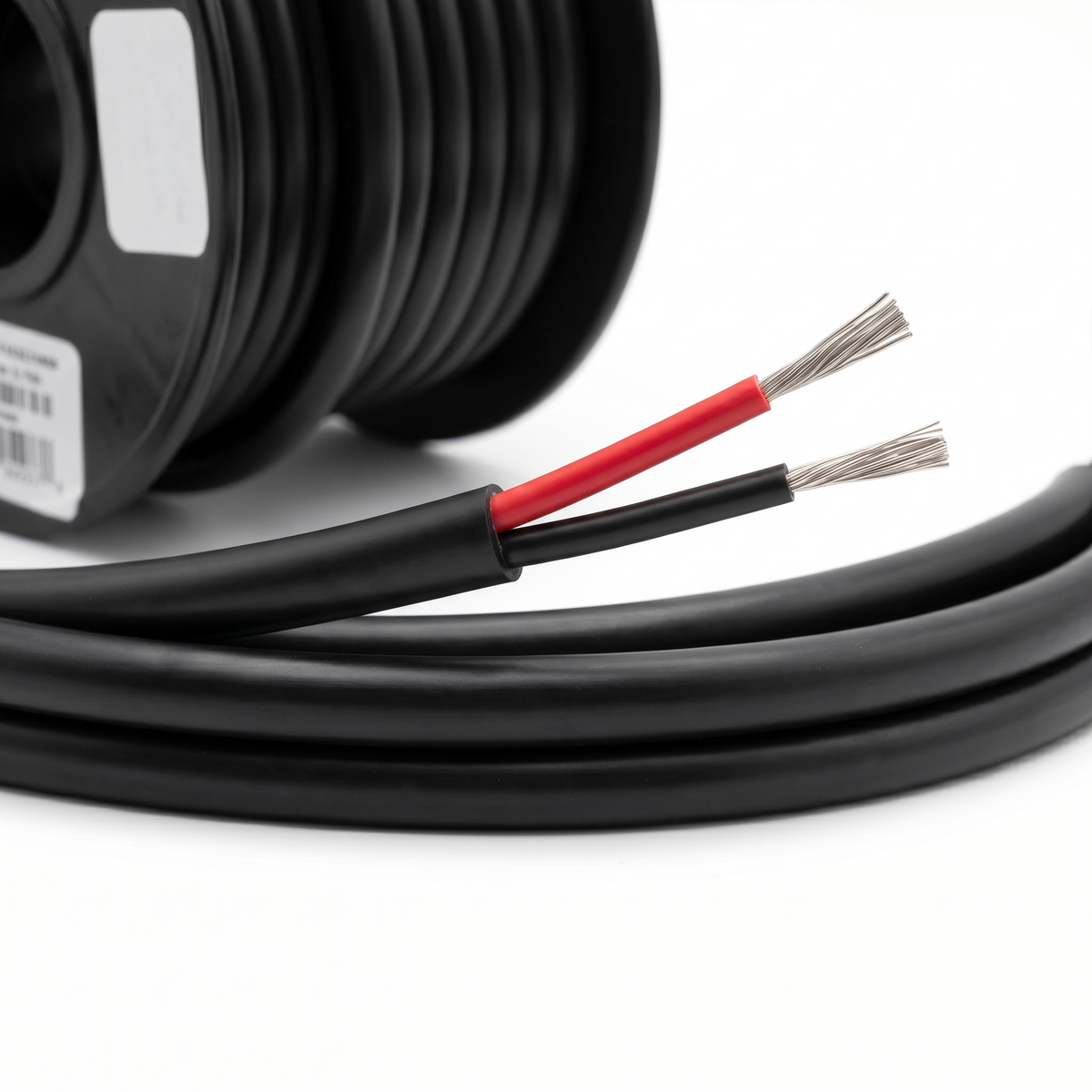

• Safe Polarity Tracking: The flat black outer jacket conceals clearly distinct Red and Black internal cores for rapid, mistake-free installation.

Technical Specifications (Model: MWS296032)
