TYREE 6MM TWIN SHEATH WHITE TINNED COPPER WIRE PER METER
SKU: SUR/MWS26503-WH-100
Click & Collect Available
Order online and collect within 2 hours during business hours.

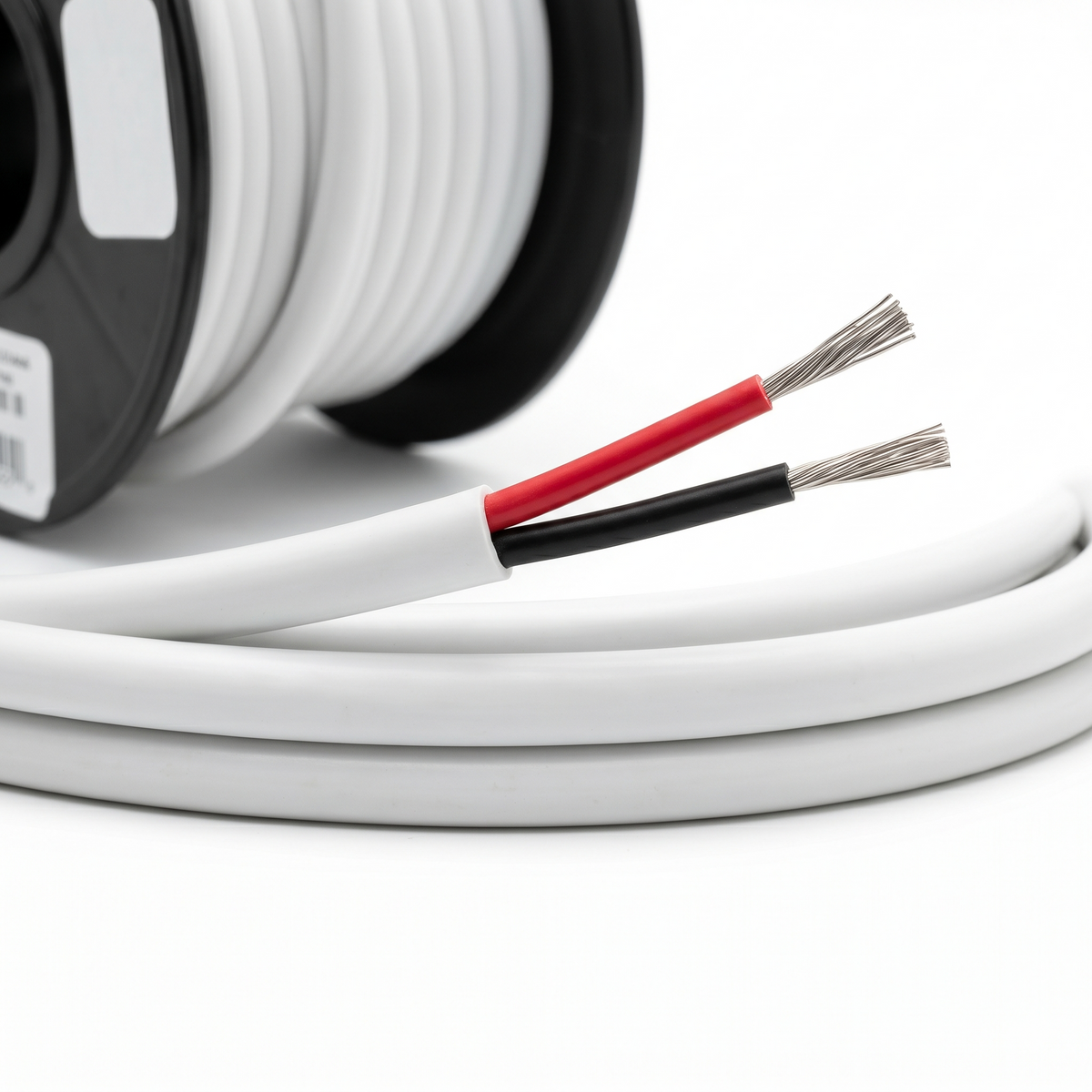

Tyree 6mm Twin Sheath Automotive/Marine Cable | White
Maximize your heavy-duty electrical performance with the Tyree 6mm Twin Sheath Cable (MWS26503 series). This premium, heavy-gauge wire is engineered specifically for Extra Low Voltage systems requiring superior current capacity over long distances. Designed to minimize voltage drop, it is the ultimate choice for high-draw automotive, marine, 4WD dual-battery, and solar installations.
Key Features & Benefits
-
Tinned Copper Powerhouse: Built with Tinned Copper Wire (TCW) conductors compliant with AS/NZS 1125. Tinned copper provides unbeatable resistance to oxidation, corrosion, and "green death"—making it highly recommended for marine environments and outdoor exposure.
-
Superior Current Management: With an impressive 38A rating, this 6mm industry-equivalent cable effortlessly handles high loads with minimal electrical resistance.
-
High-Temperature Resilience: Insulated with RoHS Compliant V90 PVC and protected by a robust 5V90 PVC outer sheath (AS/NZS 3808 certified). It withstands temperatures up to 90°C, ensuring safe performance inside hot engine bays or tight electrical cavities.
-
Easy Installation: The durable, flat white outer jacket houses clearly color-coded Red and Black internal cores for foolproof polarity tracking.
Technical Specifications (MWS26503 Series)
| Feature | Specification |
| Industry Equivalent | 6mm |
| Conductor No/Dia | 57 / 0.32 mm |
| Nominal Area | 4.5 $mm^2$ |
| Amp Rating | 38A (JASO D609 @ 30°C) |
| Electrical Resistance | 4.15 ohm/km (@ 20°C) |
| Nominal O.D. | 5.7 x 9.6 mm |
| Mass | 14.0 kg per 100m |
| Voltage Rating | Extra Low Voltage Only |
