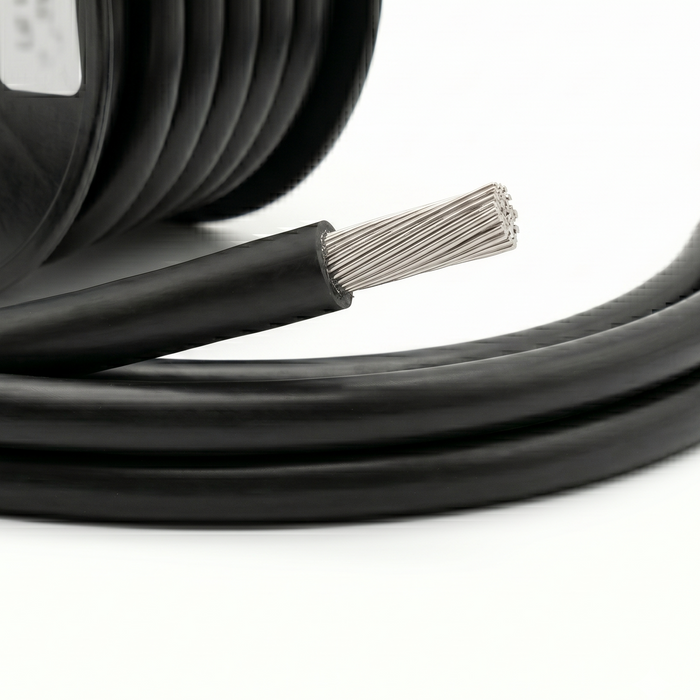

TYREE 32MM 2B&S Tinned Black Marine Cable

TYREE 32MM 2B&S Tinned Black Marine Cable

SKU: SUR/MBS145503BK-30

$27.21 - $27.21
$27.21
$27.21 - $27.21
$27.21
In Stock

Click & Collect Available

Order online and collect within 2 hours during business hours.

Tyree 2B&S (32mm²) Single Core Marine Tinned Power Cable | Black

When compromising on power delivery isn't an option, the Tyree 2B&S Single Core Marine Tinned Cable (MBS145503 / MBS2 series) is built to step up to the plate. This ultra-heavy-duty, high-amperage cable is purpose-engineered to eliminate voltage drop and handle substantial electrical loads in 12V, 24V, and 48V DC systems.

Sporting a rugged, single-core black design, it is the ultimate foundation for negative returns or main power routing in premium marine setups, high-end 4WD canopy builds, and off-grid solar storage.

Key Features & Benefits

  • Defensive Tinned Copper Shielding: Features a high-conductivity multi-strand Tinned Copper Wire (TCW) conductor compliant with AS/NZS 1125. The sacrificial tin coating completely stops oxidation, salt air, and moisture creep dead in its tracks, preventing "black wire" or "green death" corrosion.

  • Massive 188A–190A Current Capacity: Safely rated for up to 190 Amps continuous (@ 30°C based on JASO D609). This heavy-gauge wire ensures high-demand components always operate at full capacity without overheating.

  • High-Temperature Thermal Protection: Encased in thick, RoHS-compliant V90 / V90HT PVC insulation rated to safely manage temperatures up to 90°C. It is inherently resistant to flame, fuel, oils, and the intense ambient heat found in tightly packed engine bays and bilges.

  • High Flexibility for Tight Routing: Designed with a dense, multi-strand composition (up to 455 individual strands), making it significantly more flexible and easier to manipulate around tight structural ribs or vehicle chassis than rigid industrial wire.

Technical Specifications (32mm² / 2B&S Gauge)

Feature Specification
Industry Equivalent 2 B&S (2 AWG equivalent)
Conductor Stranding Options Multi-strand (e.g., 399/0.32 mm to 455/0.30 mm)
Nominal Cross-Sectional Area 32.15 $mm^2$
Amp Rating 188A – 190A Continuous (@ 30°C)
Electrical Resistance ~0.58 to 0.62 ohm/km (@ 20°C)
Nominal O.D. (Outer Diameter) Approx. 10.3 mm to 10.7 mm
Voltage Rating Extra Low Voltage Only (Up to 120V DC)
Compliance AS/NZS 1125 (Conductor) & AS/NZS 3191 / 3808 (Insulation)

Ideal Applications

    • High-Demand Battery Banks: The absolute go-to choice for main battery-to-battery interconnects and heavy-duty parallel configurations.

    • Large Off-Grid Power Inverters: Critical safety infrastructure for wiring 2000W to 3500W pure sine wave inverters.

    • High-Draw Equipment Circuits: Perfect for 4WD recovery winches, heavy commercial anchor winches, bow thrusters, and main distribution hub links.
