TOHATSU WATER PUMP KIT 3F0-87322-1

Aftermarket Water Pump Repair Kit for Tohatsu / Nissan & Mercury | Replaces 3F0-87322-1

Fitment Guide

This water pump kit is designed specifically for ultra-portable 2-stroke and 4-stroke outboard models:

Tohatsu / Nissan Outboards

• Tohatsu / Nissan 2-Stroke: 2.5HP / 3.5HP (Models M2.5A2 / M3.5A2 / M3.5B2 / NS2.5A2 / NS3.5A2 / NS3.5B2)

• Tohatsu / Nissan 4-Stroke: 2.5HP / 3.5HP (Models MFS2.5B / MFS3.5B)

Mercury / Mariner Outboards

• Mercury / Mariner 2-Stroke: 3HP / 3.3HP (1993 & Newer, Serial No: 0D901217 and up)

• Mercury / Mariner 4-Stroke: 2.5HP / 3.5HP (1999 & Newer, Serial No: 0R411838 and up)

Part Number Cross-Reference

This aftermarket kit replaces and crosses over with the following factory brand numbers:

• Tohatsu / Nissan OEM: 3F0-87322-1, 3F0-87322-0, 3F0873221M, 3F0873220M, 3AB-87322-0

• Mercury / Quicksilver OEM: 16159A2, 8M0080264, 889246A16

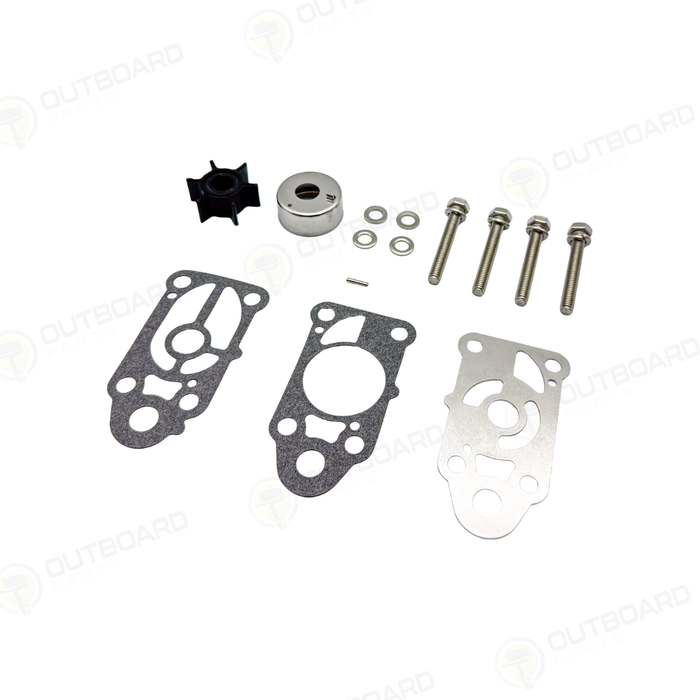

What’s Included in the Box:

• 1 x Premium Water Pump Impeller (Replaces 369-65021)

• 1 x Stainless Steel Cartridge Outer Insert Cup (Replaces 3F0-65011)

• 1 x Stainless Steel Wear Plate (Replaces 3F0-65025)

• 2 x Pump Case Fitment Gaskets (Replaces 3F0-65029 & 3F0-65018)

• 1 x Drive Shaft Roll Pin (Replaces 369-65022)
