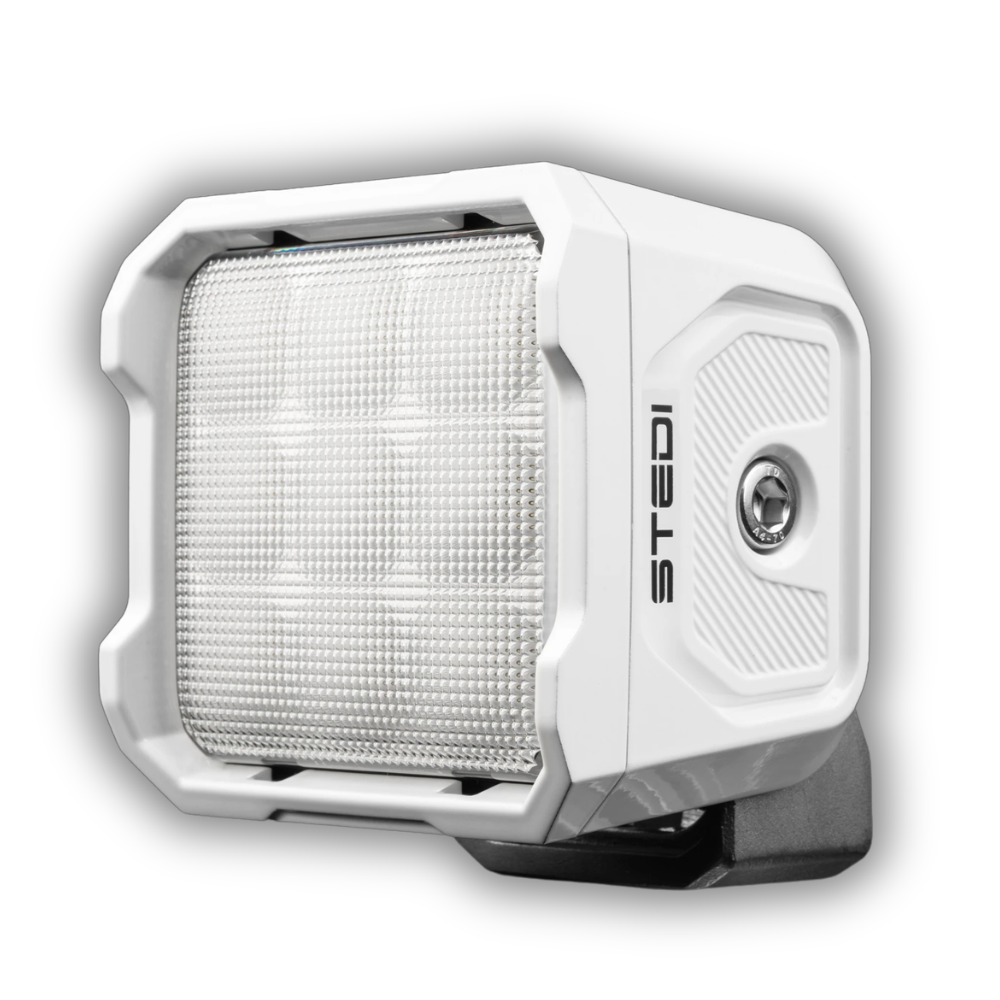

STEDI™ G9 Marine Ultra-Flood LED Light

Maximum 9-LED power with an extreme 80° ultra-diffused beam. Delivering a colossal 9,000 raw lumens (6,900 tested) across an 80° spread, the STEDI™ G9 Marine Ultra-Flood Light is engineered to completely saturate large decks, flybridges, commercial vessels, and working transoms with smooth, wall-to-wall light.

Key Highlights

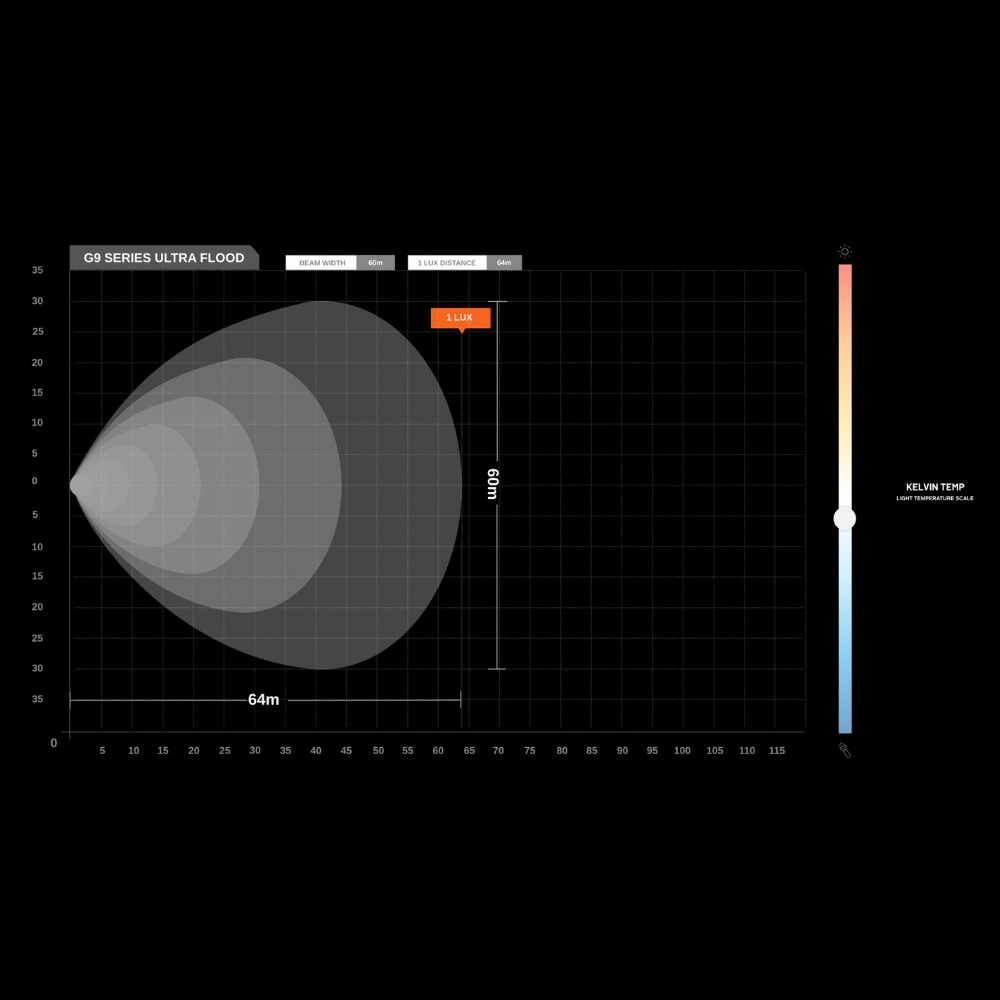

• Extreme 80° Ultra-Wide Beam: Optimized for total area diffusion, distributing light both laterally and vertically to create a massive 60-meter wide by 64-meter long flood zone at 1 LUX without harsh directional intensity or glare.

• Pro-Grade 9-LED Architecture: Driven by 9x 10W high-efficiency CREE XP-L2 LEDs, providing immense daylight-white output designed for heavy-duty commercial and recreational marine applications.

• Corrosion-Proof Marine Spec: Built with an isolated earth, tinned marine wiring, 316 stainless steel bracket and fasteners, and a heavy-duty AkzoNobel™ marine powder-coated die-cast housing.

• Maximum Heavy-Duty Protection: IP68 and IP69K rated for complete dust sealing and maximum water ingress defense against high-pressure, high-temperature washdowns. Tested to withstand 30G shock loads and 5G continuous vibration.

• Zero RF Interference: Certified to CISPR 25 Class 3 standards to eliminate electromagnetic noise that could interfere with VHF radios, GPS, radar, or marine navigation systems.

• Natural 5700K Daylight Spectrum: Emits a natural white beam tuned to enhance visibility and contrast while keeping eye strain and glare to a minimum.

• 12V & 24V System Compatibility: Operates smoothly across both 12V and 24V marine setups with a current draw of 7.2A at 13.5V.

Technical Specifications

What’s Included in the Box

• 1x STEDI™ G9 Marine Ultra-Flood Light

• 1x STEDI™ Protective Black Cover

• 1x 316 Stainless Steel Mounting Bracket

• 1x Stainless Steel Hardware Set

• 1x 2-Pin Male Connector
