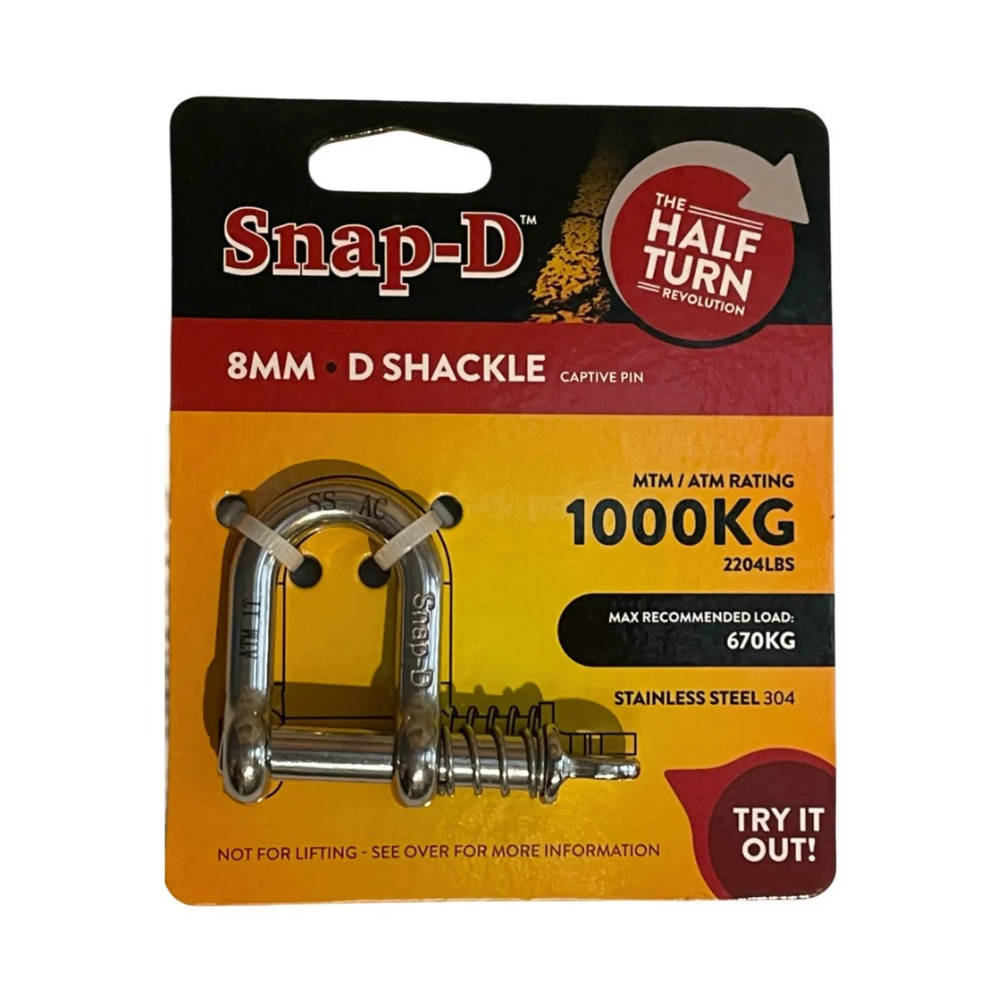

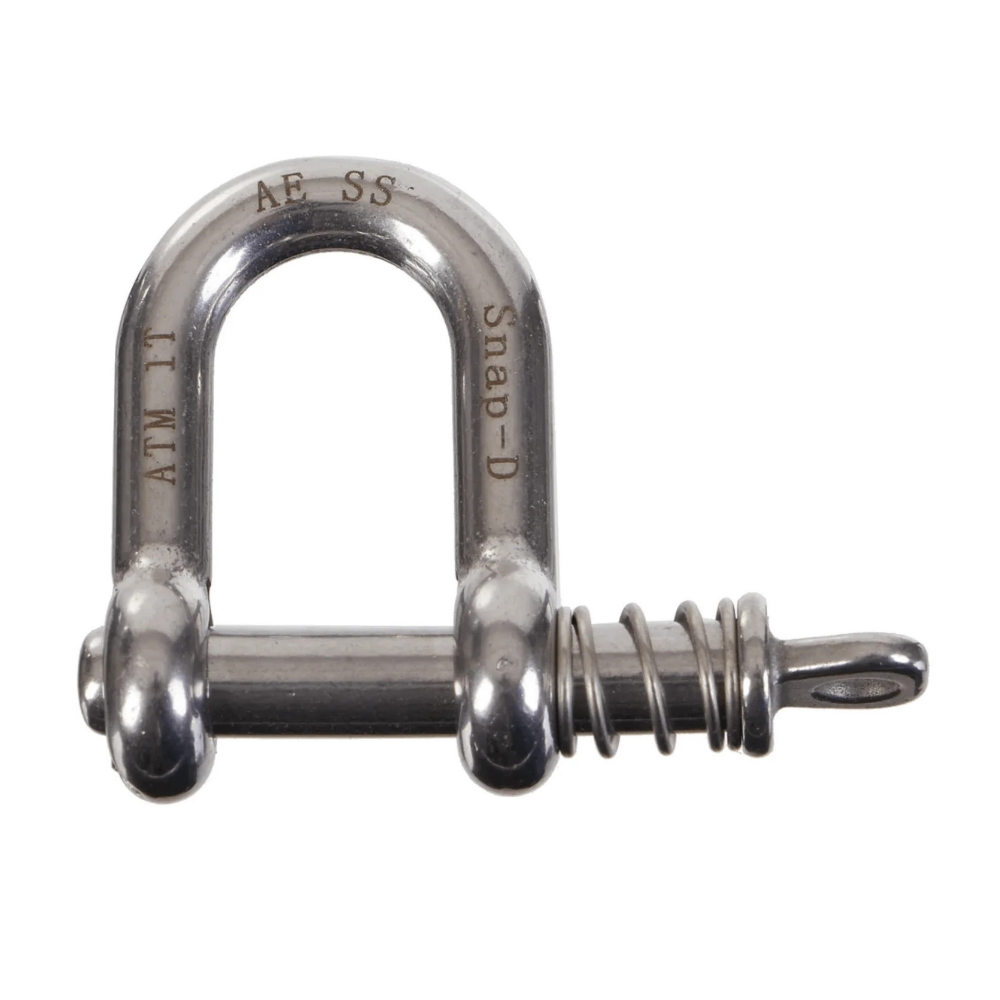

Compact, rust-free, and dead simple to use, the Snap-D 8mm D Shackle is the ultimate lightweight towing and utility solution. Nicknamed the "little tacker" of the Snap-D lineup, this shackle packs genuine 1000kg ATM towing performance into an ultra-compact footprint, making it the perfect upgrade for light trailers, dinghies, jet skis, and marine tie-downs.
Eliminate the frustration of jammed threads, dropped pins at the boat ramp, and messy pliers. Utilizing Snap-D’s patented spring-loaded captive pin mechanism, you can connect or release your safety gear in under two seconds with a simple push and half-turn. Forged from premium 304 marine-grade stainless steel, it delivers total corrosion resistance without flaking, seizing, or binding.
Key Features & Benefits
-
Patented Half-Turn Release: No tedious screw threads to cross, strip, or bind. Push the pin inward, twist 180°, and lock securely in place.
-
Captive Pin System: The locking pin stays anchored within the shackle body when opened, guaranteeing you’ll never drop or lose a pin in the sand, mud, or water.
-
Marine-Grade 304 Stainless Steel: Solid stainless steel body and internal spring withstand constant saltwater exposure, road grime, and UV radiation without rusting or deteriorating.
-
Road-Legal & Compliant: Permanently stamped with its 1000kg ATM rating on the shackle leg, meeting Australian Towing Standards (AS 4177:2004) and New Zealand regulations for peace of mind on the road.
-
Ultra-Versatile Pocket Size: Lightweight and compact enough to keep on your key ring, tackle box, or utility belt—ready for trailers, anchor lines, burley pots, and gear tie-downs.
Ideal Applications
-
Lightweight tinnies, dinghies, and inflatables (500kg–750kg rigs)
-
Jet ski and personal watercraft (PWC) single-axle trailers
-
Small garden haulers, motorbike trailers, and luggage trailers up to 1000kg ATM
-
Marine and outdoor utility: securing burley pots, dive bags, anchor chains, and farm gates
Specifications & Fitment

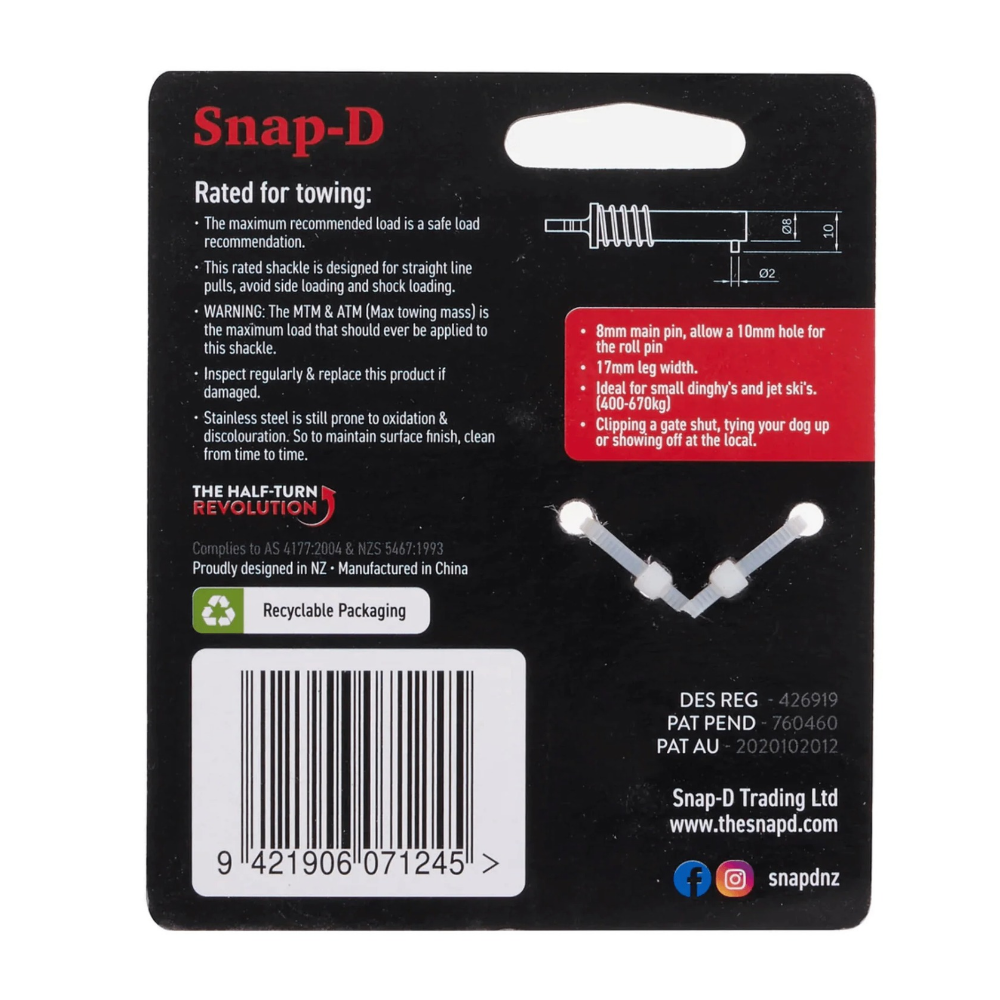

Fitment Note: Please allow 10 mm of clearance in your tow bar mounting hole or attachment point to ensure the captive roll pin passes through cleanly. Note: Suitable for straight-line safety chain towing up to 1000kg ATM; not certified for overhead lifting.
| Specification |
Dimension / Detail |
| Maximum Towing Capacity |
1000kg ATM (1.0 Tonne) |
| Main Pin Diameter |
8mm |
| Internal Leg Width |
17mm |
| Material |
Marine-Grade 304 Stainless Steel |
| Mechanism |
Spring-Loaded Captive Pin (Half-Turn) |
| Standards Compliance |
AS 4177:2004 / NZS 5467 |
