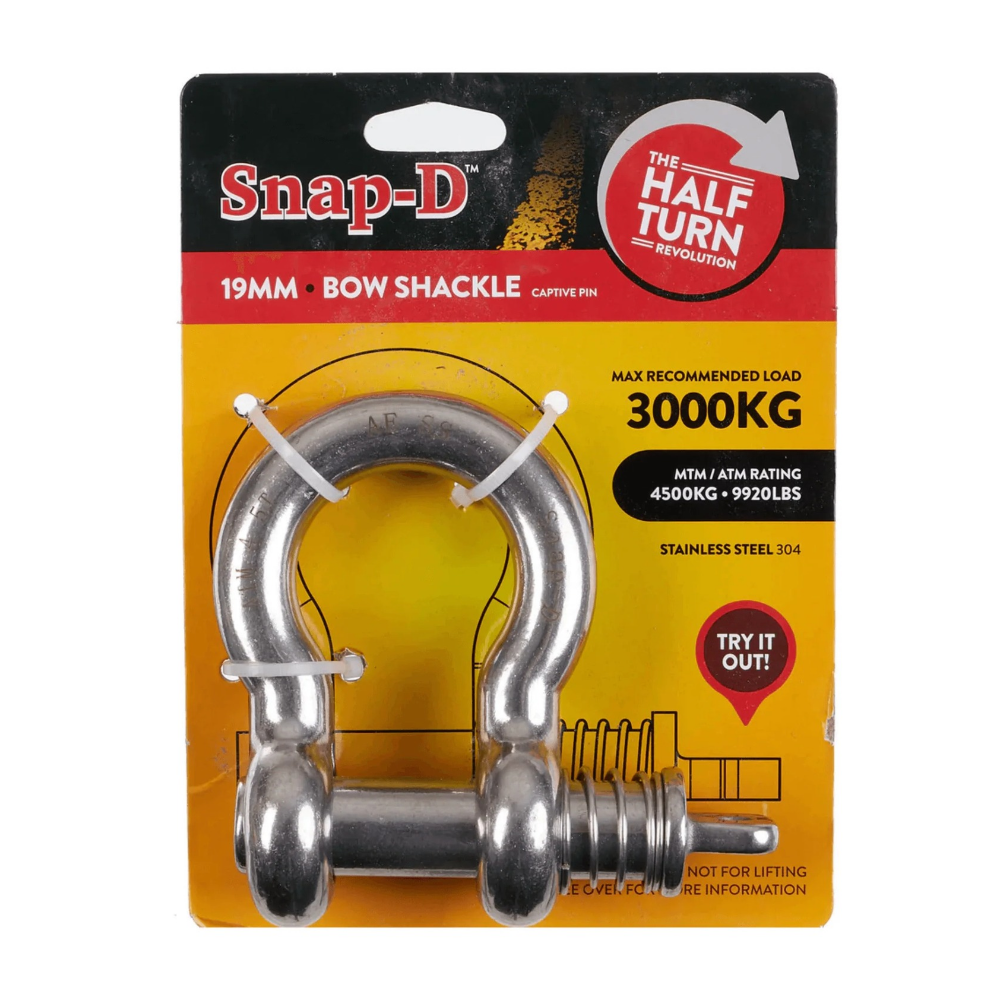

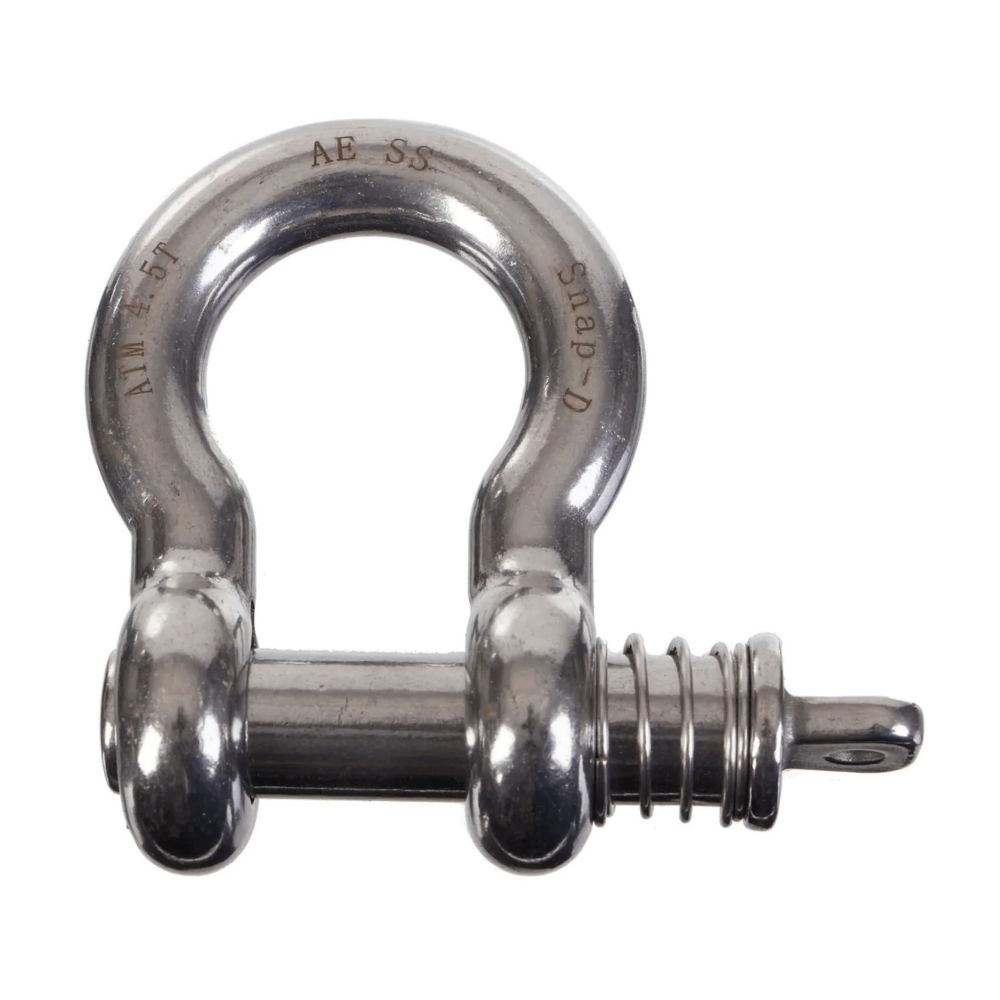

When maximum strength is non-negotiable, the Snap-D 19mm Bow Shackle steps up to the plate. As the largest bow shackle in the Snap-D range, it is purpose-built for heavy-duty towing, off-road recovery, and demanding industrial applications.
Say goodbye to seized threads, rusted pins, and dropped components. Featuring Snap-D’s patented spring-loaded, captive pin design, this shackle allows you to securely attach or detach your gear with a simple push, half-turn, and release. Paired with a generous bow shape to accommodate large chains and heavy straps, it’s the ultimate time-saving hardware for serious loads.
Key Features & Benefits
-
Patented Half-Turn Release: No threads to cross, bind, or seize. Just push, twist, and release for lightning-fast operation—even with cold hands or thick gloves.
-
Captive Pin Design: The pin stays permanently housed in the shackle body when opened, so you will never drop or lose a pin again.
-
Marine-Grade Durability: Forged from premium 304 Stainless Steel for exceptional rust and corrosion resistance in marine, agricultural, and off-road environments.
-
Oversized Bow Design: The wider "O" shape of the bow provides essential extra room for oversized chain links, thick recovery straps, and heavy-duty winching gear.
-
Heavy-Duty Rating: Tested and rated for a massive 4500kg ATM (Aggregate Trailer Mass) towing capacity.
Ideal Applications
-
Large tandem and tri-axle trailers
-
Heavy-duty boat and car trailers
-
4WD off-road recovery and winching
-
Agricultural and industrial equipment
Specifications & Fitment

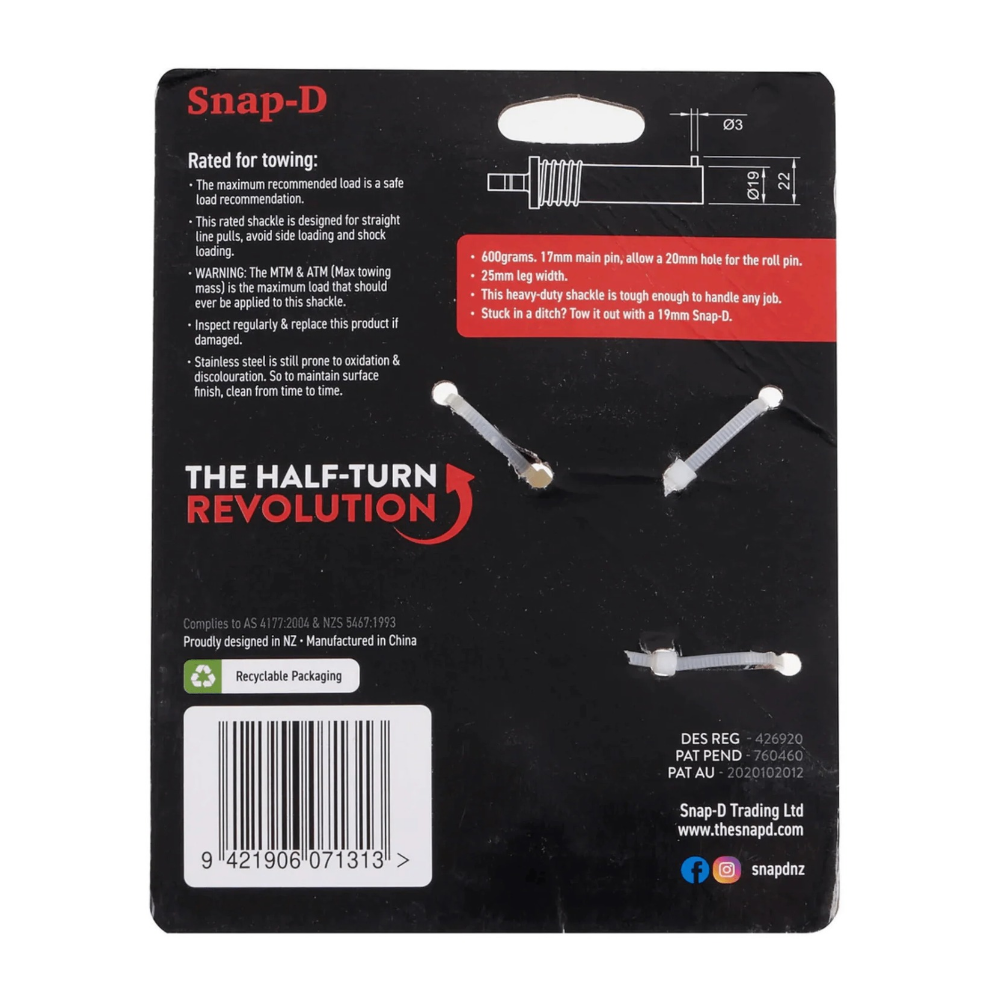

Fitment Note: Please allow approximately 21mm of clearance for the roll pin to pass through your tow bar mounting hole. Note: Snap-D retaining clips are not compatible with 17mm and 19mm shackles due to the larger chain sizes typically required for these capacities.
| Specification |
Dimension / Detail |
| Maximum Towing Capacity |
4500kg ATM |
| Material |
Premium 304 Stainless Steel |
| Main Pin Diameter |
19mm |
| Internal Leg Width |
25mm |
| Design Type |
Captive Pin / Threadless |
| Approximate Weight |
600g |
