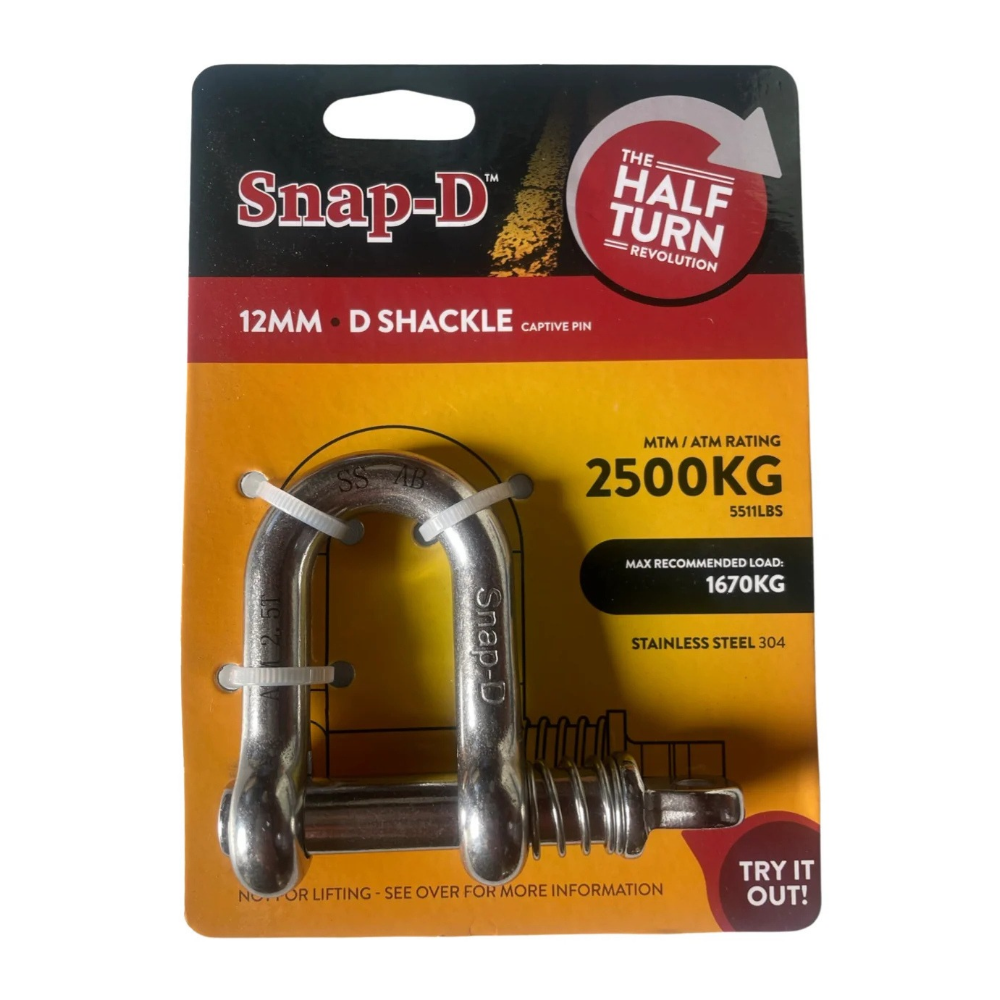

Upgrade your towing setup and eliminate the hassle of seized threads, rusted pins, and lost hardware. The Snap-D 12mm D Shackle is the go-to heavy-duty all-rounder in the Snap-D range, engineered to deliver reliable strength, effortless operation, and complete road-legal compliance for trailers up to 2500kg ATM.

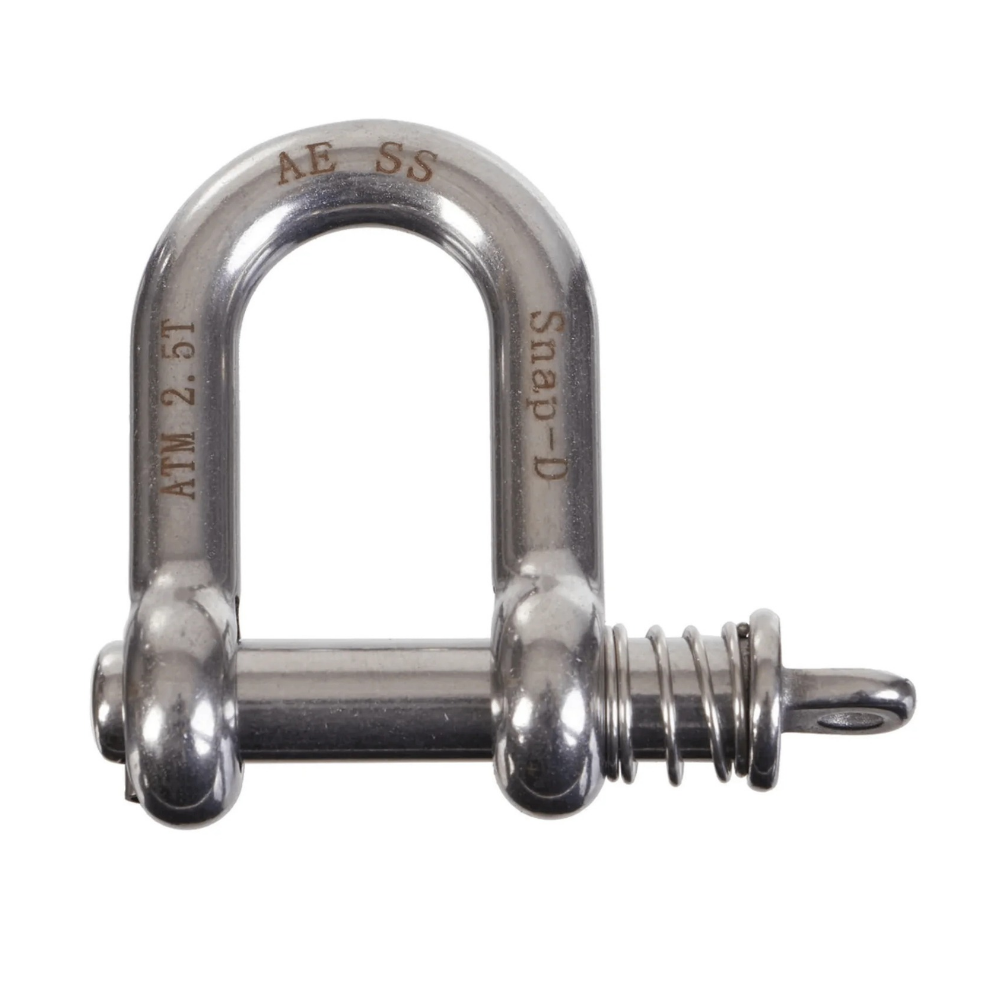

Forged from premium marine-grade 304 stainless steel, this shackle features Snap-D’s patented spring-loaded captive pin system. With no threads to wind, cross, or corrode, hitching and unhitching takes just a simple push, half-turn, and release. With its clean D-profile and high load rating, it's the ultimate hassle-free shackle for tandem trailers, caravans, and boat rigs.
Key Features & Benefits
-
Patented Half-Turn Quick Connect: Forget fumbling with pliers or spanners to free frozen threads. Push in, rotate 180 degrees, and lock into place in seconds.
-
Captive Pin System: The pin remains permanently housed within the shackle body when opened, so it will never drop into the dirt, mud, or boat ramp water.
-
Marine-Grade 304 Stainless Steel: Solid stainless steel body and internal spring resist rust, salt corrosion, and road grit, keeping your hitch looking clean and working smoothly season after season.
-
Transport & Road-Legal Compliant: Stamped with its 2500kg ATM rating directly on the shackle leg, meeting Australian (AS 4177) and New Zealand towing standards for hassle-free roadside inspections.
-
Anti-Theft Ready: Fully compatible with Snap-D retaining clips to secure the shackle directly to your safety chain and prevent theft when parked.

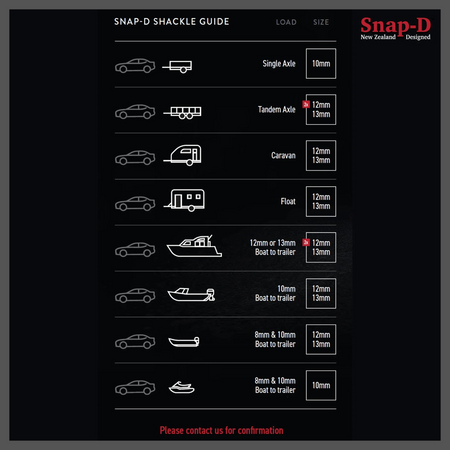

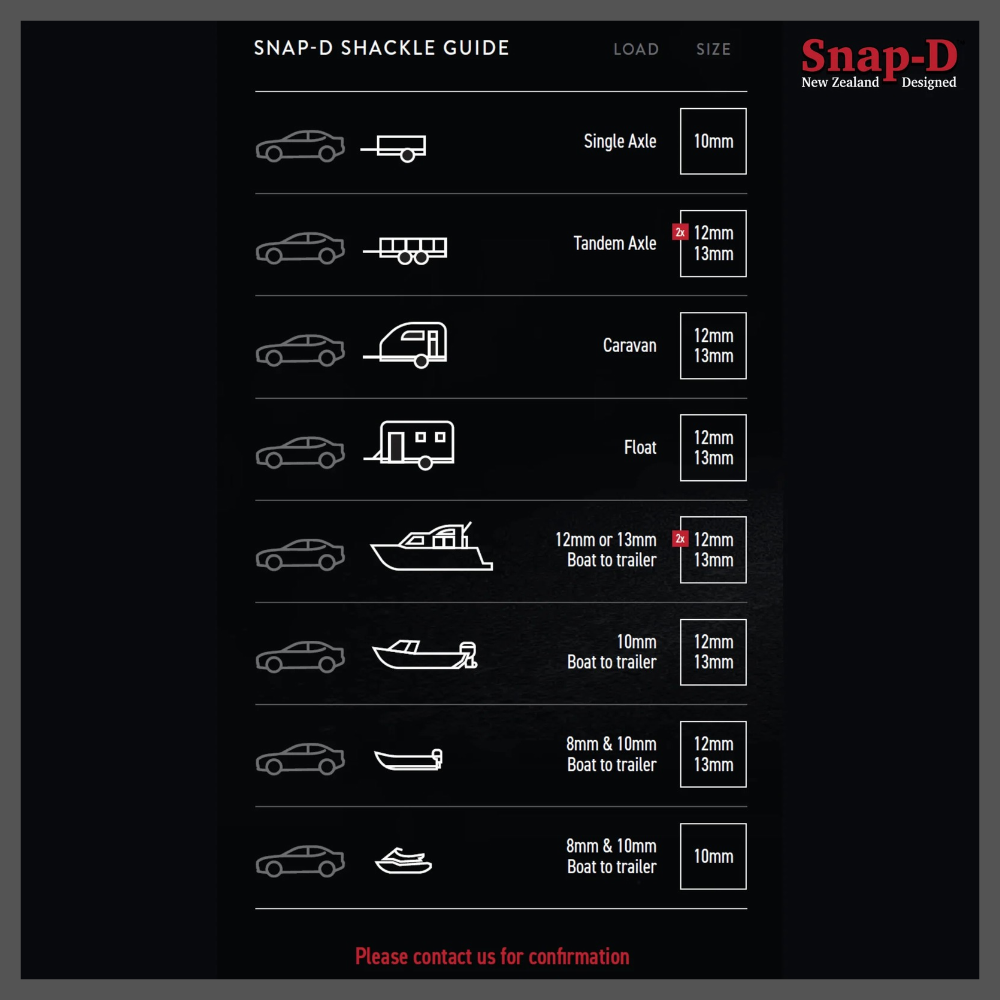

Ideal Applications
-
Tandem-axle trailers (1500kg to 2500kg ATM)
-
Large boat trailers and offshore fishing rigs
-
Medium to heavy caravans and camper trailers
-
Horse floats and livestock trailers
-
Heavy-duty tradie trailers and equipment haulers
Specifications & Fitment
Fitment Note: Please allow 14 mm – 15 mm of clearance in your tow bar mounting hole to ensure the retaining roll pin passes through smoothly. Note: For trailers exceeding 2.5T ATM with dual chains, Australian regulations require two compliant shackles, each rated for the trailer’s full gross weight.
| Specification |
Dimension / Detail |
| Maximum Towing Capacity |
2500kg ATM (2.5 Tonne) |
| Main Pin Diameter |
12mm |
| Internal Leg Width |
23mm |
| Material |
Premium 304 Stainless Steel |
| Locking Mechanism |
Spring-Loaded Captive Pin (Half-Turn) |
| Standards Compliance |
AS 4177 / AS 2741 / NZS 5467 |
