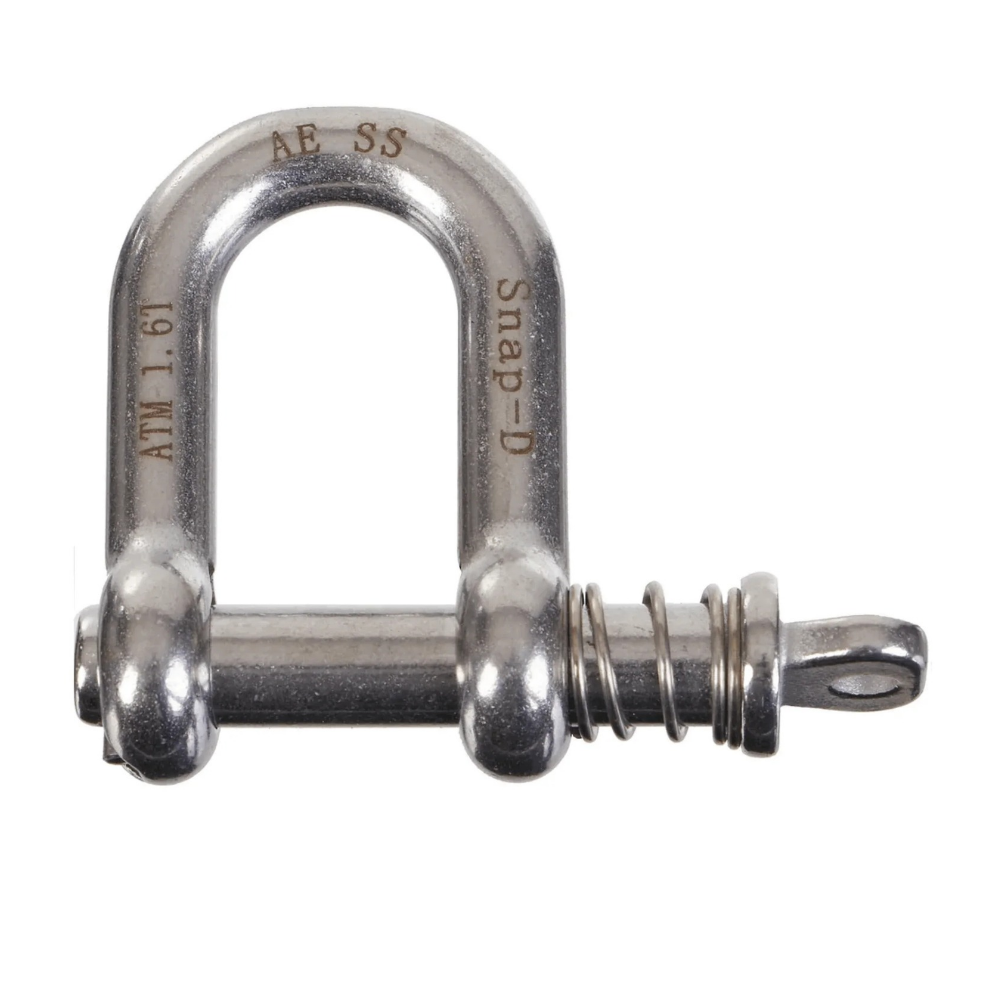

Say goodbye to seized threads, lost pins, and rusty towing hardware. The Snap-D 10mm D Shackle is the ultimate everyday towing staple, delivering the perfect balance of strength, compliance, and convenience for single-axle trailers up to 1600kg ATM.
Featuring Snap-D’s patented spring-loaded captive pin design, this shackle completely eliminates the frustration of conventional screw pins. There are no threads to strip, cross, or seize up from dirt and road grime—just a simple push, half-turn, and snap to secure your safety chains in seconds. Crafted from marine-grade stainless steel, it is built to survive harsh coastal and off-road conditions without ever letting you down at the ramp or on the job.
Key Features & Benefits
-
Patented Half-Turn Release: No tools, spanners, or pliers required. Simply press the pin and give it a quick 180° twist to lock or release your chain effortlessly.
-
Captive Pin Design: The locking pin stays securely retained within the shackle body when opened, ensuring you will never drop a pin in the sand, mud, or boat ramp water.
-
Premium Marine-Grade Stainless Steel: Engineered from heavy-duty 304 stainless steel with a stainless internal spring, resisting rust, road grime, and salt spray for years of reliable use.
-
Road & Transport Compliant: Clearly stamped with its ATM rating directly on the body, meeting Australian Towing Standards (AS 4177) and New Zealand regulations for stress-free roadside checks.
-
Anti-Theft Clip Compatible: Fully compatible with Snap-D Anti-Theft Retaining Clips, locking your shackle permanently to your safety chain to prevent opportunistic theft when parked.
Ideal Applications
-
Standard single-axle 6x4, 7x4, and 7x5 box trailers
-
Lightweight boat trailers, tinnies, and dinghies
-
Jet ski trailers and personal watercraft (PWC) setups
-
Trade trailers, lawn-mowing trailers, and small garden haulers
-
Camper trailers and lightweight pop-tops up to 1600kg ATM
Specifications & Fitment
Fitment Note: Please allow 12 mm – 13 mm of clearance in your tow bar mounting hole or hitch eye to ensure the roll pin passes through smoothly. Note: In Australia, safety shackles must match or exceed your trailer's Aggregate Trailer Mass (ATM).
| Specification |
Dimension / Detail |
| Maximum Towing Capacity |
1600kg ATM (1.6 Tonne) |
| Main Pin Diameter |
10mm |
| Internal Leg Width |
18mm – 20mm |
| Material |
Premium 304 Stainless Steel |
| Locking Mechanism |
Spring-Loaded Captive Pin (Half-Turn) |
| Standards Compliance |
AS 4177 / NZS 5467 |
