QUIKCRIMP YELLOW WATERPROOF HEAT SHRINK RING 5MM 25PK

QUIKCRIMP YELLOW WATERPROOF HEAT SHRINK RING 5MM 25PK

SKU: SUR/RW5-5

$53.81 - $53.81
$53.81
$53.81 - $53.81
$53.81
In Stock

Click & Collect Available

Order online and collect within 2 hours during business hours.

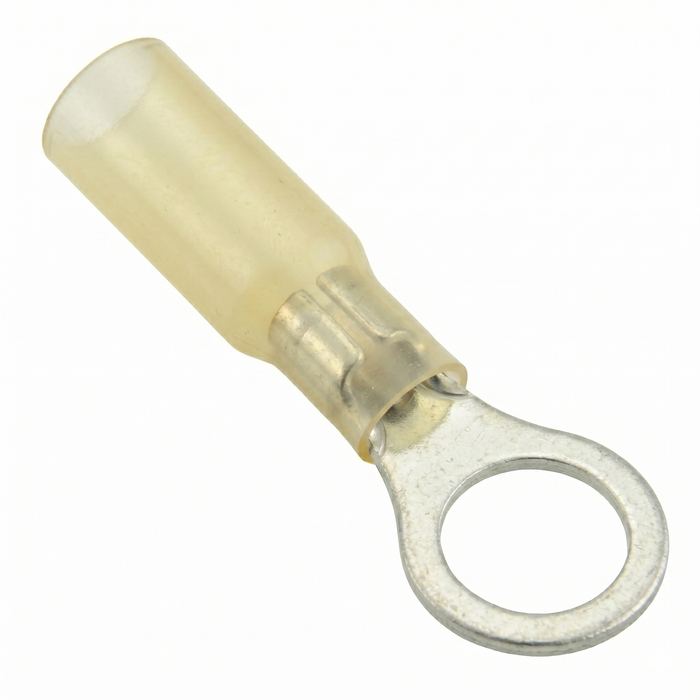

Waterproof Yellow Heat Shrink Ring Terminals | 5mm Stud (25 Pack)

Seal out moisture, dust, and environmental salt while establishing a permanent, high-integrity mechanical connection with this premium 25-pack of Yellow Heat Shrink Ring Terminals. Engineered explicitly for a 5mm stud (M5) and accommodating larger, high-current 4.0mm² to 6.0mm² cable sizes (12–10 AWG), these heavy-duty connectors combine a robust copper ring terminal with an advanced heat-shrinkable insulation jacket.

The translucent polyolefin tubing features an internal, heat-activated adhesive glue lining. When heated, the outer tubing shrinks down to form a tight, strain-relieved wrap around your wire insulation, while the internal glue flows to completely seal the connection to an IP67 waterproof rating.

Key Features

  • Ultimate Environmental Protection: Moisture-proof, adhesive-lined jacket prevents the onset of wire corrosion, making it perfect for critical marine, automotive, and outdoor wiring applications.

  • Premium Tin-Plated Copper: The terminal body is crafted from high-conductivity copper and electroplated with tin for superior longevity and resistance to atmospheric oxidation under higher electrical loads.

  • Translucent Structural Sleeve: Semi-transparent insulation allows for an immediate visual check, ensuring your heavy-gauge wire strands are perfectly inserted before you apply the crimping tool.

  • Heavy-Duty Strain Relief: The adhesive-lined heat shrink firmly grips thick-walled wire jackets, dispersing physical strain and preventing pull-outs caused by heavy vibration or pulling forces.

  • Handy 25-Piece Pack: Packaged in a convenient 25-count quantity, making it the ideal choice for specialized projects, diagnostic repairs, or high-current electrical upgrades.

Technical Specifications

Feature Specification
Terminal Type Waterproof Heat Shrink Ring Terminal
Insulation Color Yellow (Industry standard for 4.0 – 6.0mm² / 12–10 AWG)
Insulation Material Adhesive-lined dual-wall Polyolefin (Heat Shrinkable)
Stud Size 5mm (M5)
Pack Quantity 25 Pieces
Cable Compatibility 4.0mm² to 6.0mm²
Shrink Ratio 3:1 (For a tight, seamless contour around heavy-gauge wire jackets)
Protection Rating IP67 (Dust-tight and completely waterproof)

Applications

Engineered specifically to survive high-current demands in harsh under-bonnet, marine, and external chassis environments:

  • Heavy-duty marine grounding blocks, main fuse feeds, and high-draw pumps

  • Engine bay accessory wiring (dual battery charge circuits, main relay feeds, and compressor power)

  • High-current exterior 4WD accessories, winches, and solar controller feeds

  • Agricultural equipment, heavy machinery, and outdoor industrial power distribution
