Pretech Steerflex SF-175 Outboard Hydraulic Steering Kit (115 HP to 175 HP)

Australia Stock: 10 available
Click & Collect - Ready within 2 business hours
Same-Day Dispatch – Express orders before 1pm

RRP

$1,155.75 AUD inc. GST
Product Add-ons
Outboard Parts Dry Snapback Hat
Outboard Parts Dry Snapback Hat
$29.94 AUD inc. GST
Product details
  • Vendor PRETECH
  • SKU PRE SF175

Do you have questions about this product?

Ask an expert!

Description Shipping information

Product Overview & Specifications

  • Max Horsepower Rating: Outboard engines from 115 HP up to 175 HP (Single Engine Application).

  • Lock-to-Lock Steering Turns: 5.6 Turns.

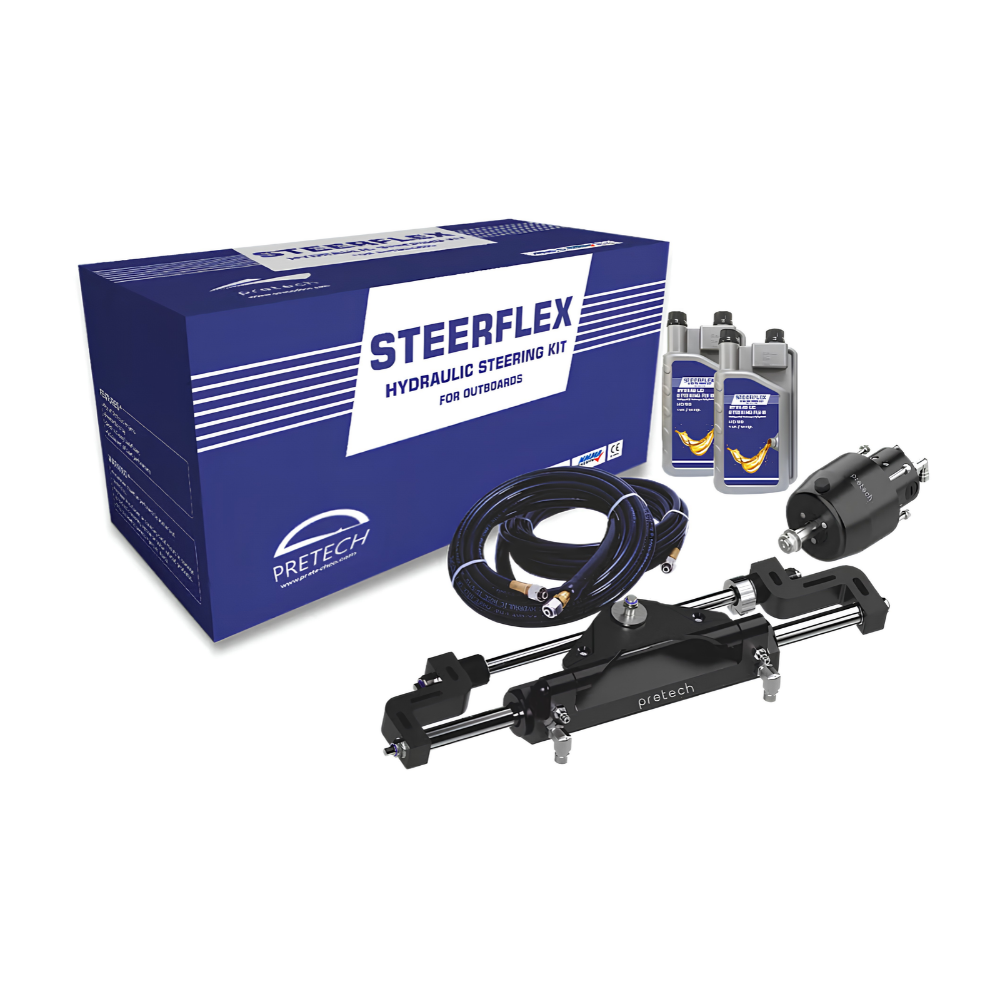

  • Included Components:

    • Helm Pump: 1x KH22 Front Mount Hydraulic Helm Pump (22 cc).

    • Steering Cylinder: 1x KC-175 Front Mount Cylinder.

    • Hose Set: 2x CH-75 (7.5 m) Hydraulic Hoses with factory-crimped fittings.

    • Hydraulic Oil: 2 Liters KO Hydraulic Steering Fluid.

  • Cylinder Specifications (KC-175):

    • Displacement Volume: 123 cc.

    • Output Force: 422 kg.

    • Stroke Length: 204 mm.

    • Weight: 4.5 kg.

    • Port Threads: 9/16" UNEF.

  • Helm Pump Specifications (KH22):

    • Displacement Volume: 22 cc.

    • Relief Pressure: 70 / 105 Bar.

    • Shaft Type: Standard 3/4" Tapered Shaft.

  • Splashwell Clearance Requirements:

    • Width (A): Minimum 21" (535 mm).

    • Depth (B): Minimum 6" (153 mm).

    • Height (C): Minimum 5" (127 mm).

Engine Model Compatibility

  • Honda: 30–50 HP 4-Stroke, 75–90 HP 4-Stroke, 100 HP 4-Stroke, 115 HP 4-Stroke, 135–150 HP 4-Stroke (1992–Date).

  • Yamaha: 40–90 HP 2-Stroke, 25–70 HP 4-Stroke, 80–115 HP 4-Stroke, 90–115 HP A & B Series, high-performance engines up to 175 HP.

  • Mercury / Mariner: 40–60 HP 2-Stroke, 40 HP & 60 HP 4-Stroke, 75–115 HP, outboards up to 175 HP.

  • Suzuki: 40–70 HP 4-Stroke, 90–115 HP 4-Stroke, 115 HP 2-Stroke, 150 HP 2-Stroke.

  • Johnson / Evinrude: 40–115 HP inc. E-Tec, 75–115 HP Ficht, 40–115 HP 4-Stroke.

  • Tohatsu: 40–114 HP 2-Stroke, 60–115 HP 4-Stroke.

  • Selva: 25–70 HP 4-Stroke, 90–115 HP 4-Stroke.

  • Neander Marine: Dtorque III 90 HP.
