10W Mini V2 Marine Edition LED Flood Light 5700k (diffused)

10W Mini V2 Marine Edition LED Flood Light 5700k (diffused)

SKU: ST-07-10W-311

$45.00 - $45.00
$45.00
$45.00 - $45.00
$45.00
In Stock

Click & Collect Available

Order online and collect within 2 hours during business hours.

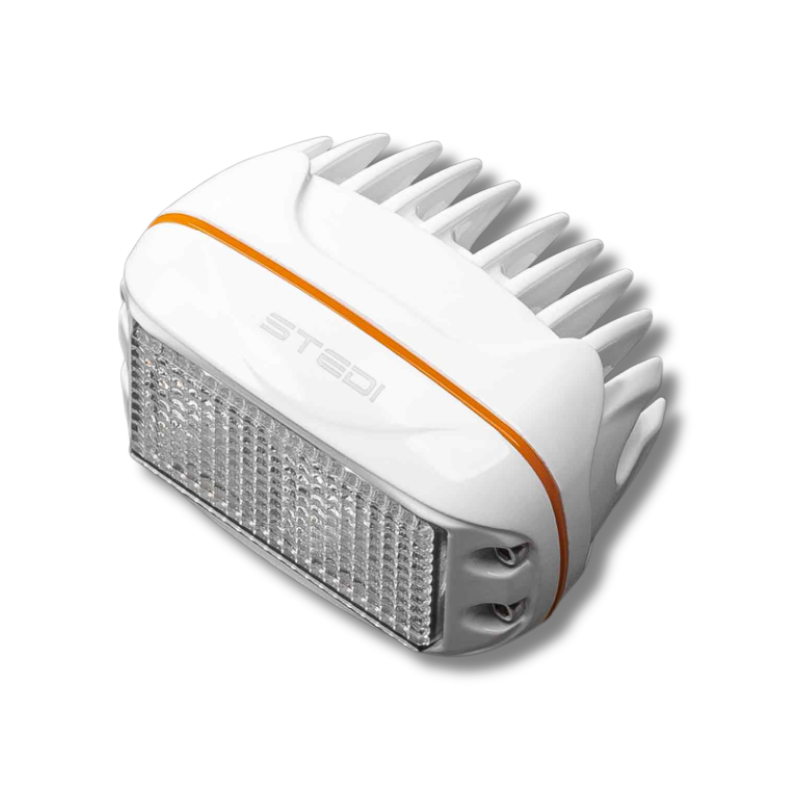

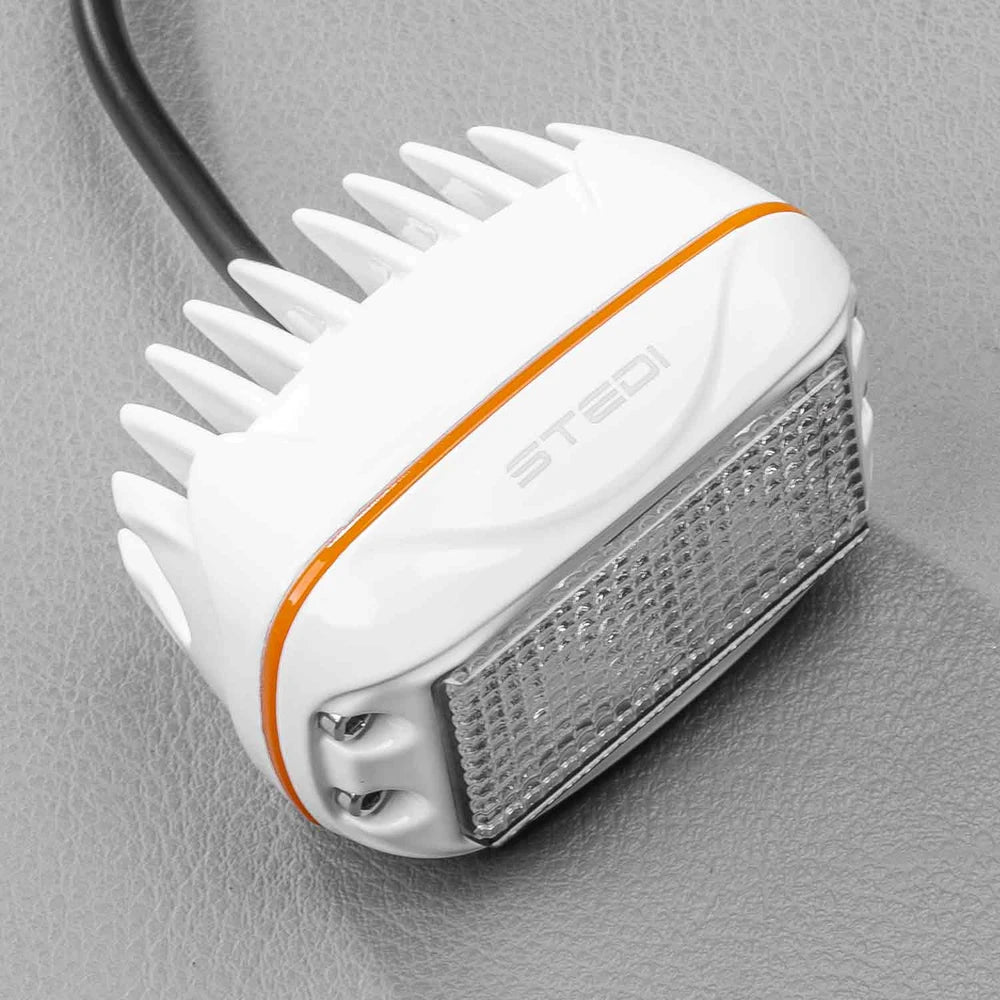

The STEDI 10W Mini V2 Marine LED Flood Light (5700K) is a compact powerhouse designed for boaters who need high-intensity illumination in a discreet, small-form factor. Despite weighing only 300g, this light delivers a "punch above its weight" performance, making it a favorite for everything from deck lighting to reverse lights.

Compact Power & Performance

Don't let the size fool you—the Mini V2 is engineered for maximum output with minimal draw:

  • Osram™ GmbH Emitters: Features 2 x 5W high-output Osram LEDs that produce 1,000 raw lumens of crisp, white light.

  • 5700K Daylight Spectrum: The 5700K color temperature provides a clean, neutral white light that improves visibility and reduces eye strain during night-time operation.

  • 40-Degree Wide Flood: The custom-engineered flood optics provide a wide, even spread of light, perfect for lighting up a boat's gunwales, bait board, or cabin interior.

  • Ultra-Low Current Draw: Drawing only 0.5A @ 13.8V, you can run multiple units simultaneously without worrying about your battery levels.

Built for the Marine Environment

STEDI has upgraded the V2 with even more durable components to handle the vibrations and corrosive nature of life on the water:

  • IP67 Waterproof Rating: Fully protected against dust and capable of withstanding immersion in water up to 1 meter for 30 minutes.

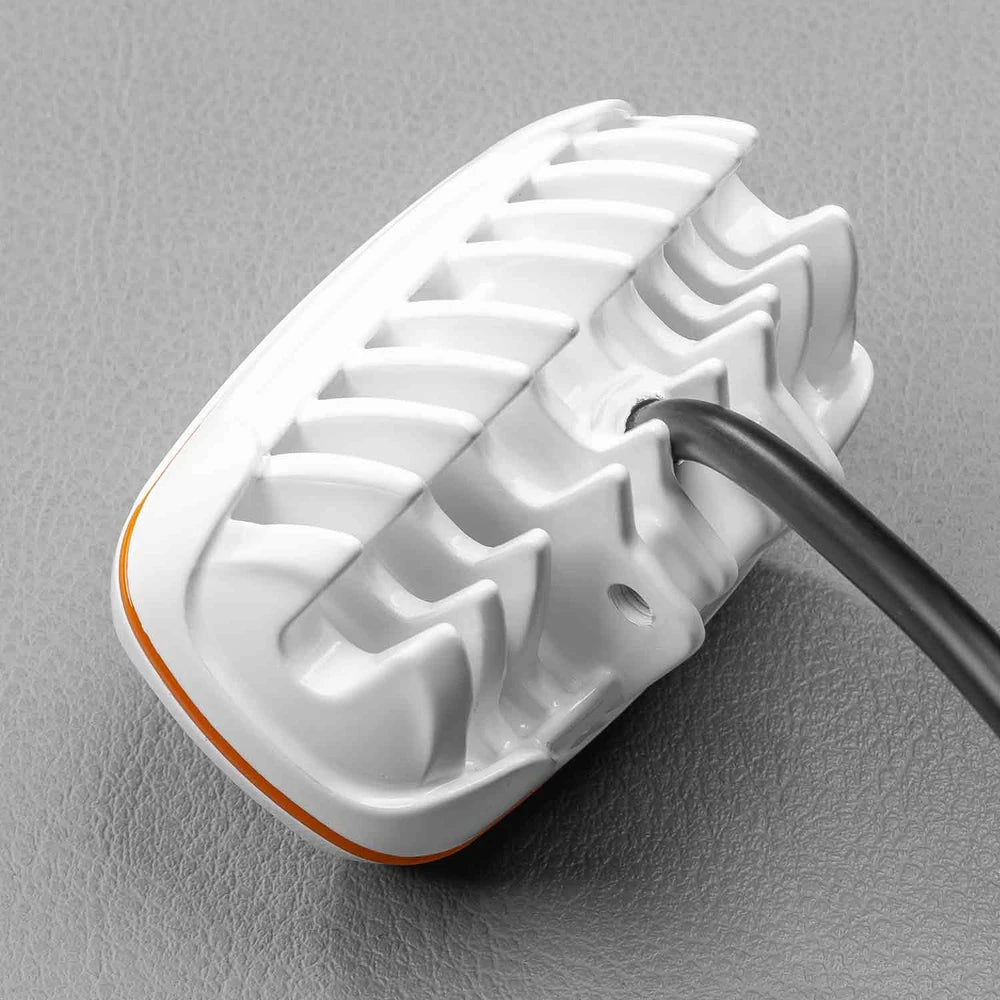

    Cast Aluminum Housing: The rugged housing acts as an efficient heat sink, ensuring the LEDs stay cool and maintain their 50,000+ hour lifespan.

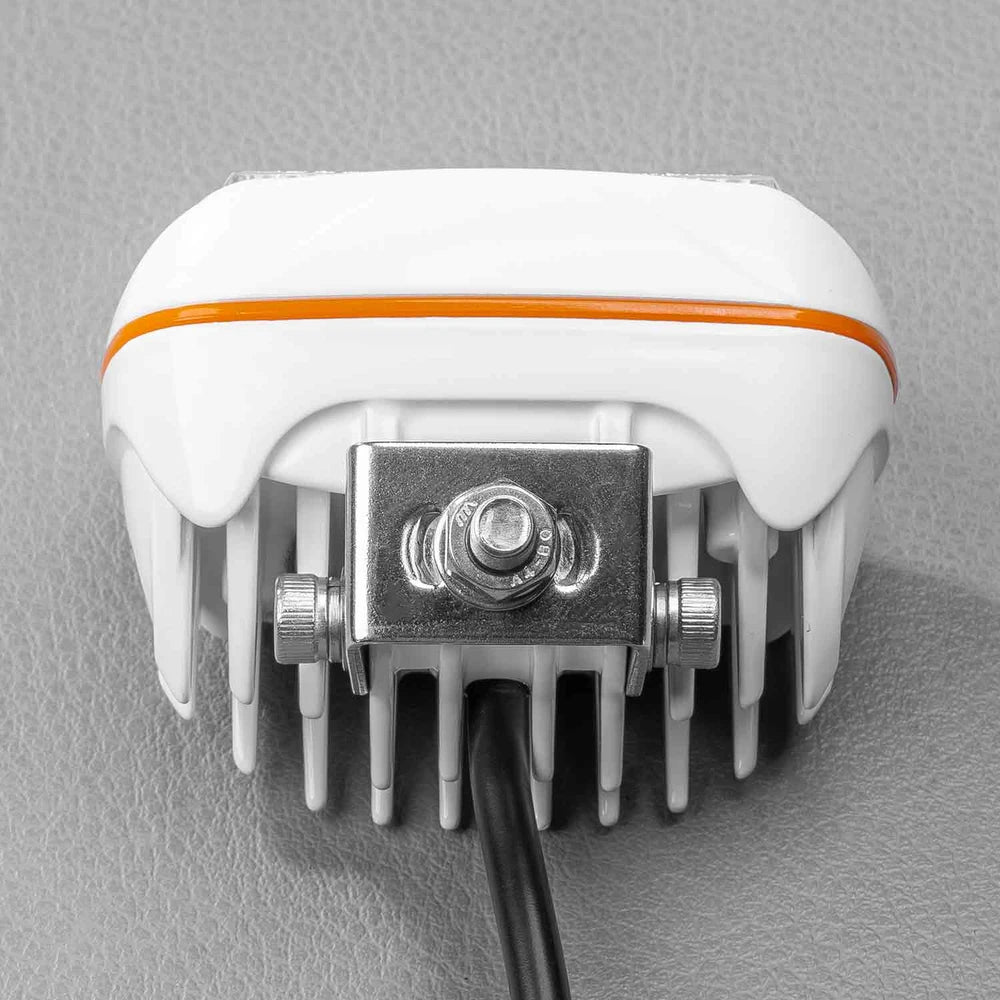

  • 304 Stainless Steel Hardware: Includes stainless steel mounting brackets and fasteners to ensure your setup remains rust-free.

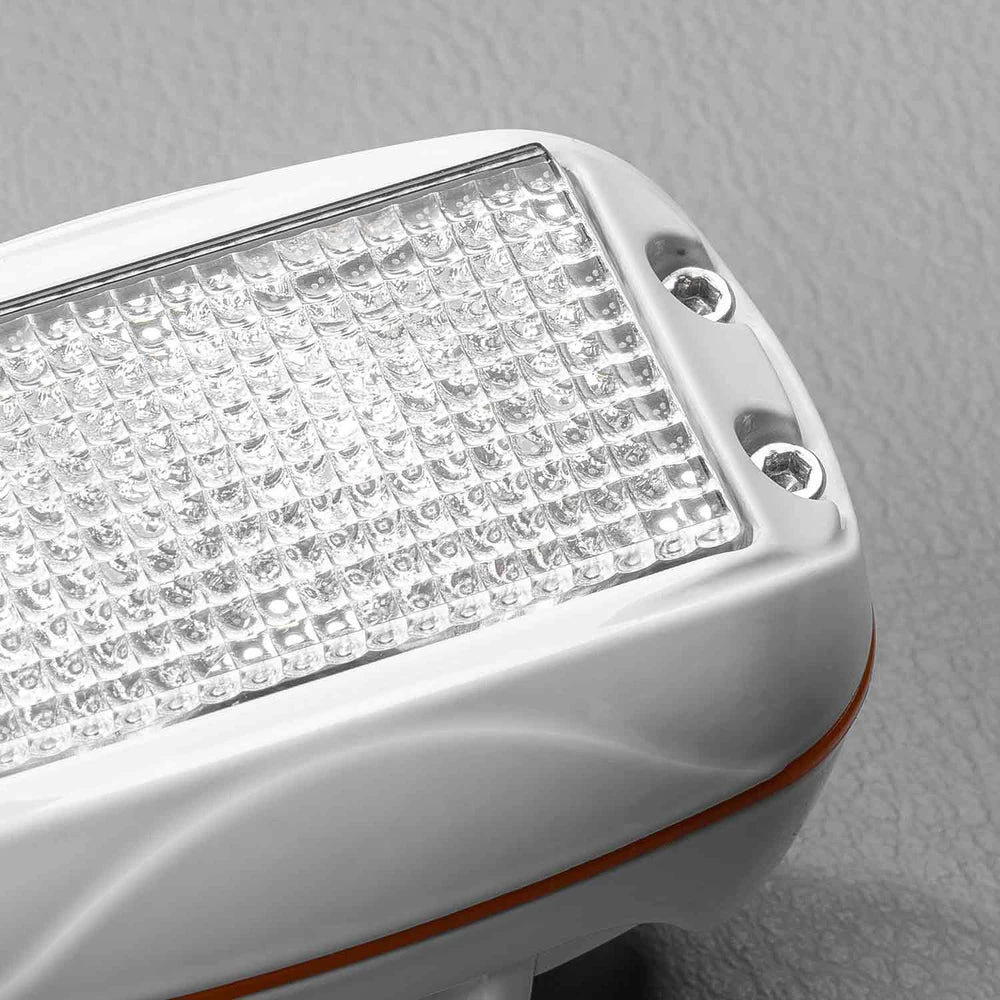

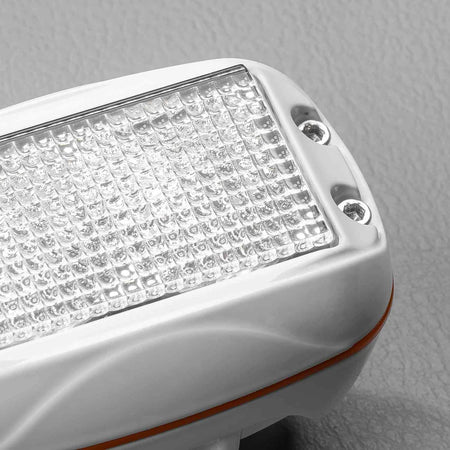

  • Optical PC Lens: The high-quality polycarbonate lens is impact-resistant and designed not to yellow or fade under intense UV exposure.

Installation & Versatility

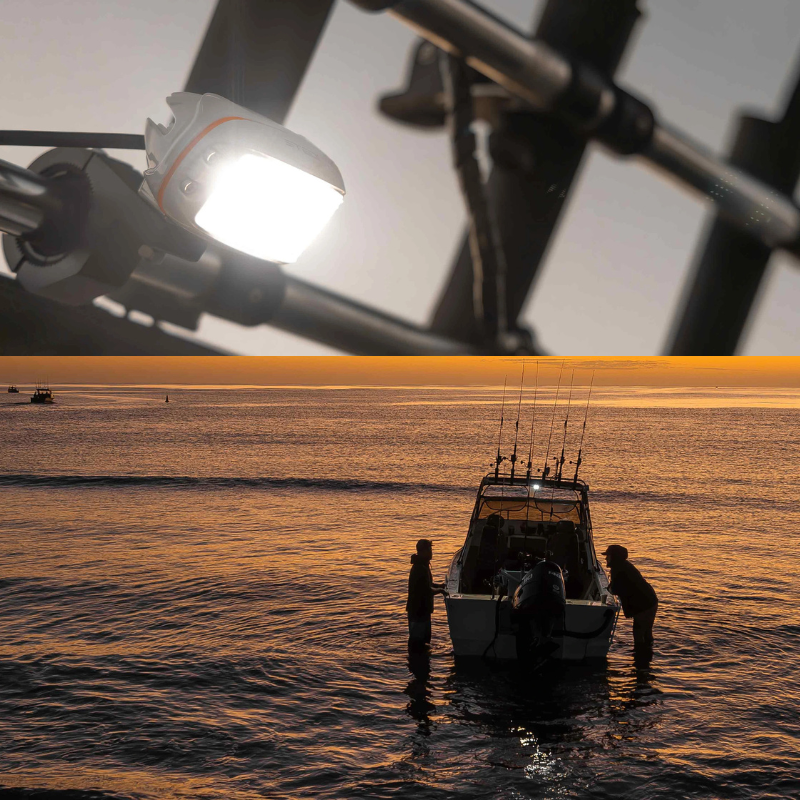

  • Endless Applications: Its tiny footprint (only 77mm wide) makes it ideal for mounting under T-tops, on rocket launchers, inside engine bays, or as a high-performance reverse light on a trailer.

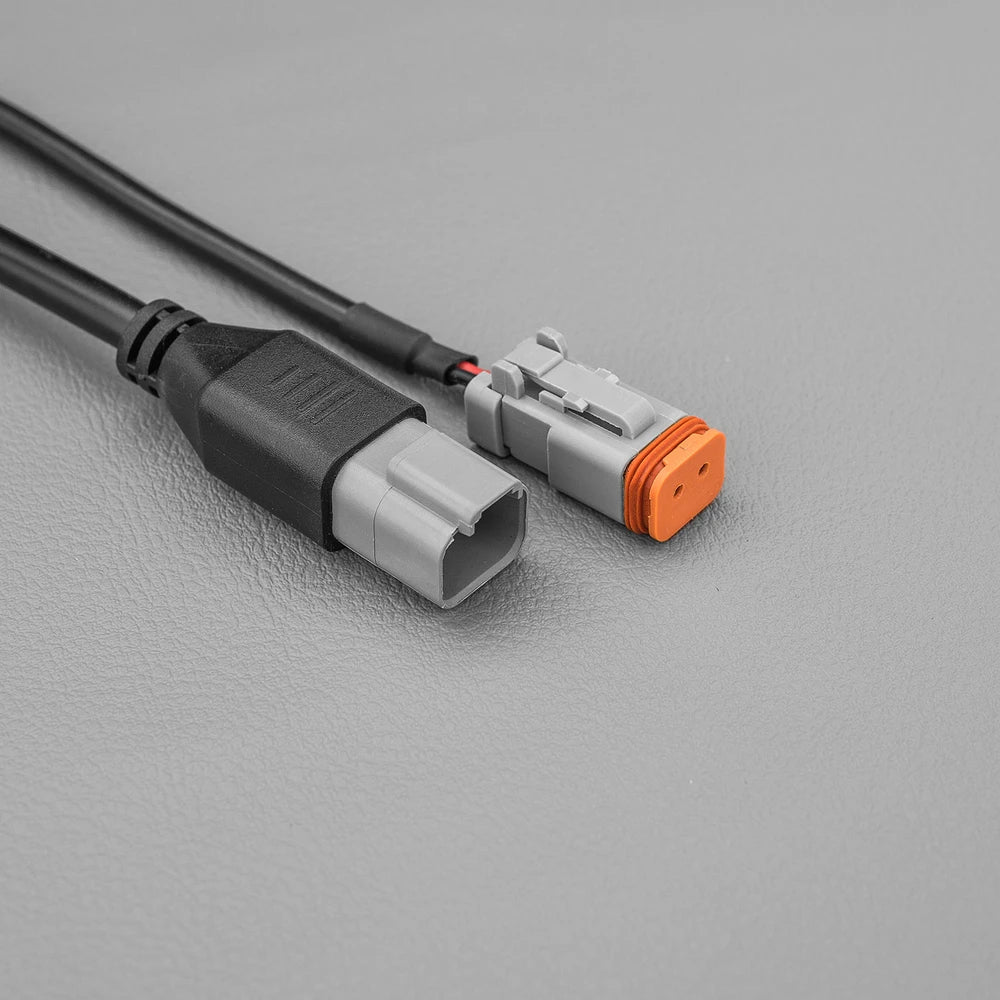

  • Plug-and-Play Wiring: Comes complete with waterproof male and female Deutsch connectors, allowing for a secure and professional electrical installation.

  • Multi-Voltage Compatible: Works on both 12V and 24V systems, making it suitable for anything from a small tinny to a large commercial vessel.

Technical Specifications

Feature Specification
SKU LEDMINI-OSRM-10W (or ST-07-10W-311 for Marine Edition)
Power 10W (2 x 5W Osram LEDs)
Raw Lumens 1,000 Lm
Current Draw 0.5A @ 13.8V
Voltage 9V - 32V
Beam Pattern 40-Degree Flood
Colour Temp 5700K
Weight 0.30kg
Dimensions 77mm (W) x 48mm (H) x 55mm (D)

What’s in the Box?

  • 1 x 10W Mini V2 LED Marine Flood Light (5700K)

  • Stainless Steel Mounting Bracket & Bolts

  • Male & Female Deutsch Connectors

The Bottom Line:

The STEDI 10W Mini V2 is the ultimate "utility" light for your boat. It’s small enough to hide anywhere but bright enough to transform your night-time boating experience.
