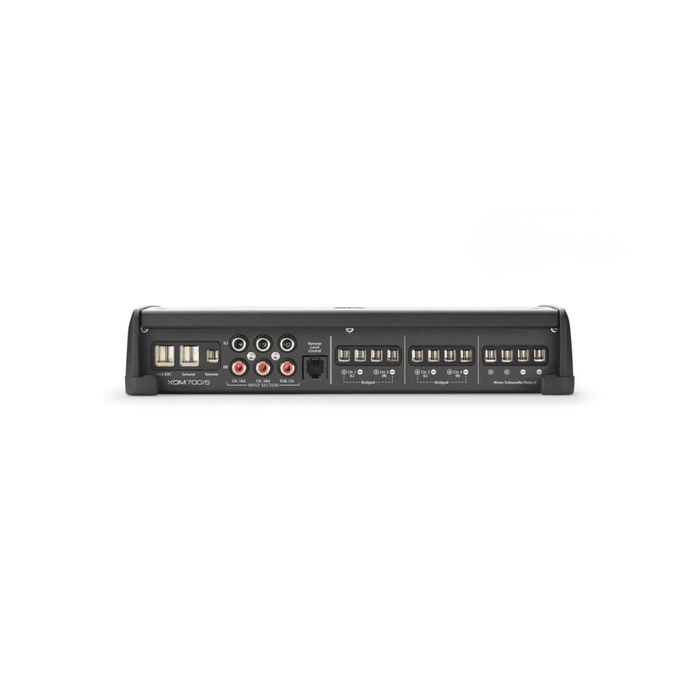

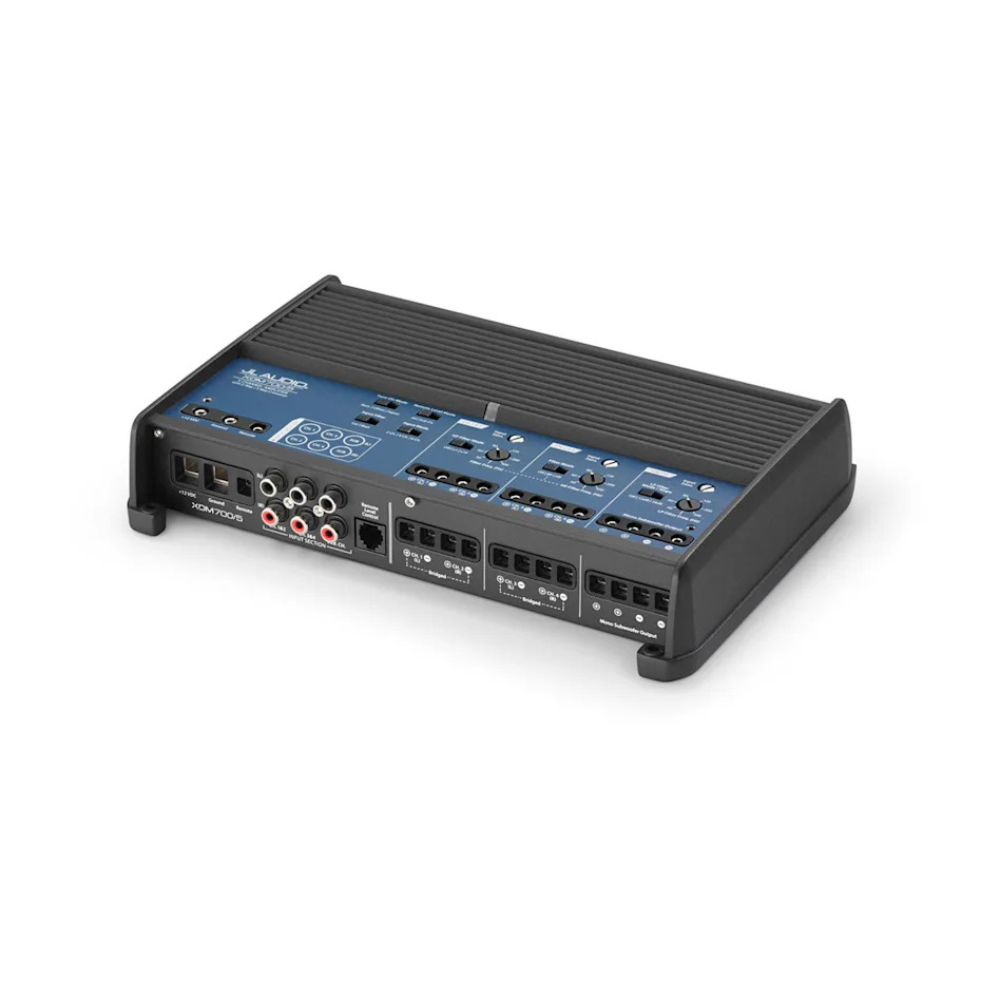

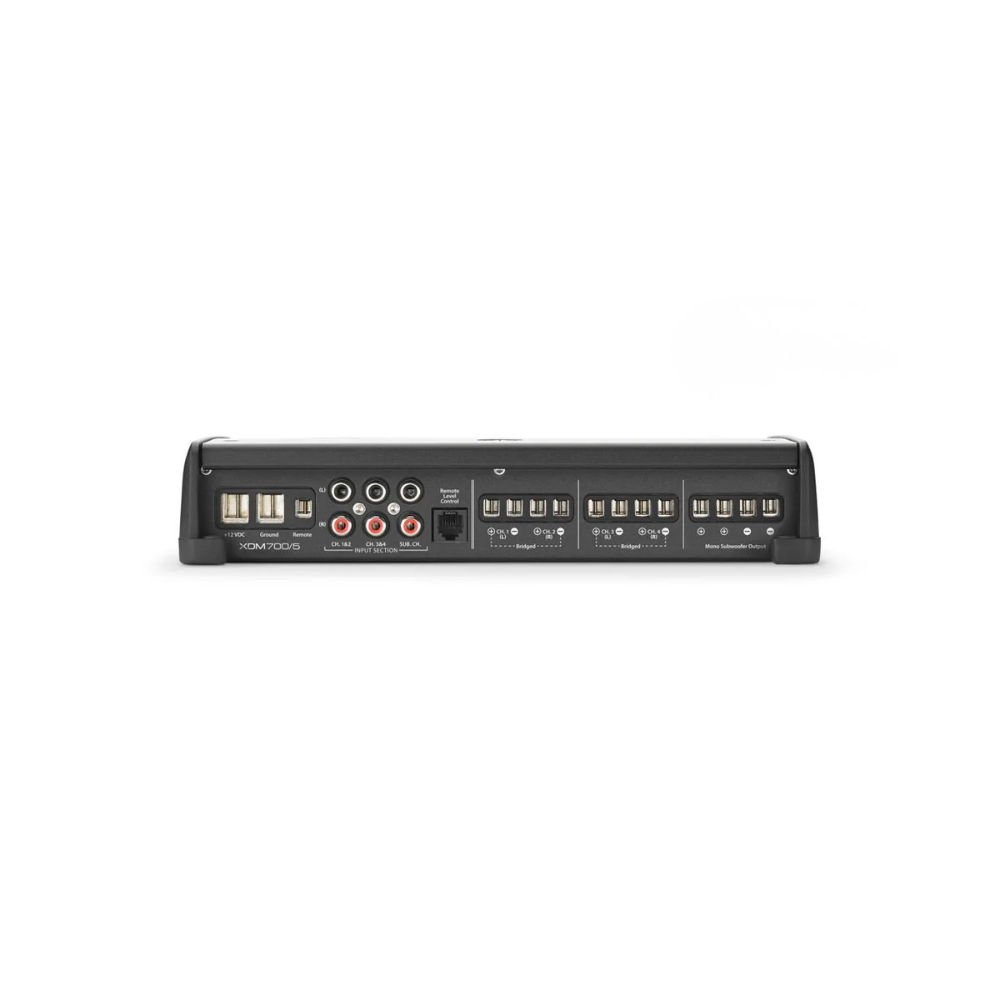

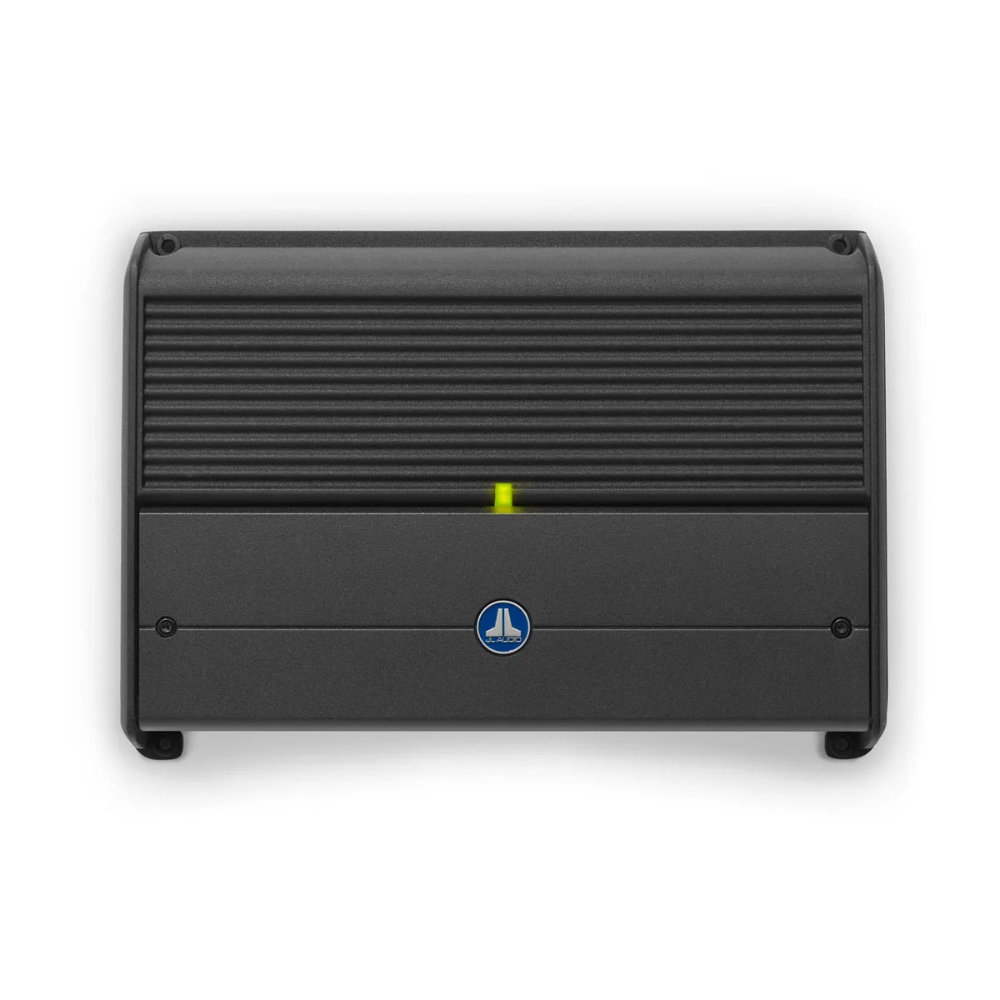

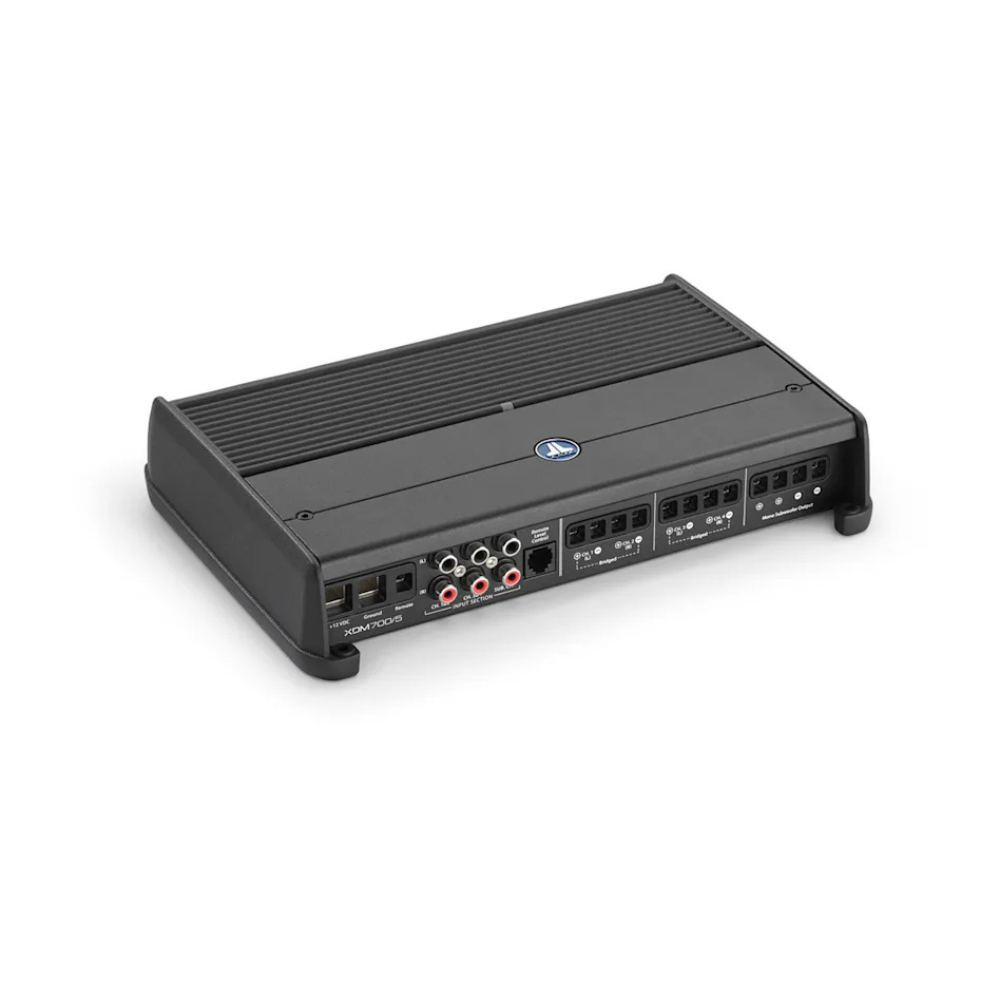

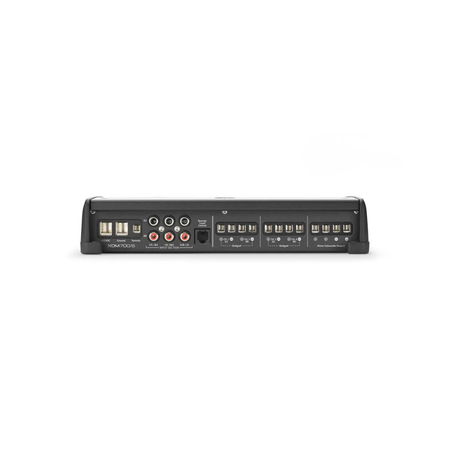

JL Audio XDM700/5 Marine and Powersports Amplifier 5 Channel

JL Audio XDM700/5 Marine and Powersports Amplifier 5 Channel

SKU 010-03118-00
$1,549.00 - $1,549.00
$1,549.00
$1,549.00 - $1,549.00
$1,549.00
In Stock

Click & Collect Available

Order online and collect within 2 hours during business hours.

JL Audio XDM700/5 Premium 5-Channel Car & Marine System Amplifier

One Tiny Amplifier. Your Entire Vessel’s Sound System.

Why deal with the headache of mounting, wiring, and fusing multiple amplifiers when one sleek chassis can run your whole build? The JL Audio XDM700/5 is the ultimate all-in-one system solution. Engineered to thrive in both high-end car and rugged marine environments, this 5-channel 12V powerhouse is specifically designed to drive a complete audiophile-grade system: four satellite speakers plus a dedicated subwoofer.

With this single, compact unit, you can push two pairs of premium coaxial or component speakers with massive clarity while simultaneously feeding a heavy-hitting subwoofer system with deep, rhythmic bass.

Dual-Flavor NexD™ Studio Efficiency

Don't let the small footprint fool you. The XDM700/5 splits its internal duties using two variations of JL Audio’s proprietary switching technology: NexD™ ultra-high-speed switching for the crisp, full-range satellite channels, and a high-efficiency NexD™ low-frequency layout dedicated entirely to the subwoofer channel.

The result is staggering thermal efficiency, minimal strain on your 12V battery system, and studio-grade audio replication across the entire frequency spectrum.

Key Features & Benefits

  • Real Marine-Grade Architecture: Built with corrosion-resistant, marine-grade materials, stainless steel hardware, and a fully gasketed control cover. It features an exclusive dual-mode input filter ensuring dead-silent, hum-free performance regardless of electrical interference.

  • True Onboard 3-Way Active Crossover: Go way beyond basic tuning. The smart internal crossover filters can be assigned as a high-pass filter on Channels 1 & 2 (with an x10 frequency multiplier stretching up to 5 kHz for high-end tweeters), a bandpass filter on Channels 3 & 4, and a 12/24 dB variable slope low-pass filter for your sub.

  • Differential-Balanced Inputs: Actively scrubs out alternator whine, ignition crackle, and background electrical hiss before it ever touches your speakers.

  • Automatic Smart Turn-On: Perfect for updating modern factory audio systems or advanced multi-source networks. It initializes seamlessly using either signal-sensing or DC-offset sensing without requiring a separate remote wire.

  • Remote Level Capability: Add an optional water-resistant MHD-RLC or standard HD-RLC dial (sold separately) to adjust your master volume or fine-tune just the subwoofer's bass output directly from the helm.

Power Output Specifications (14.4V Input)

Channel Section Load Configuration RMS Power Output
Main Satellite Channels (1 - 4) 4 $\Omega$ Stereo (Per Channel) 75 Watts RMS x 4
Main Satellite Channels (1 - 4) 2 $\Omega$ Stereo (Per Channel) 100 Watts RMS x 4
Main Satellite Channels (Bridged) 4 $\Omega$ Mono (Bridged Pairs) 200 Watts RMS x 2
Dedicated Subwoofer Channel 4 $\Omega$ Mono (Sub Channel) 180 Watts RMS x 1
Dedicated Subwoofer Channel 2 $\Omega$ Mono (Sub Channel) 300 Watts RMS x 1

Technical Specifications

Feature Specification
Amplifier Class Full-Range NexD™ Class D
Frequency Response (Mains) 12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Sub Ch.) 10 Hz - 1 kHz (+0, -1dB)
Signal-to-Noise Ratio (Mains) >104 dB (A-weighted, referred to highest rated power)
Input Voltage Range 200 mV - 4V RMS
Channels 1 & 2 Crossover High-Pass only (12 dB/octave) | 50 Hz - 5 kHz
Channels 3 & 4 Crossover High-Pass or Bandpass (12 dB/octave) | 50 Hz - 500 Hz
Subwoofer Crossover Low-Pass only (Selectable 12 or 24 dB/octave) | 50 Hz - 500 Hz
Required Power / GND Wire 4 AWG copper wire
Fuse Rating 60 Amp (AFS, AGU, or MaxiFuse™)
Dimensions (W x H x D) 260 mm x 52 mm x 180 mm (10.23" x 2.05" x 7.09")
Warranty 3 Years

What's In The Box?

  • (1) XDM700/5 5-Channel System Amplifier

  • (1) Removable Control Cover Panel (Pre-installed)

  • (4) Stainless Steel Self-Tapping Mounting Screws

  • 2.5 mm Allen Wrench (For terminals)

  • Comprehensive Installation & Tuning Manual

Clean Up Your Installation. Crank Up the Audio. Stop cluttering your lockers with massive amp stacks. Add the JL Audio XDM700/5 to your cart today and power your complete open-air acoustic system from a single, indestructible footprint.
