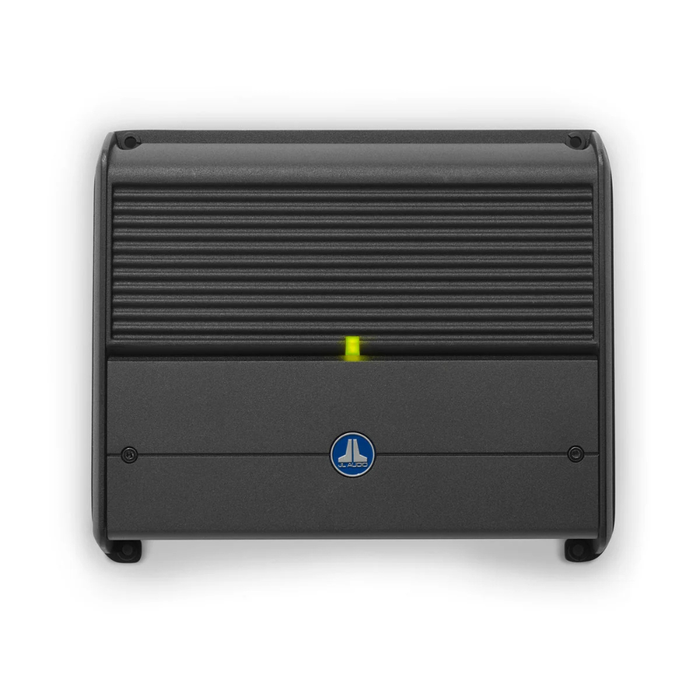

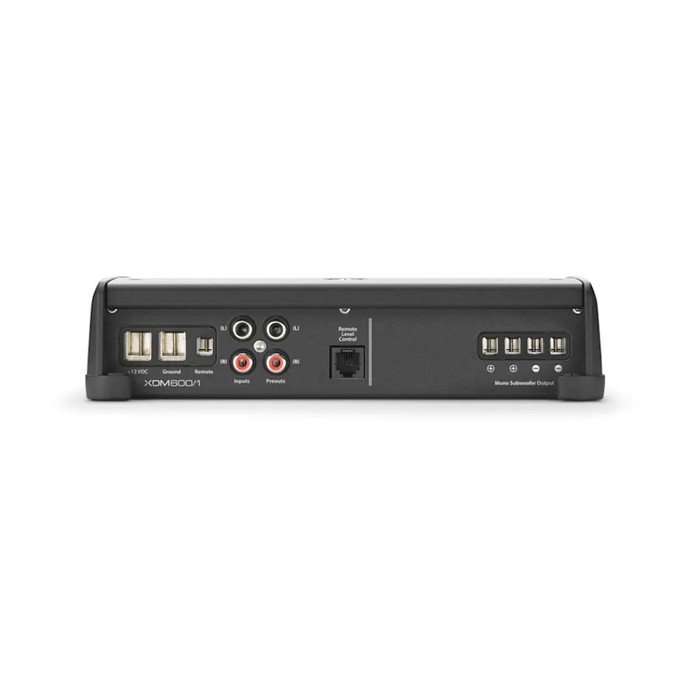

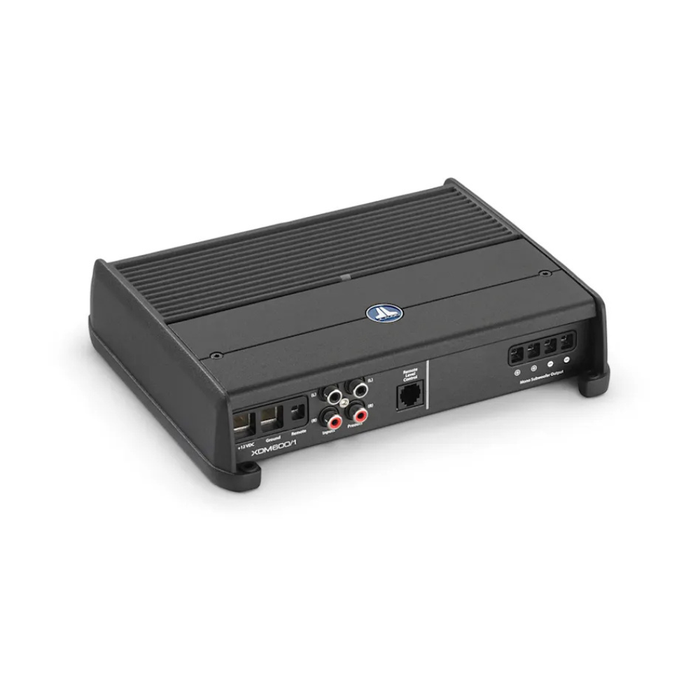

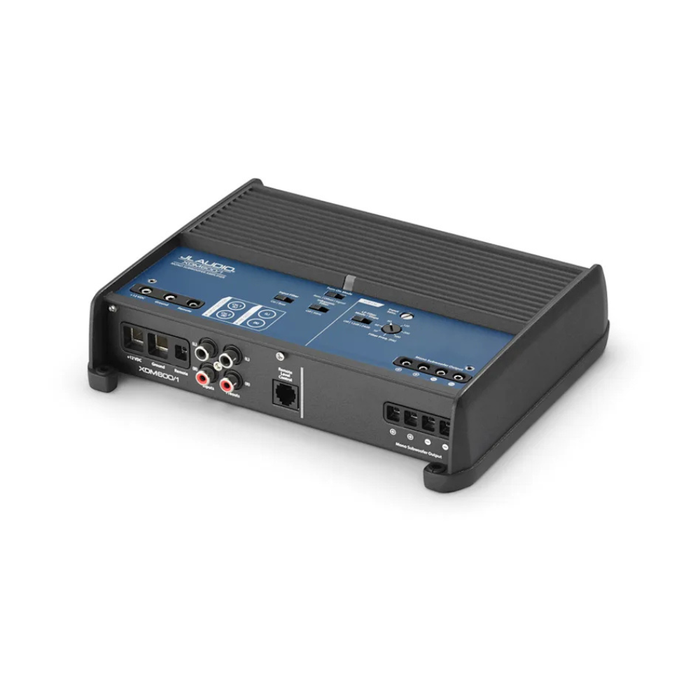

JL Audio XDM600/1 Marine and Powersports Amplifier Single Channel

JL Audio XDM600/1 Marine and Powersports Amplifier Single Channel

SKU 010-03116-00
$1,029.00 - $1,029.00
$1,029.00
$1,029.00 - $1,029.00
$1,029.00
In Stock

Click & Collect Available

Order online and collect within 2 hours during business hours.

JL Audio XDM600/1 Premium Monoblock Subwoofer Amplifier

Pure, Unadulterated Bass Performance. Built for the Elements.

If you want bass that you don’t just hear, but feel deep in your chest over the roar of open water or trail wind, you need a dedicated monoblock powerhouse. The JL Audio XDM600/1 is a heavy-duty, single-channel 12V subwoofer amplifier engineered to extract the absolute maximum performance from your marine or car subwoofer system, delivering up to a massive 600 Watts of continuous RMS power.

Whether you are shaking the wake of a ski boat, anchoring a multi-sub layout on a cruiser, or adding deep low-end punch to a rugged 4WD build, this sleek, compact amplifier drops uncompromising bass right where you need it.

Specialized NexD™ Low-Frequency Efficiency

Driving subwoofers requires massive blocks of energy, which traditionally translates to immense heat generation and punishing current draw on your batteries. JL Audio combats this with a tailored variation of their proprietary switching technology: the NexD™ low-frequency amplifier design. By optimizing the high-speed Class-D architecture specifically for bass frequencies, this amplifier operates with blistering efficiency, running cooler and drawing significantly less current from your 12V system while maintaining tight, precise cone control.

Key Features & Benefits

  • Hybrid Car & Marine Protection: Built with premium marine-grade materials, stainless steel hardware, and a fully gasketed aluminum control shield. It features an advanced dual-mode input filter ensuring flawless, noise-free operation in any installation.

  • Incredibly High Power Density: Don't let its compact footprint fool you. The XDM600/1 packs 600W of clean RMS power into a chassis measuring just 217 mm wide, allowing it to slide into tight compartments, under-seat storage lockers, or space-restricted dashboards.

  • Selectable 12dB or 24dB Slope Filters: Customize your bass response profile. Choose between a standard 12dB/octave or a steep, ultra-aggressive 24dB/octave low-pass filter to keep mid-range vocals completely out of your subwoofer system.

  • Integrated Infrasonic Filter: Protects your subwoofer investment. Features a selectable 30 Hz infrasonic (subsonic) filter that actively blocks power-robbing, non-audible frequencies from over-excreting your sub in free-air or ported enclosures.

  • Optional Remote Level Port: Add an optional water-resistant MHD-RLC or standard HD-RLC dial (sold separately) to dial your bass up or down on the fly directly from the driver’s seat or helm position.

Power Output Specifications (14.4V Input)

Subwoofer Load Impedance RMS Power Output
4 $\Omega$ Mono Load 400 Watts RMS x 1
3 $\Omega$ Mono Load 500 Watts RMS x 1
2 $\Omega$ Mono Load 600 Watts RMS x 1

Technical Specifications

Feature Specification
Amplifier Class Dedicated NexD™ Class D (Low-Frequency Optimized)
Frequency Response 7 Hz - 500 Hz (+0, -1dB)
Signal-to-Noise Ratio >87 dB (A-weighted, referred to highest rated power)
Damping Factor @ 4 $\Omega$ >1000 / 50 Hz
Input Voltage Range Switchable: 200 mV - 2V RMS (Low) / 800 mV - 8V RMS (High)
Filter Mode Low-Pass Only (Continuously variable 50 Hz - 500 Hz)
Filter Slopes Selectable 12 dB or 24 dB/octave
Infrasonic Filter 30 Hz (Defeatable via switch)
Required Power / GND Wire 4 AWG copper wire
Fuse Rating 50 Amp (AFS, AGU, or MaxiFuse™)
Dimensions (W x H x D) 217 mm x 52 mm x 180 mm (8.52" x 2.05" x 7.09")
Warranty 3 Years

What's In The Box?

  • (1) XDM600/1 Monoblock Subwoofer Amplifier

  • (1) Removable Control Cover Panel (Pre-installed)

  • (4) Stainless Steel Self-Tapping Mounting Screws

  • 2.5 mm Allen Wrench (For terminals)

  • Owner’s Manual & Bass Tuning Guide

Unleash the Bass. Stop settling for weak, hollow low-end sound on your adventures. Add the JL Audio XDM600/1 to your cart today and anchor your outdoor soundstage with earth-shaking, efficient power.
