JL Audio MM55 Media Master 55

JL Audio MM55 Media Master 55

SKU 010-03365-00
$699.00 - $699.00
$699.00
$699.00 - $699.00
$699.00
In Stock

Click & Collect Available

Order online and collect within 2 hours during business hours.

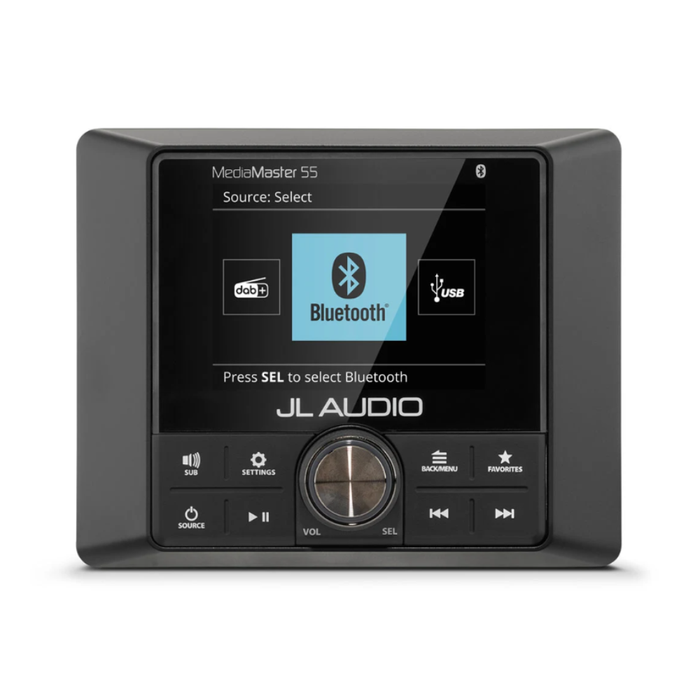

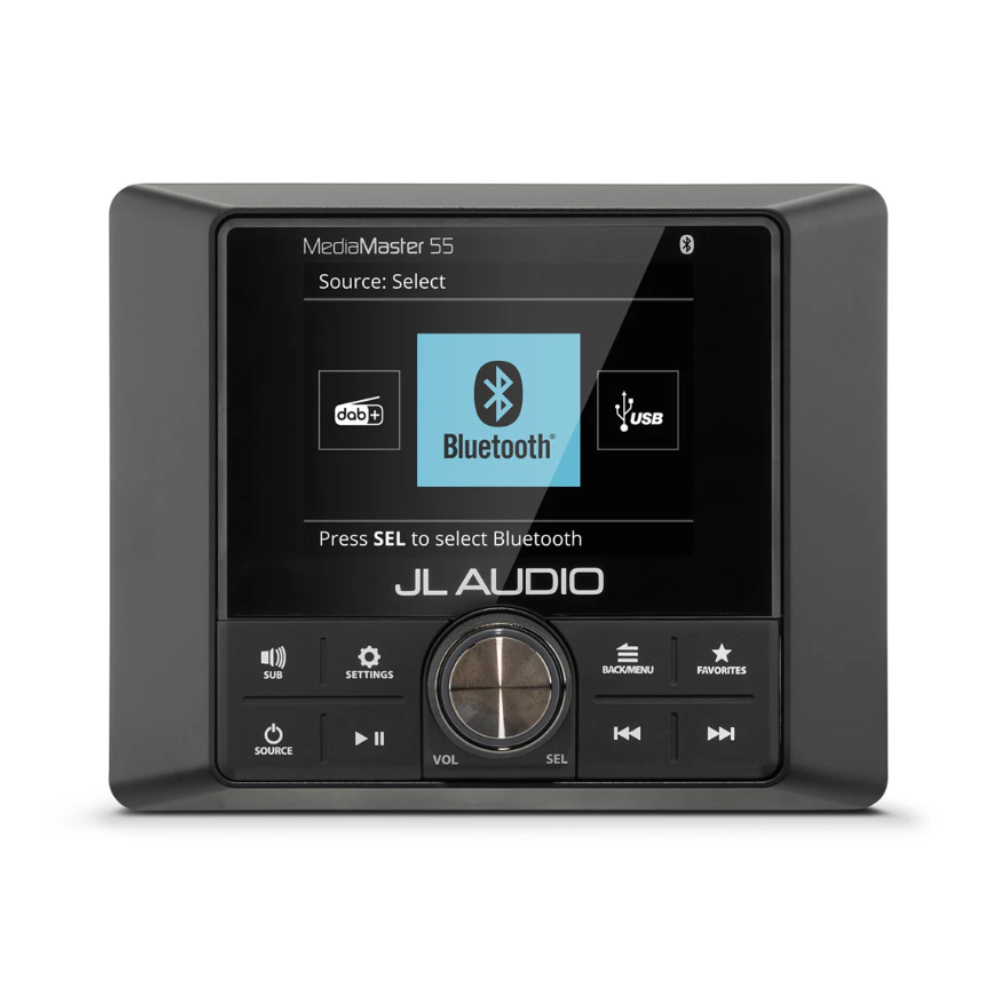

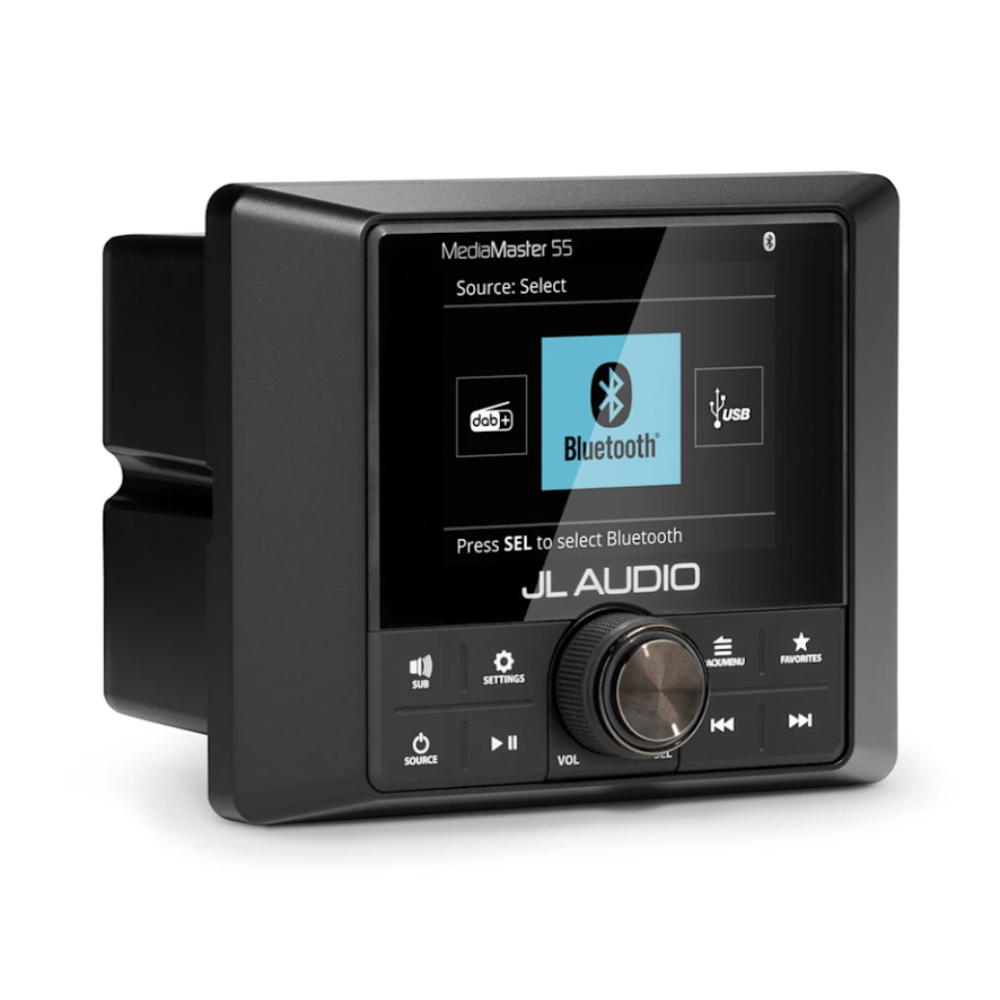

JL Audio MM55 MediaMaster 55 Premium Marine Source Unit

Premium Audiophile Performance in a Sleek, Space-Saving Design.

Looking for top-tier marine sound but working with limited dash space? The JL Audio MediaMaster® 55 (MM55) delivers a high-end, heavy-duty audio experience package designed specifically for smaller center consoles, pontoons, cruisers, 4WD canopy setups, and powersport vehicles.

Equipped with a built-in high-efficiency Class-D amplifier pumping out 100 Watts of total system power (25W RMS x 4), the MM55 can drive up to two zones of speakers directly without requiring a bulky external amplifier. It's the ultimate all-in-one source unit for boaters and off-roaders who refuse to compromise on sound quality.

Built For The Elements, Engineered for Direct Sunlight

The MM55 features a 2.8-inch full-color TFT LCD display that is optically bonded. By eliminating the air gaps between display layers, reflections are dramatically reduced, ensuring your screen remains crisp, high-contrast, and entirely legible even in direct afternoon sun. Combined with large, intuitive backlit controls sealed behind a watertight membrane, adjusting your tunes is completely foolproof on choppy water or rough trails.

Key Features & Benefits

  • 100W Built-In Class-D Power: Skip the extra hardware. The highly efficient internal amp powers 4 channels (2-ohm stable), delivering loud, clean sound while running cool on your vehicle's electrical system.

  • True Multi-Zone Control: Take command of up to 3 independent audio zones. Run 2 zones directly off internal power (e.g., Bow and Cockpit) and expand into a 3rd zone using the high-quality RCA preamp outputs for an added amplifier or subwoofer.

  • IP67 Weatherproof Protection: Engineered for harsh marine environments and dust-heavy overlanding routes. The control surface is fully dust-tight and rated to withstand water immersion up to 1 meter.

  • NMEA 2000® Networking: Seamlessly connect the MM55 to your Garmin, Lowrance, Simrad, or Raymarine Multifunction Display (MFD) to control your soundtrack straight from your fishfinder or chartplotter screen.

  • Modern Media Connectivity: Features high-fidelity Bluetooth® streaming with Qualcomm® aptX™, dual direct-digital USB connections for smartphone playback/charging, and a global AM/FM radio tuner with RDS data display.

Technical Specifications

Feature Specification
Display 2.8-inch optically bonded full-color TFT LCD (320 x 240)
Built-in Amp Class-D, 2-ohm stable (25W RMS x 4 channels / 100W Max)
Waterproof Rating IP67 (Control surface)
Audio Zones 3 independent zones (2 powered, 1 preamp output)
Preamp Outputs 9 channels total (1 stereo pair + mono subwoofer per zone)
Preamp Max Output 4V RMS
Connectivity Bluetooth aptX, USB Input (with charging), AUX analog input
Dimensions (H x W x D) 95 mm x 118 mm x 93 mm
Network Support NMEA 2000® Certified

What's In The Box?

  • JL Audio MM55 MediaMaster® Weatherproof Stereo

  • Protective Sun Cover

  • Mounting Gasket & Hardware

  • Power/Speaker Harness

  • User Manual

Big Sound, Small Footprint

Don’t let a crowded dash stop you from getting true high-fidelity sound. The JL Audio MM55 bridges the gap between rugged utility and high-end audio performance. Install it, crank it up, and own your outdoor soundtrack.
