HONDA WATER PUMP KIT 06193-ZY9-H01

HONDA WATER PUMP KIT 06193-ZY9-H01

SKU: HHJB-06193-ZY9-H01

$114.40 - $114.40
$114.40
$114.40 - $114.40
$114.40
In Stock

Click & Collect Available

Order online and collect within 2 hours during business hours.

Aftermarket Complete Water Pump Rebuild Kit with Housing for Honda | Replaces 06193-ZY9-H01

Fitment Guide

This complete housing kit is designed specifically for mid-to-high horsepower Honda 4-stroke outboard engines:

  • Honda 4-Stroke: BF75D / BF75DK3 / BF75DK4 (75 HP)

  • Honda 4-Stroke: BF80A / BF80AK1 (80 HP)

  • Honda 4-Stroke: BF90D / BF90DK4 / BF90DK5 (90 HP)

  • Honda 4-Stroke: BF100A / BF100AK1 (100 HP)

Part Number Cross-Reference

This complete aftermarket overhaul kit replaces and crosses over with the following factory numbers:

  • Honda OEM: 06193-ZY9-H01, 06193-ZY9-H00, 06193-ZY9-H02, 06193-ZY9-H03

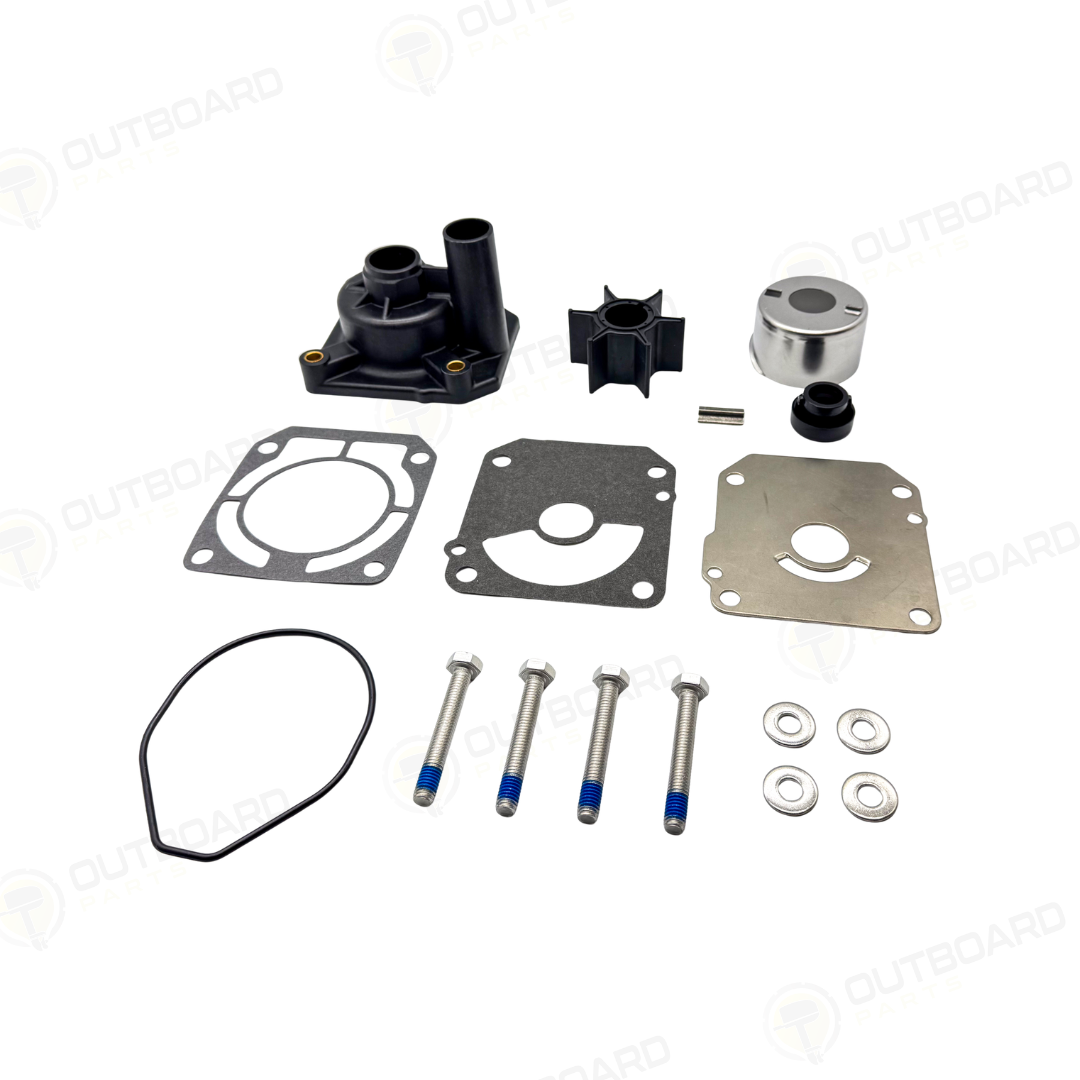

What’s Included in the Box:

  • 1 x Upper Impeller Housing Casing (Replaces 19221-ZY9-H01)

  • 1 x Stainless Steel Outer Insert Cup / Sleeve (Replaces 19223-ZY9-H00)

  • 1 x High-Flow Neoprene Impeller (Replaces 19210-ZY9-H01)

  • 1 x Stainless Steel Under Panel / Wear Plate (Replaces 19231-ZY9-H01)

  • 1 x Water Pump Housing Base Gasket (Replaces 19242-ZW1-B00)

  • 1 x Impeller Cover Sealing Gasket (Replaces 19234-ZW1-B00)

  • 1 x Water Tube Guide Seal Damper (Replaces 19253-ZW1-B01)

  • 1 x Drive Shaft Woodruff Key (Replaces 90752-ZW1-B02)

  • 1 x Housing O-Ring (Replaces 91356-ZW1-B00)

  • 4 x Installation Bolts, Washers, and Distance Collars
