FUEL WATER SEPERATOR 90798-1M745

FUEL WATER SEPERATOR 90798-1M745

SKU REC90798-1M745
Sold out
$99.00 - $99.00
$99.00
$99.00 - $99.00
$99.00

Click & Collect Available

Order online and collect within 2 hours during business hours.

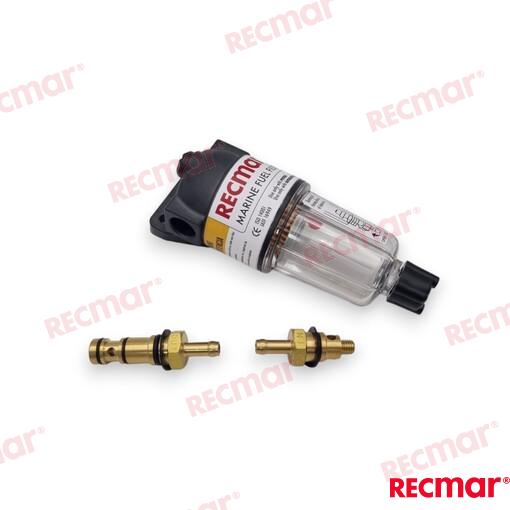

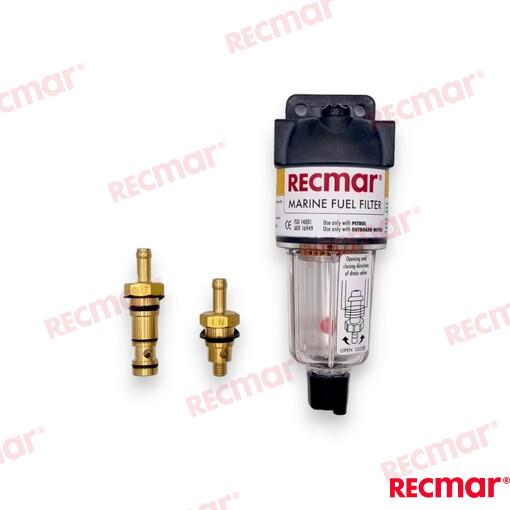

Aftermarket 10-Micron Small Water-Separating Fuel Filter Assembly (PN: 90798-1M745)

Product Overview

Protect your outboard engine from contaminated fuel with this 10-Micron Water-Separating Fuel Filter Assembly. Designed as a high-performance aftermarket direct replacement for Part Number 90798-1M745, this compact fuel filter assembly is engineered to fit into tight bilge and transom spaces.

It efficiently traps dirt, rust, particles, and separates over 99% of free water from your fuel before it reaches your fuel injectors or carburetor. Constructed from a high-strength, non-corrosive composite resin (PPS) body, it will not rust or degrade in harsh saltwater environments. The clear visual inspection bowl features a high-visibility red float ring that rises to indicate when water needs to be drained.

Key Features & Benefits

  • High Efficiency Filtration: 10-micron element stops ultra-fine particles and separates 99%+ of water.

  • Corrosion-Proof Construction: Durable resin/composite housing designed for saltwater and freshwater marine environments.

  • Clear Viewing Bowl & Drain: Visual inspection bowl with a buoyant red level ring makes water detection and routine servicing simple.

  • Ethanol Fuel Safe: Compatible with standard marine fuels as well as E10 and E20 ethanol blends.

  • Compact Footprint: Space-saving design specifically created for smaller boats, dinghies, and tight motor wells.

Engine Fitment & Compatibility

Suitable Outboard Engines:

  • Recommended For: 4-Stroke Outboard Engines up to 70 HP (Yamaha, Mercury, Mariner, Suzuki, Tohatsu, Honda, etc.).

  • Maximum Flow Rate: Up to 100 Liters / Hour (approx. 26 GPH).

  • Hose / Barb Size: Designed for standard 7mm / 8mm (5/16") or 10mm (3/8") fuel lines.

Important Note: Recommended for 4-stroke outboard engines. Not recommended for 2-stroke pre-mix engines, as water-separating filters can strip the pre-mixed two-stroke oil out of the gasoline.

Technical Specifications

Parameter Specification
Filtration Rating 10 Micron
Water Separation Rate ≥ 99%
Max Flow Rate 100 L/hr (26 GPH)
Fluid Capacity ~60 cc bowl capacity
Filtration Surface Area 220 cm²
Body Material PPS Composite / Polymer (Corrosion-Free)
Hose Fitting Size 7mm / 8mm (5/16")
Dimensions Approx. 169 mm (H) x 113 mm (W) x 62 mm (D)

Cross-Reference & Part Numbers

This aftermarket assembly directly replaces and supersedes the following OEM and distributor part numbers:

Complete Filter Assembly Cross-Reference:

  • Yamaha OEM: 90798-1M745, 90798-1M745-00

  • Yamaha Superseded Numbers: 90798-1M677, 90794-46909, 90794-46881

  • Yamaha Model Code: YGF02 / YGF-02 (Small Assembly)
