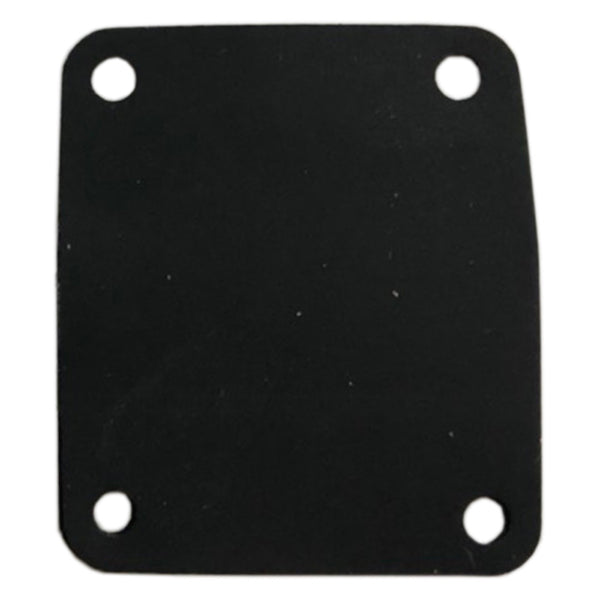

FUEL PUMP DIAPHRAGM 63V-24411-00

Australia Stock: 3 available
Click & Collect - Ready within 2 business hours
Same-Day Dispatch – Express orders before 1pm

RRP

$14.10 AUD inc. GST
Product Add-ons
Outboard Parts Dry Snapback Hat
Outboard Parts Dry Snapback Hat
$29.94 AUD inc. GST
Product details
  • Vendor Recmar
  • SKU REC63V-24411-00

Do you have questions about this product?

Ask an expert!

Description Shipping information

Compatible Yamaha Models

This diaphragm is most commonly found on the following 2-stroke models:

  • 9.9 HP: 9.9F, 9.9MSH, E9.9D (Enduro).

  • 13.5 HP: 13.5A.

  • 15 HP: 15F, 15MSH, E15D (Enduro).

Note: These models typically cover the years 1996 to 2012 (and up to 2017 in some regions for the 15F).

Interchangeability & Differences

It is important to note that 63V-24411-00 and 6G1-24411-00 are often used in the same fuel pump assembly but serve different roles within the "sandwich" of the pump:

  • 63V-24411-00: Often referred to as the outer diaphragm. It usually features a 4-hole or 5-hole alignment depending on the specific pump housing.

  • 6G1-24411-00: Often referred to as the inner diaphragm.

In many 9.9HP and 15HP service kits, both are included because they work together to create the pulse needed to move fuel. If you are rebuilding the pump, you generally want to replace both at the same time to ensure a proper vacuum seal.

Cross-Reference Brands

  • Parsun / Hidea / Powertec: Used on the T15 and T9.9 series (Yamaha clones).

  • Sierra Marine: Found in various 9.9/15HP repair kits.

This is a non OEM part REC63V-24411-00
