CARROLL RED CRIMP TERMINAL SPADE MALE 6.3MM 100PK

CARROLL RED CRIMP TERMINAL SPADE MALE 6.3MM 100PK

SKU: SUR/QCM1-6

$37.97 - $37.97
$37.97
$37.97 - $37.97
$37.97
In Stock

Click & Collect Available

Order online and collect within 2 hours during business hours.

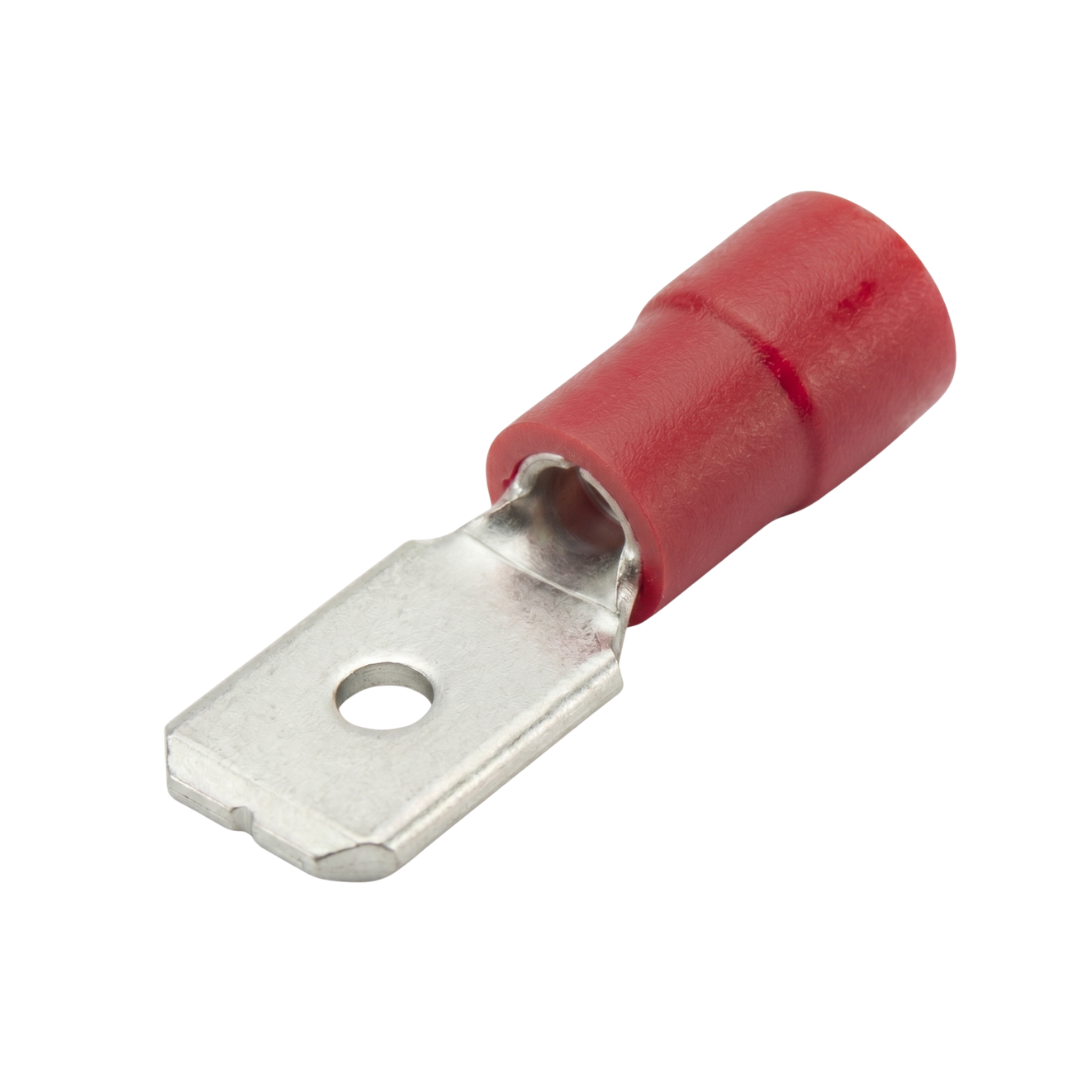

Pre-Insulated Red Male Spade Terminals | 6.3mm Tab (100 Pack)

Streamline your quick-disconnect wiring with this premium 100-pack of pre-insulated Red Male Spade Terminals. Engineered to match standard 6.3mm / 6.4mm (1/4") female spade connectors and accommodating 0.5mm² to 1.6mm² cable sizes (22–16 AWG), these tabs provide a firm, secure connection. They are the ideal choice for clean component switching, service links, and wiring harnesses in automotive, marine, and industrial environments.

Featuring a funnel-entry insulation design, these male spade terminals eliminate stray, split wire strands by guiding your conductor directly into the internal crimping barrel for a fast, flawless termination.

Key Features

  • Perfect Mating Profile: Precision-stamped blade thickness ensures a reliable, high-friction connection with mating female tabs without loose play.

  • Premium Tin-Plated Brass: Combines excellent mechanical strength with exceptional corrosion resistance—vital for maintaining strong signal and power transmission over time.

  • Flared PVC Insulation: The easy funnel-entry sleeve stops wire strands from snagging or folding back, accelerating high-volume harness building.

  • Industry Compliance: Built to meet rigorous Australian and international electrical trade standards for reliable low-voltage termination.

  • Commercial 100-Pack: Packaged in a durable trade bulk-pack to ensure your workshop drawer or field kit is always fully loaded.

Technical Specifications

Feature Specification
Terminal Type Pre-Insulated Male Quick Disconnect / Blade / Spade
Insulation Color Red (Industry standard for 0.5 – 1.6mm² / 22–16 AWG)
Tab / Interface Size 6.3mm x 0.8mm (1/4" Standard Blade)
Pack Quantity 100 Pieces
Cable Compatibility 0.5mm² to 1.6mm²
Voltage Rating Up to 300V max
Temperature Range -40°C to +105°C
Material Tin-plated brass body, premium PVC insulation sleeve

Applications

Perfect for relays, modular switchboards, fuse blocks, solenoids, instruments, and field maintenance across:

  • 12V / 24V Automotive, 4WD, and Caravan electrical builds

  • Marine dashboards, inline instrument grouping, and bilge pump links

  • Commercial switchgear and automation control panels

  • Custom audio-visual or secondary battery systems
