CARROLL BLUE CRIMP TERMINAL SPADE FEMALE 100PK

CARROLL BLUE CRIMP TERMINAL SPADE FEMALE 100PK

SKU: SUR/QCF2-6F

$37.03 - $37.03
$37.03
$37.03 - $37.03
$37.03
In Stock

Click & Collect Available

Order online and collect within 2 hours during business hours.

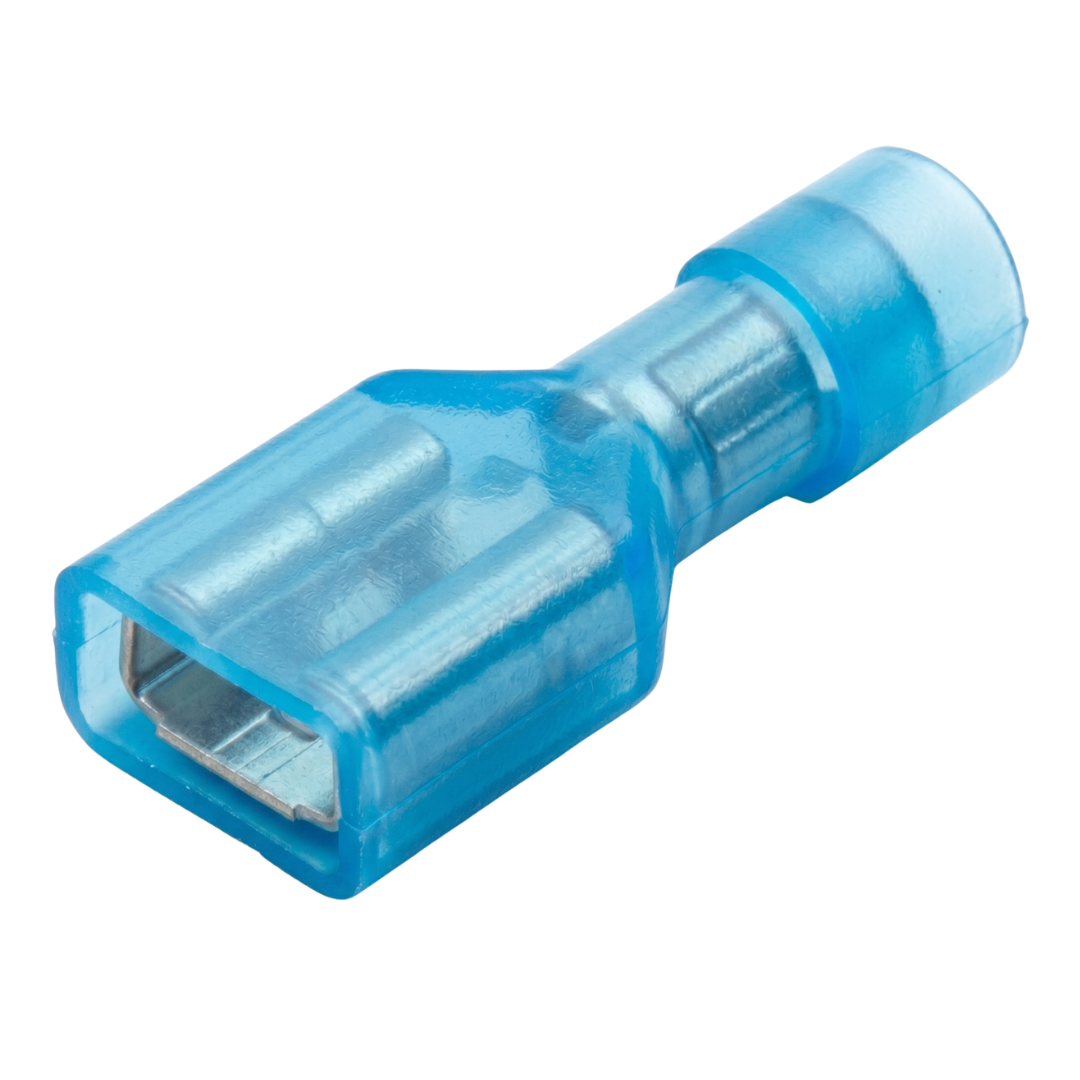

Pre-Insulated Blue Female Spade Terminals | 6.4mm Tab (100 Pack)

Streamline your quick-disconnect wiring with this premium 100-pack of pre-insulated Blue Female Spade Terminals. Engineered to match standard 6.4mm (1/4") male spade tabs and accommodating 1.5mm² to 2.5mm² cable sizes (16–14 AWG), these connectors provide a tight, vibration-resistant friction fit. They are the go-to choice for clean component switching in automotive, marine, and industrial control systems.

Featuring a funnel-entry insulation design, these quick-disconnects eliminate stray, split wire strands by guiding your conductor directly into the internal crimping barrel for a fast, flawless termination.

Key Features

  • Vibration-Resistant Grip: Designed with detent dimples inside the female sleeve to securely lock onto male tabs, preventing accidental disconnects under harsh physical movement.

  • Premium Tin-Plated Brass: Offers high mechanical strength and exceptional corrosion resistance—vital for maintaining strong signal and power transmission over time.

  • Flared PVC Insulation: The easy funnel-entry sleeve stops wire strands from snagging or folding back, accelerating high-volume harness building.

  • Industry Compliance: Built to meet rigorous Australian and international electrical trade standards for reliable low-voltage termination.

  • Commercial 100-Pack: Packaged in a durable trade bulk-pack to ensure your workshop drawer or field kit is always fully loaded.

Technical Specifications

Feature Specification
Terminal Type Pre-Insulated Female Quick Disconnect / Spade
Insulation Color Blue (Industry standard for 1.5 – 2.5mm² / 16–14 AWG)
Tab / Interface Size 6.4mm x 0.8mm (1/4" Standard)
Pack Quantity 100 Pieces
Cable Compatibility 1.5mm² to 2.5mm²
Voltage Rating Up to 300V max
Temperature Range -40°C to +105°C
Material Tin-plated brass body, premium PVC insulation sleeve

Applications

Perfect for relays, switches, fuse blocks, solenoids, speakers, and instrument panels across:

  • 12V / 24V Automotive, 4WD, and Caravan electrical builds

  • Marine dashboards and bilge pump wiring

  • Commercial switchgear and automation control panels

  • Custom audio-visual or secondary battery systems
