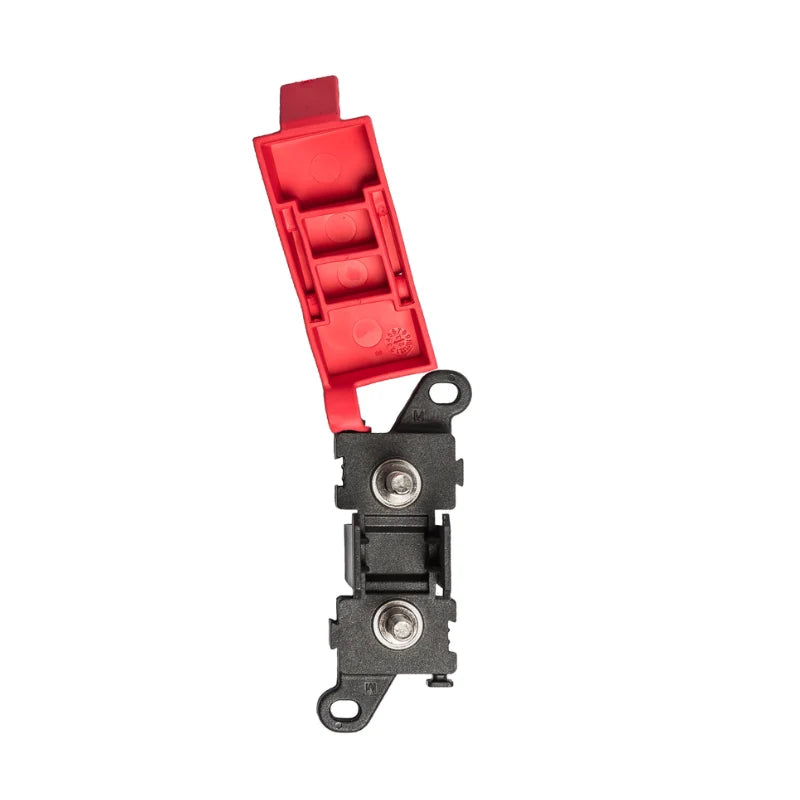

Modular Single AMI / MIDI Bolt-Down Fuse Holder
Heavy-Duty High-Current Inline Protection for Dual-Battery & Marine Systems
Safeguard your high-draw 12V and 24V auxiliary power lines with this Modular Single AMI / MIDI Fuse Holder. Designed to accept standard AMI and MIDI bolt-down fuses (from 30A up to 200A+), this compact fuse block provides secure, high-current circuit protection for DC-DC chargers, inverters, battery interconnects, and main accessory feeds.
Featuring an interlocking modular base, multiple fuse holders can be clipped together side-by-side to build a clean, custom multi-circuit distribution panel. Built with heavy-duty M5 threaded studs, corrosion-resistant hardware, and a protective snap-on cover, it delivers rock-solid, vibration-proof electrical contacts engineered for tough off-road, caravan, and marine environments.
Key Features
-
Universal AMI / MIDI Compatibility: Accommodates standard bolt-down AMI and MIDI fuses across all amperage ratings (30A to 200A+).
-
Interlocking Modular Design: Dovetail side slots allow multiple fuse blocks to slide and lock together for expanded multi-fuse distribution hubs.
-
Vibration-Proof M5 Studs: Heavy-duty M5 threaded studs ensure a high-torque, low-resistance electrical connection that resists severe vehicle vibration.
-
Protective Snap-On Cover: Flexible insulated cover protects live terminals from accidental shorts, dust, and water splash, meeting marine and automotive safety needs.
-
Durable Heat-Resistant Base: High-temperature glass-reinforced housing stands up to harsh engine bay heat and chemical exposure.
Technical Specifications
| Specification |
Details |
| Product Type |
Modular Inline AMI / MIDI Fuse Holder |
| Fuse Compatibility |
AMI / MIDI Bolt-Down Fuses (30A – 200A+) |
| Voltage Rating |
Up to 32V DC (Supports 12V / 24V setups) |
| Max Current Rating |
200A Continuous |
| Terminal Stud Size |
M5 Stainless Steel Studs with Nuts/Washers |
| Body Material |
High-Temperature Flame-Retardant Thermoplastic |
| Cover Type |
Flexible Protective Insulating Cap |
| Mounting |
Surface-Mount (Pre-drilled mounting tabs) |
Applications
-
Protecting BCDC battery chargers and MPPT solar regulators
-
Primary fuse protection for small-to-medium power inverters
-
Dual-battery main feed lines and canopy distribution boards
-
Marine battery isolation, 4WD touring setups, and caravan wiring
