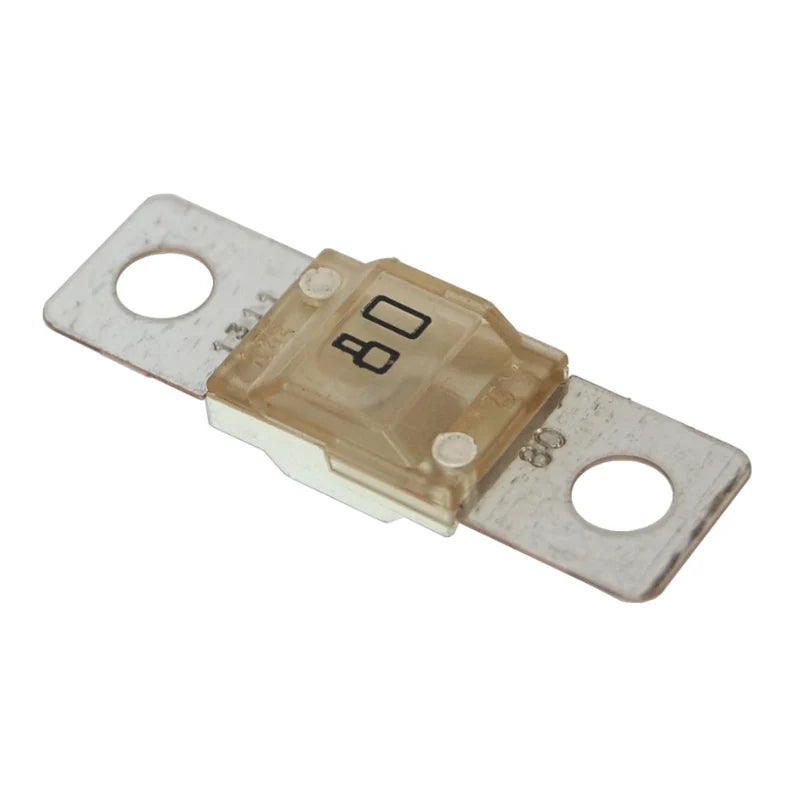

80A AMI / MIDI High-Current Bolt-Down Fuse
Reliable 80 Amp Circuit Protection for DC-DC Chargers & Power Sub-Panels
Engineered to safeguard auxiliary DC circuits from short circuits and severe overcurrent events, the 80A AMI / MIDI Bolt-Down Fuse provides heavy-duty protection in a compact footprint. Sized for 40A–50A DC-DC battery chargers, 500W–600W pure sine wave inverters, high-draw anchor windlasses, and secondary distribution blocks, this 80 Amp fuse ensures stable, continuous power delivery while preventing false trips.
Constructed with tin-plated copper alloy contacts, it guarantees minimal voltage drop and long-term resistance to oxidation. The M5 bolt-down design provides a firm, vibration-proof electrical connection that resists loosening, arcing, and heat buildup under demanding 4WD, marine, and caravan operating conditions.
Key Features
-
80 Amp Continuous Protection: Ideal rating for protecting 40A/50A DC-DC battery chargers, 500W–600W inverters, and heavy auxiliary sub-lines.
-
Slow-Blow Time-Delay Element: Built to handle temporary startup surges (inrush current) without nuisance blowing when initiating inductive loads.
-
Vibration-Proof M5 Bolt-Down Mounting: Secures tightly onto M5 studs to eliminate loose contacts caused by rough off-road terrain or engine vibration.
-
Tin-Plated Copper Blades: Delivers maximum electrical conductivity while resisting corrosion in humid engine bays and marine compartments.
-
Clear Amperage Markings: Stamped 80A rating and transparent housing window allow for instant visual verification during maintenance.
Technical Specifications
| Specification |
Details |
| Product Type |
AMI / MIDI Bolt-Down Fuse |
| Amperage Rating |
80 Amp (80A) |
| Voltage Rating |
Up to 32V DC (Supports 12V / 24V systems) |
| Interrupt Rating |
5,000A @ 16V DC / 2,000A @ 32V DC |
| Mounting Style |
M5 Stud / Bolt-Down (~30mm hole spacing) |
| Terminal Material |
Tin-Plated Copper Alloy |
| Body Material |
High-Temperature Thermoplastic |
| Operating Temp |
-40°C to +125°C |
Applications
-
40A and 50A DC-DC battery chargers and solar controllers
-
500W to 600W pure sine wave power inverters
-
Auxiliary 12V/24V power distribution sub-panels and fuse blocks
-
4WD touring setups, caravans, camper trailers, and marine power systems
