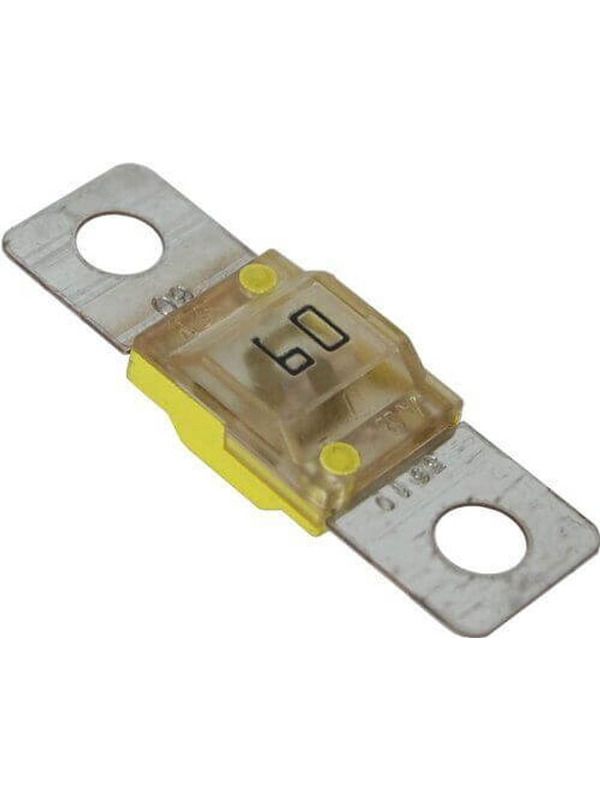

60A AMI / MIDI High-Current Bolt-Down Fuse
Dependable 60 Amp Circuit Protection for DC-DC Chargers & Dual-Battery Lines
Engineered to protect medium-to-high current DC electrical circuits from short circuits and severe overloads, the 60A AMI / MIDI Bolt-Down Fuse delivers robust protection in a space-saving footprint. Sized for 25A–30A DC-DC battery chargers, 300W–400W pure sine wave inverters, auxiliary fuse blocks, and dual-battery interconnect lines, this 60 Amp fuse reliably handles continuous loads while preventing nuisance trips.
Featuring tin-plated copper alloy contact blades, it ensures minimal voltage drop and long-term protection against corrosion. The M5 bolt-down eyelet design guarantees a solid, vibration-resistant connection that will not loosen, arc, or overheat under demanding 4WD, caravan, camper trailer, and marine operating conditions.
Key Features
-
60 Amp Continuous Protection: Rated specifically for protecting 25A/30A DC-DC battery chargers, 350W inverters, and heavy auxiliary distribution feeds.
-
Slow-Blow Time-Delay Element: Built to tolerate short startup current spikes (inrush current) without false blowing when powering up equipment.
-
Vibration-Proof M5 Bolt-Down Mount: Secures firmly to M5 studs to eliminate loose contacts and resistive heat buildup off-road or at sea.
-
Corrosion-Resistant Terminals: Tin-plated copper blades deliver superior conductivity and protection against oxidation and humidity.
-
Clear Visual Inspection: Stamped 60A rating and transparent housing window allow for instant visual diagnostic checks inside fuse holders.
Technical Specifications
| Specification |
Details |
| Product Type |
AMI / MIDI Bolt-Down Fuse |
| Amperage Rating |
60 Amp (60A) |
| Voltage Rating |
Up to 32V DC (Supports 12V / 24V systems) |
| Interrupt Rating |
5,000A @ 16V DC / 2,000A @ 32V DC |
| Mounting Style |
M5 Stud / Bolt-Down (~30mm hole spacing) |
| Terminal Material |
Tin-Plated Copper Alloy |
| Body Material |
High-Temperature Thermoplastic |
| Operating Temp |
-40°C to +125°C |
Applications
-
25A and 30A DC-DC battery chargers and solar controllers
-
300W to 400W pure sine wave power inverters
-
Auxiliary dual-battery power distribution lines and sub-panels
-
Caravan, 4WD, camper trailer, and marine power systems
