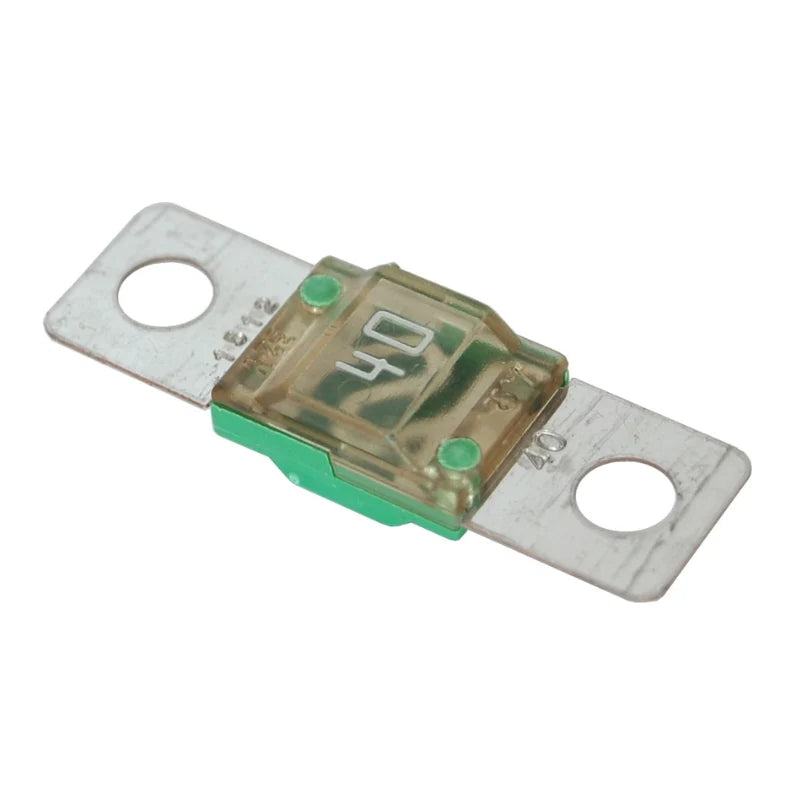

40A AMI / MIDI High-Current Bolt-Down Fuse
Dependable 40 Amp Circuit Protection for DC-DC Chargers & Auxiliary Circuits
Engineered to protect low-to-medium draw DC electrical circuits against overloads and short circuits, the 40A AMI / MIDI Bolt-Down Fuse provides space-saving, heavy-duty circuit protection. Perfectly rated for 15A–20A DC-DC battery chargers, 200W inverters, air compressors, and auxiliary distribution sub-lines, this 40 Amp fuse handles continuous loads while preventing false trips.
Constructed with tin-plated copper alloy contact blades, it maintains high conductivity with minimal voltage drop. The M5 bolt-down eyelet design guarantees a rock-solid, vibration-resistant connection that will not loosen, arc, or overheat under demanding 4WD, caravan, camper trailer, and marine operating conditions.
Key Features
-
40 Amp Continuous Protection: Ideal rating for protecting 15A/20A DC-DC battery chargers, portable air compressors, and secondary accessory sub-feeds.
-
Slow-Blow Time-Delay Element: Engineered to tolerate brief startup current spikes (inrush current) without false blowing when initiating loads.
-
Vibration-Proof M5 Bolt-Down Mounting: Secures firmly onto M5 studs to eliminate loose contacts and resistive heat buildup caused by rough off-road terrain or engine vibration.
-
Corrosion-Resistant Terminals: Tin-plated copper blades deliver superior conductivity and long-term protection against oxidation and humidity.
-
Clear Visual Inspection: Stamped 40A rating and transparent housing window allow for instant visual diagnostic checks inside fuse holders.
Technical Specifications
| Specification |
Details |
| Product Type |
AMI / MIDI Bolt-Down Fuse |
| Amperage Rating |
40 Amp (40A) |
| Voltage Rating |
Up to 32V DC (Supports 12V / 24V systems) |
| Interrupt Rating |
5,000A @ 16V DC / 2,000A @ 32V DC |
| Mounting Style |
M5 Stud / Bolt-Down (~30mm hole spacing) |
| Terminal Material |
Tin-Plated Copper Alloy |
| Body Material |
High-Temperature Thermoplastic |
| Operating Temp |
-40°C to +125°C |
Applications
-
15A and 20A DC-DC battery chargers and solar regulators
-
High-draw 12V air compressors and fridge power lines
-
Auxiliary 12V/24V power distribution sub-panels and fuse blocks
-
Caravan, 4WD, camper trailer, and marine power systems
