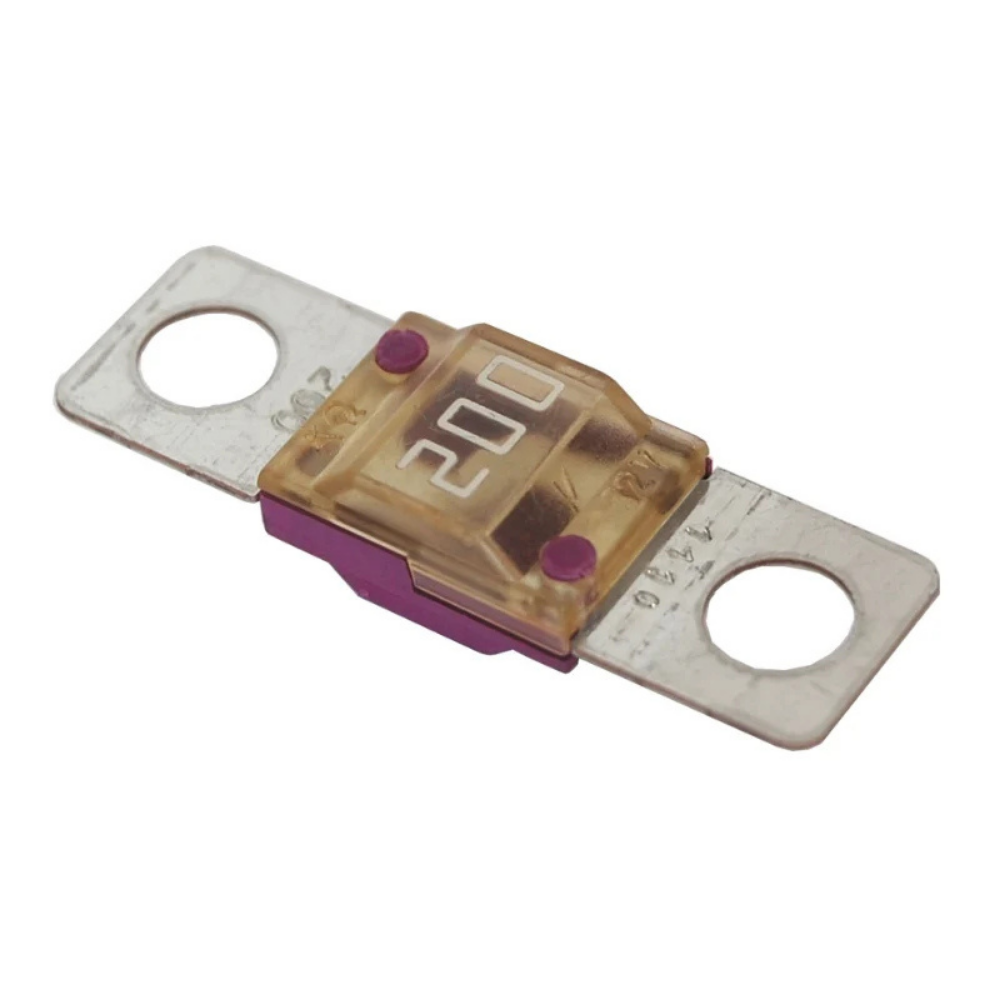

200A AMI / MIDI High-Current Bolt-Down Fuse
Maximum 200 Amp Circuit Protection for Inverters & Main Battery Feeds
Engineered to protect high-draw DC power lines against catastrophic overloads and short circuits, the 200A AMI / MIDI Bolt-Down Fuse delivers maximum current-handling capacity in a compact, space-saving footprint. Designed for high-output dual-battery installations, 1500W–2000W inverters, heavy winches, and main battery interconnect cables, this fuse reliably manages heavy continuous loads while resisting false trips from initial motor start-up surges.
Constructed with premium tin-plated copper contacts, it guarantees minimal voltage drop and superior defense against oxidation. The M5 bolt-down eyelet design provides a rock-solid, vibration-proof electrical connection—making it an indispensable component for 4WD touring, commercial rigs, and marine power systems.
Key Features
-
200 Amp High-Capacity Protection: Built specifically for protecting heavy-gauge main battery feeds, high-output DC power networks, and large power inverters.
-
Slow-Blow Surge Tolerance: Time-delay design handles high initial inrush currents without nuisance blowing when turning on inductive or capacitive loads.
-
Vibration-Proof M5 Bolt-Down Mount: Secures tightly onto M5 studs to prevent loose contacts, resistive heating, and arcing in rough off-road or marine environments.
-
Tin-Plated Copper Blades: Delivers maximum electrical conductivity while resisting corrosion in high-humidity engine bays and marine lockers.
-
Clear Amperage Identification: Stamped 200A rating and distinct color coding allow for fast visual verification inside fuse holders and distribution blocks.
Technical Specifications
| Specification |
Details |
| Product Type |
AMI / MIDI Bolt-Down Fuse |
| Amperage Rating |
200 Amp (200A) |
| Voltage Rating |
Up to 32V DC |
| Interrupt Rating |
5,000A @ 32V DC |
| Mounting Style |
M5 Stud / Bolt-Down (~30mm hole spacing) |
| Terminal Material |
Tin-Plated Copper |
| Body Material |
High-Temperature Thermoplastic |
| Operating Temp |
-40°C to +125°C |
Applications
-
1500W to 2000W pure sine wave power inverters
-
Main battery isolation cables, BCDC lines, and dual-battery interconnects
-
Heavy-duty 12V/24V electric winches and high-draw anchor windlasses
-
Caravan, camper trailer, and marine main power distribution systems
