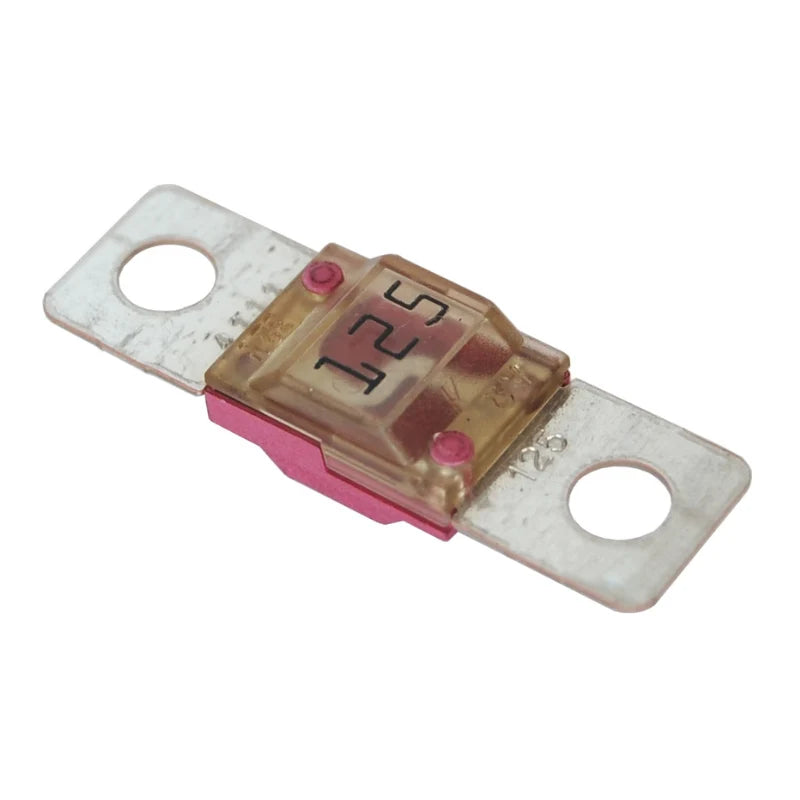

125A AMI / MIDI High-Current Bolt-Down Fuse
Reliable 125 Amp Circuit Protection for Inverters, Chargers & Battery Feeds
Engineered to safeguard high-current DC power lines against overloads and short circuits, the 125A AMI / MIDI Bolt-Down Fuse provides heavy-duty protection in a compact footprint. Ideal for 800W–1000W inverters, high-capacity BCDC battery chargers, dual-battery link lines, and auxiliary power distribution hubs, this fuse reliably manages continuous loads while tolerating initial power-up surges.
Constructed with tin-plated copper contacts, it ensures high electrical conductivity and minimal voltage drop across your circuit. The M5 bolt-down design guarantees a solid, vibration-proof connection that resists loosening, heat buildup, and arcing in demanding off-road, marine, and caravan setups.
Key Features
-
125 Amp Continuous Protection: Perfectly sized for protecting 800W–1000W inverters, heavy auxiliary power lines, and high-amp battery chargers.
-
Slow-Blow Time-Delay: Handles brief initial current spikes (inrush current) without nuisance blowing when turning on inductive or capacitive loads.
-
Vibration-Proof M5 Bolt-Down Mounting: Secures tightly onto M5 studs to eliminate loose contacts and resistive heating caused by vehicle vibration.
-
Tin-Plated Copper Blades: Delivers maximum electrical conductivity while resisting corrosion in high-humidity engine bays and marine lockers.
-
Clear Amperage Identification: Stamped 125A rating and standardized color coding allow for fast visual inspection during routine maintenance.
Technical Specifications
| Specification |
Details |
| Product Type |
AMI / MIDI Bolt-Down Fuse |
| Amperage Rating |
125 Amp (125A) |
| Voltage Rating |
Up to 32V DC (Supports 12V / 24V systems) |
| Interrupt Rating |
5,000A @ 16V DC / 2,000A @ 32V DC |
| Mounting Style |
M5 Stud / Bolt-Down (~30mm hole spacing) |
| Terminal Material |
Tin-Plated Copper Alloy |
| Body Material |
High-Temperature Thermoplastic |
| Operating Temp |
-40°C to +125°C |
Applications
-
800W to 1000W pure sine wave power inverters
-
High-output DC-DC battery chargers and multi-stage solar regulators
-
Auxiliary battery interconnect cables and main power hubs
-
4WD touring, caravan, camper trailer, and marine power distribution
