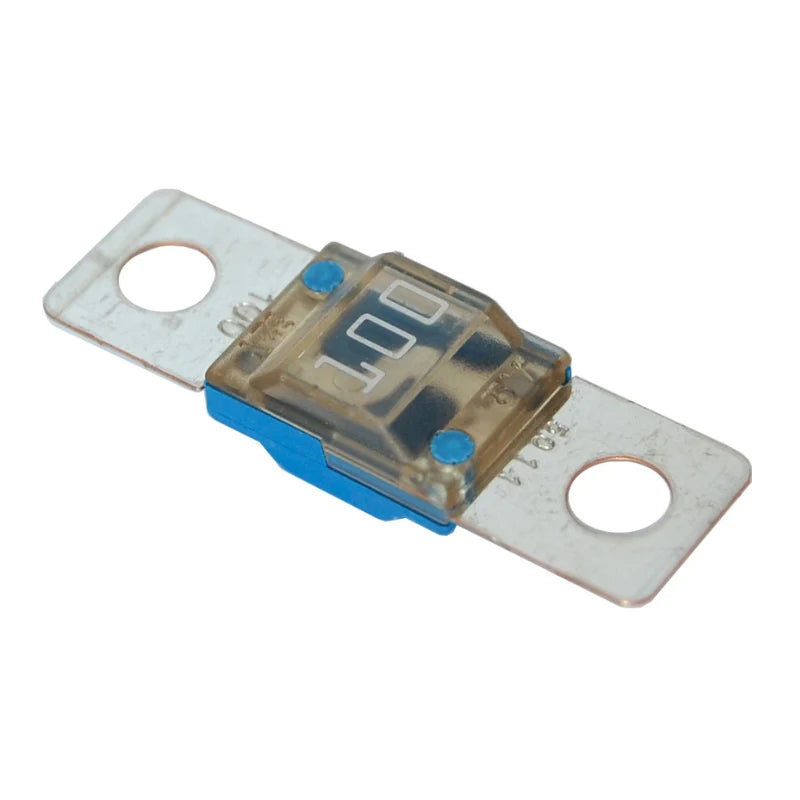

100A AMI / MIDI High-Current Bolt-Down Fuse
Dependable 100 Amp Circuit Protection for DC-DC Chargers & Inverters
Engineered to protect high-current DC power lines against dangerous overloads and short circuits, the 100A AMI / MIDI Bolt-Down Fuse delivers robust protection in a compact footprint. Sized for 600W–800W pure sine wave inverters, high-output 50A DC-DC battery chargers, dual-battery auxiliary feeds, and main fuse blocks, this 100 Amp fuse reliably handles continuous heavy loads while preventing nuisance trips.
Featuring tin-plated copper alloy contact blades, it maintains high conductivity with minimal voltage drop. The M5 bolt-down eyelet design guarantees a solid, vibration-resistant connection that will not loosen, arc, or overheat—making it an essential component for 4WD touring, caravan, camper, and marine electrical systems.
Key Features
-
100 Amp Continuous Protection: Perfectly rated for protecting 50A+ DC-DC battery chargers, 600W–800W inverters, and primary auxiliary battery lines.
-
Slow-Blow Time-Delay Element: Engineered to tolerate short startup current spikes (inrush current) without false blowing when powering up equipment.
-
Vibration-Proof M5 Bolt-Down Mount: Secures firmly to M5 studs to eliminate loose contacts and resistive heat buildup off-road or at sea.
-
Corrosion-Resistant Terminals: Tin-plated copper blades deliver superior conductivity and long-term protection against oxidation and humidity.
-
Clear Visual Inspection: Stamped 100A rating and transparent housing window allow for instant visual diagnostic checks inside fuse holders.
Technical Specifications
| Specification |
Details |
| Product Type |
AMI / MIDI Bolt-Down Fuse |
| Amperage Rating |
100 Amp (100A) |
| Voltage Rating |
Up to 32V DC (Supports 12V / 24V systems) |
| Interrupt Rating |
5,000A @ 16V DC / 2,000A @ 32V DC |
| Mounting Style |
M5 Stud / Bolt-Down (~30mm hole spacing) |
| Terminal Material |
Tin-Plated Copper Alloy |
| Body Material |
High-Temperature Thermoplastic |
| Operating Temp |
-40°C to +125°C |
Applications
-
50A+ DC-DC battery chargers and MPPT solar regulators
-
600W to 800W pure sine wave power inverters
-
Auxiliary dual-battery power distribution lines and main battery interconnects
-
Caravan, 4WD, camper trailer, and marine power systems
