Compact, Reliable DC Power Distribution for Marine, RV & 4WD Systems

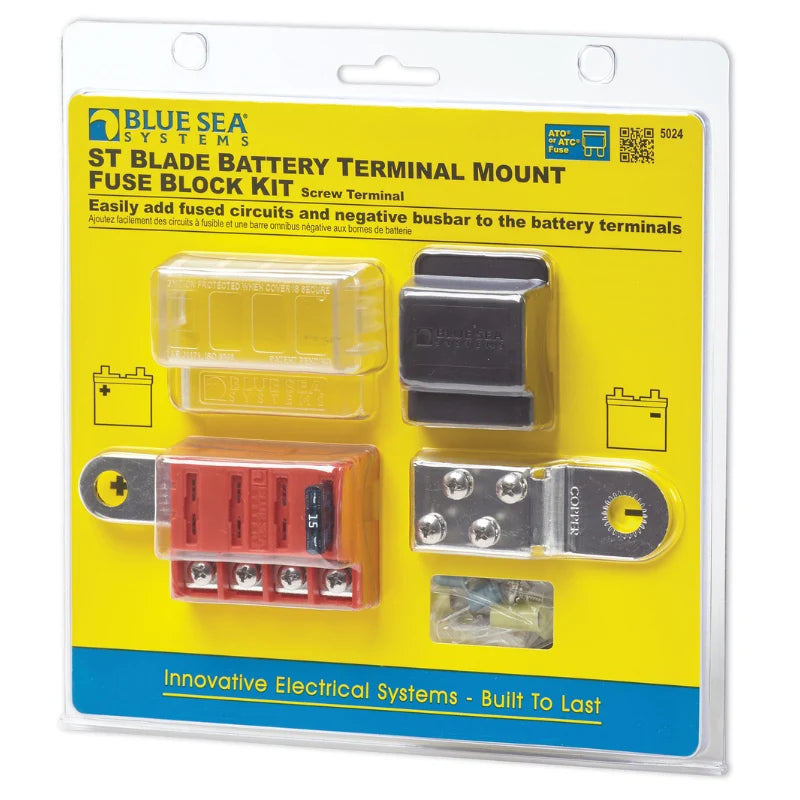

Consolidate auxiliary electrical circuits and eliminate messy wiring with the Blue Sea Systems ST Blade Fuse Block (4 Circuits with Ground Bus). Designed for harsh marine and off-grid environments, this high-performance distribution block provides central protection for up to 4 ATO/ATC blade fuses, along with an integrated negative ground bus bar to streamline your installation.
Featuring tin-plated copper buses and screw terminals, it delivers maximum conductivity and corrosion resistance. The clear insulating cover features a clip-latch system with storage for spare fuses, while satisfaction-rated flame-retardant materials ensure maximum safety in engine bays, caravan setups, and dual-battery systems.
Key Features
-
Integrated Ground Bus: Includes a common negative ground bus bar to consolidate returns and eliminate extra terminal blocks.
-
4-Fuse Circuit Protection: Accepts standard ATO and ATC fast-acting blade fuses from 1A to 30A per circuit.
-
Corrosion-Resistant Components: Tin-plated copper buses and screw terminals provide superior electrical conductivity and marine-grade corrosion defense.
-
Insulating Protective Cover: Clear cover satisfies ABYC/USCG safety requirements, incorporates easy-to-use write-on label recesses, and holds 2 spare fuses.
-
High Amp Rating: Built to handle up to 30A maximum per circuit and 100A total continuous rating across the entire block.
Technical Specifications
| Specification |
Details |
| Brand |
Blue Sea Systems |
| Circuits |
4 Fuse Positions |
| Ground Bus |
Integrated Negative Bus Bar |
| Max Voltage |
32V DC |
| Max Amperage (Per Circuit) |
30A |
| Max Amperage (Total Block) |
100A |
| Fuse Type |
Standard ATO / ATC Blade Fuses |
| Terminal Type |
#8-32 Screws with Captive Star Washers |
| Main Stud Size |
#10-32 Stud with Ring Terminal Connection |
| Base Material |
Reinforced Polycarbonate |
