TUFF-180 Drum Winch Full Kit | Compact Power for Boats up to 5.5m

Big performance for small spaces. Stop pulling and start fishing.

The TUFF-180 is Australia’s favorite compact drum winch. Designed specifically for recreational and light commercial vessels up to 5.5 meters, it packs full-size anchoring power into an ultra-compact footprint. If your anchor well is tight for room but you refuse to compromise on quality, the TUFF-180 is your solution. Built to survive the harshest saltwater environments, it turns a back-breaking chore into a simple push-button luxury.

Why the TUFF-180 is the #1 Choice for Aussie Boaters:

• Ultra-Compact Design: Specifically engineered to fit into small or awkward anchor wells where other winches won’t go.

• Italian-Engineered Transmission: Features an oversized, anodized worm-drive gearbox and a powerful 800W IP66-rated motor. Unlike competitors, our motors are epoxy-coated and designed to get wet—no cheap aluminum "sleeves" that trap moisture.

• Massive 2000kg Holding Capacity: Don’t let the size fool you. This winch provides rock-solid holding power, ensuring you stay on the secret spot even when the tide turns.

• Rope-Saving Technology: We are the only manufacturer to machine bevel the drum edges. This exclusive TUFF feature prevents the sharp edges of the stainless steel from fraying your rope, doubling its lifespan and protecting your hands.

• Maintenance-Free Reliability: The gearbox is pre-filled with high-grade synthetic oil and fully sealed. The twin-shaft bearing design is oversized and triple-sealed, so you spend your time fishing, not greasing gears.

The "All-In-One" Full Kit Includes:

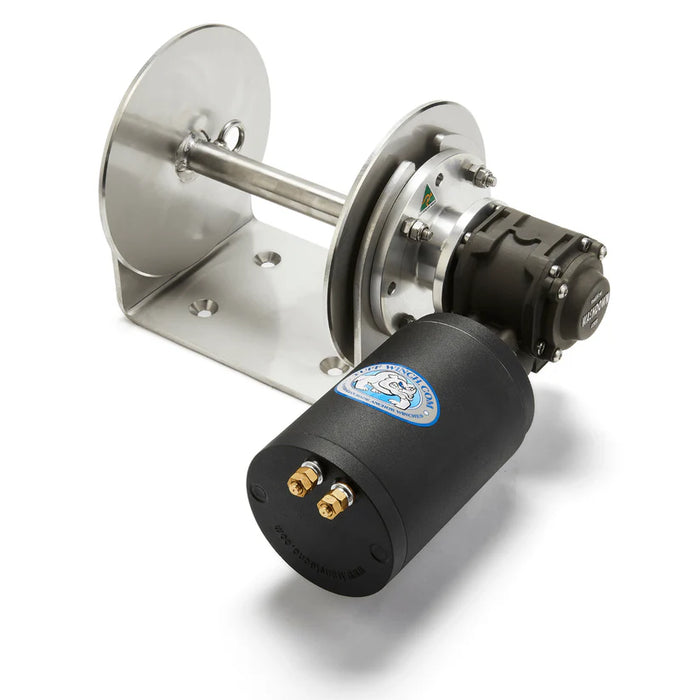

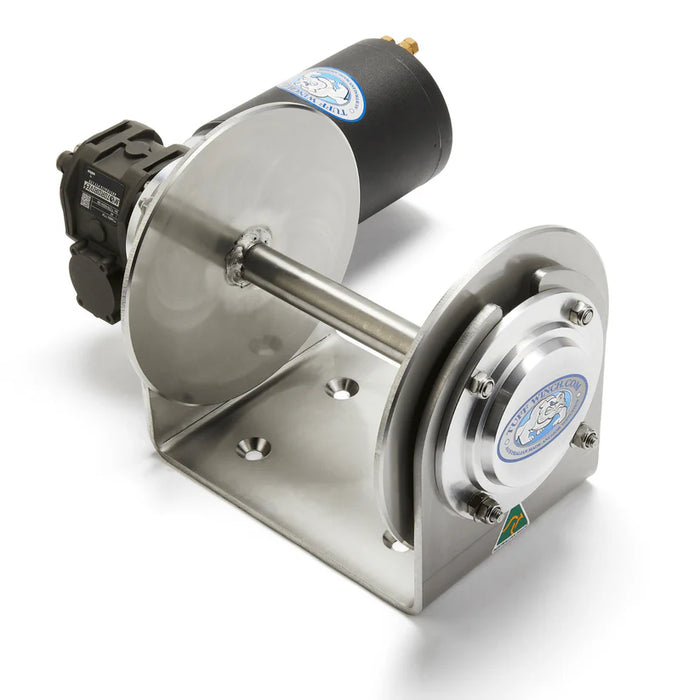

• TUFF-180 Drum Anchor Winch (100% Australian Made)

• TUFF 316 Stainless Steel Deck Roller

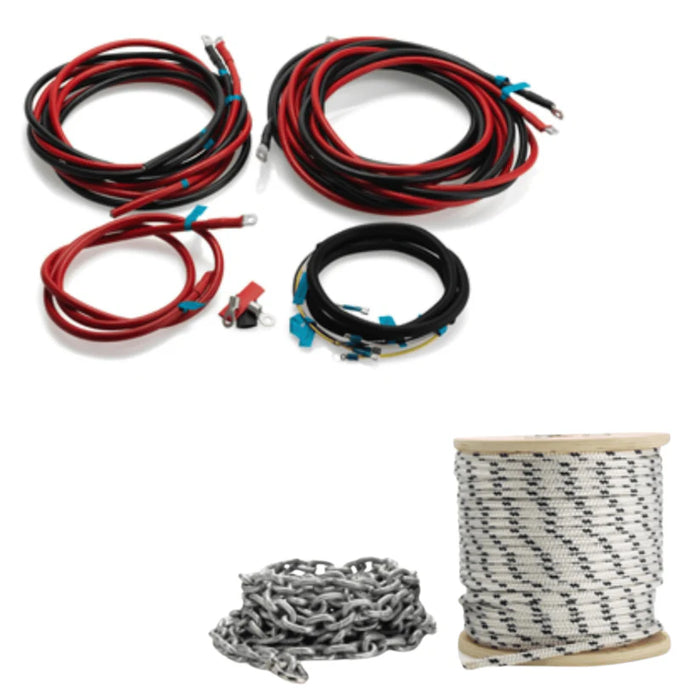

• 45m of 6mm Double Braid Nylon Rope + 6m of 6mm Galvanized Chain (Pre-spliced)

• Australian-Made Tinned Copper Wiring Loom (Pre-crimped for a 1-hour "plug and play" install)

• 400AMP Heavy Duty Solenoid

• Marine Grade Circuit Breaker

• Custom 316SS Switch Panel

• All 316 Stainless Steel Mounting Hardware

• Installation Diagrams & 5-Year Warranty

Tech Specs:

• Vessel Size: Up to 5.5m.

• Drum Diameter: 180mm.

• Motor: 800W 4-brush DC (IP66 Water Protection).

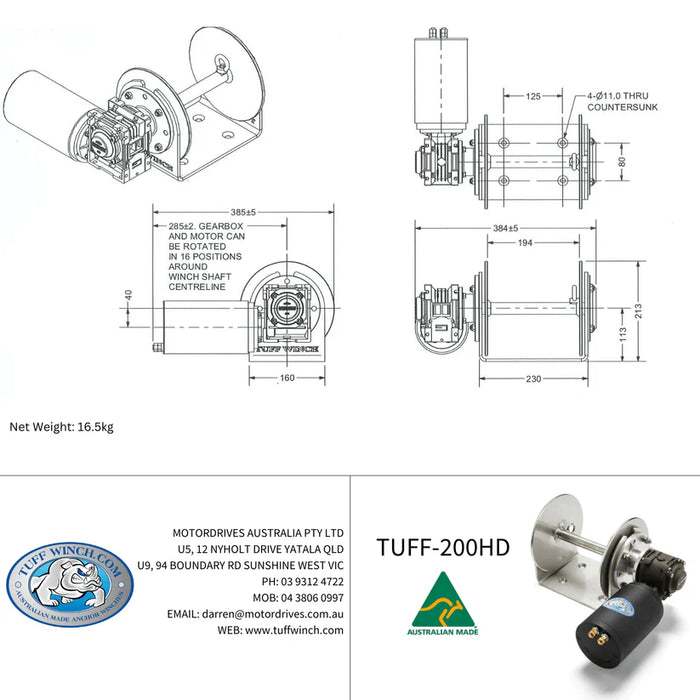

• Mounting: 16 adjustable motor positions for a custom fit in any well.

• Construction: 6mm 316 Marine Grade Stainless Steel base plate and drum.

• Shaft: Solid 316SS machined 25mm spool shaft.

The TUFF Winch Advantage

With over 30 years of experience in power transmission, TUFF Winch doesn't cut corners. Every unit is hand-assembled in our Queensland warehouse. We don't believe in "free-fall" systems that sacrifice structural integrity; instead, we provide a high-speed, high-torque drive system that is faster, safer, and built to last a lifetime.

Order your TUFF-180 Full Kit today and experience effortless anchoring on your next trip out.
