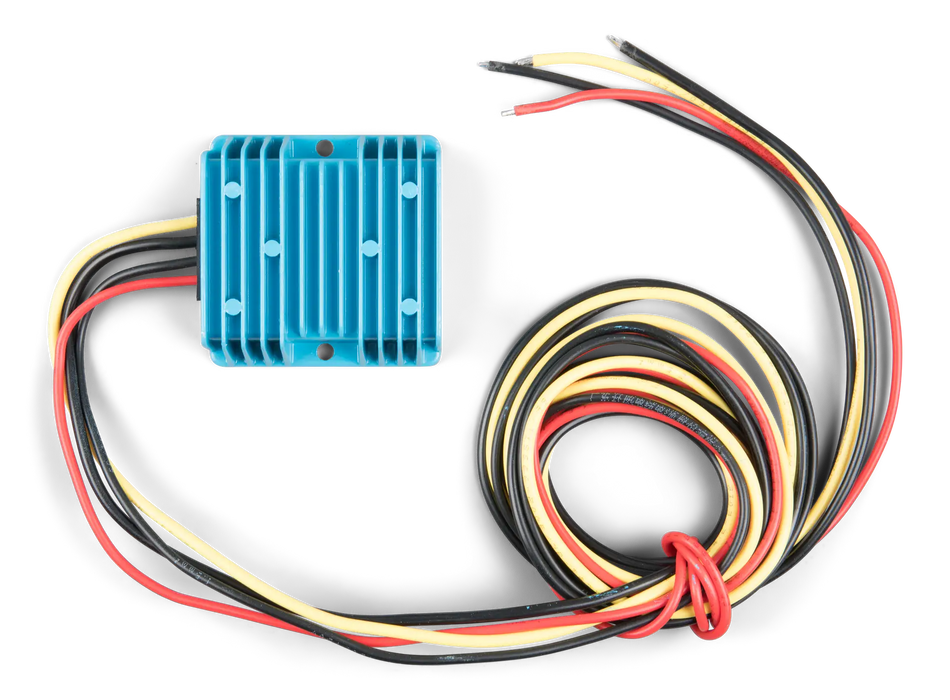

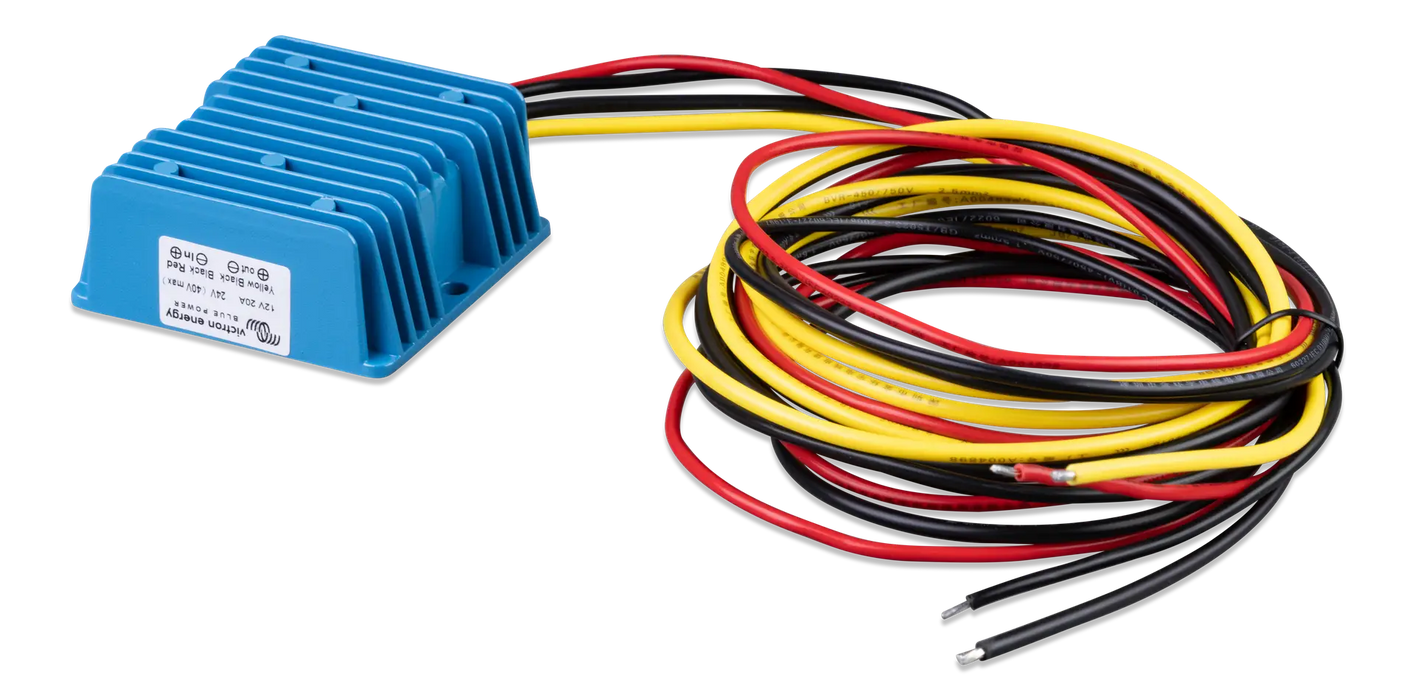

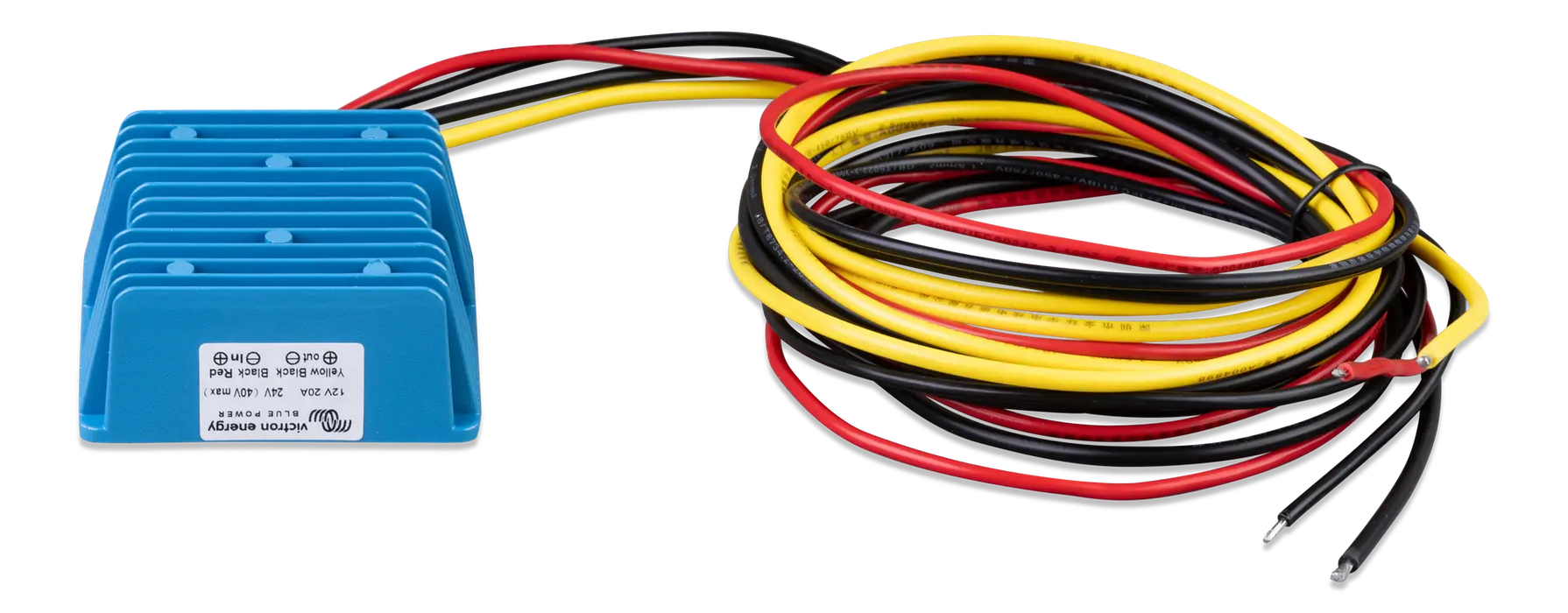

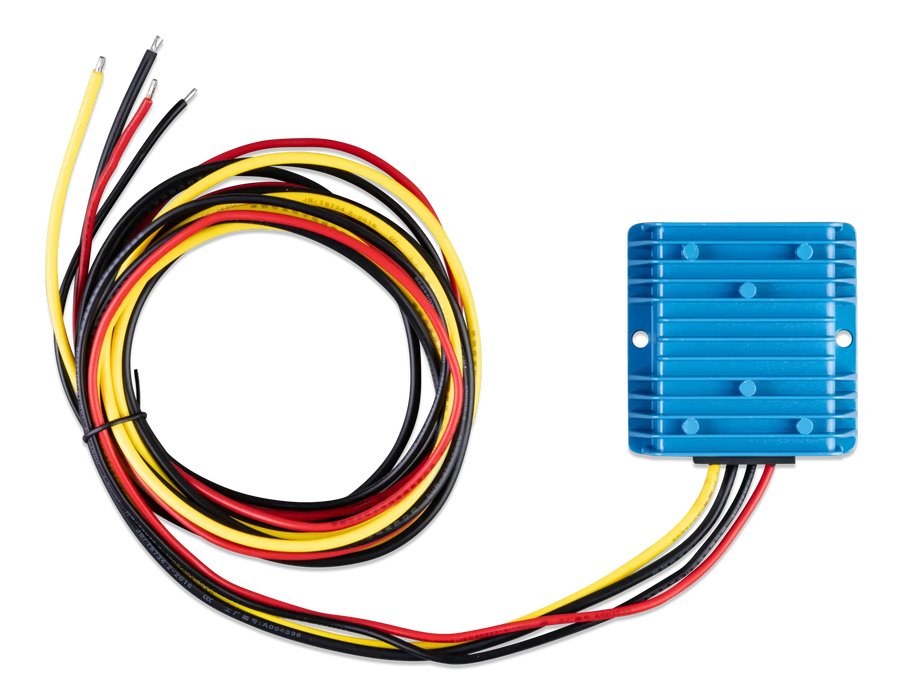

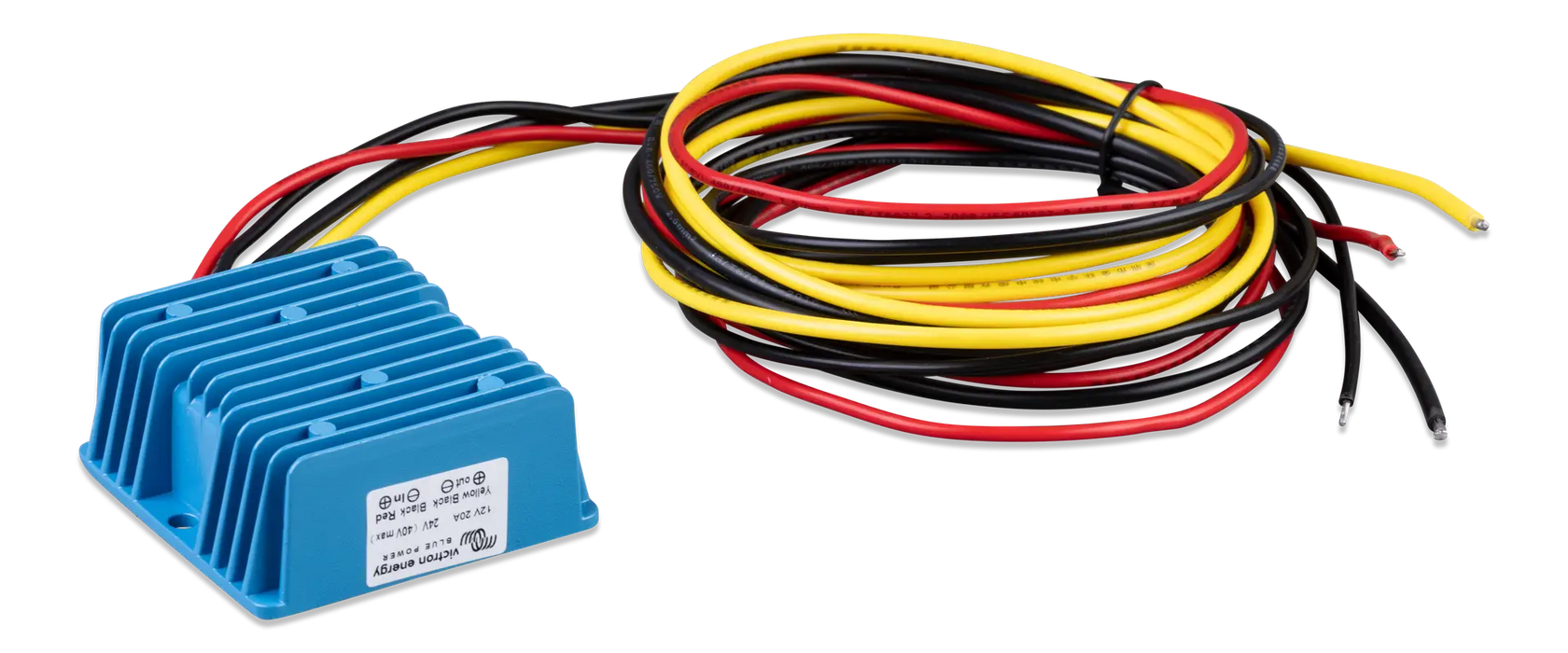

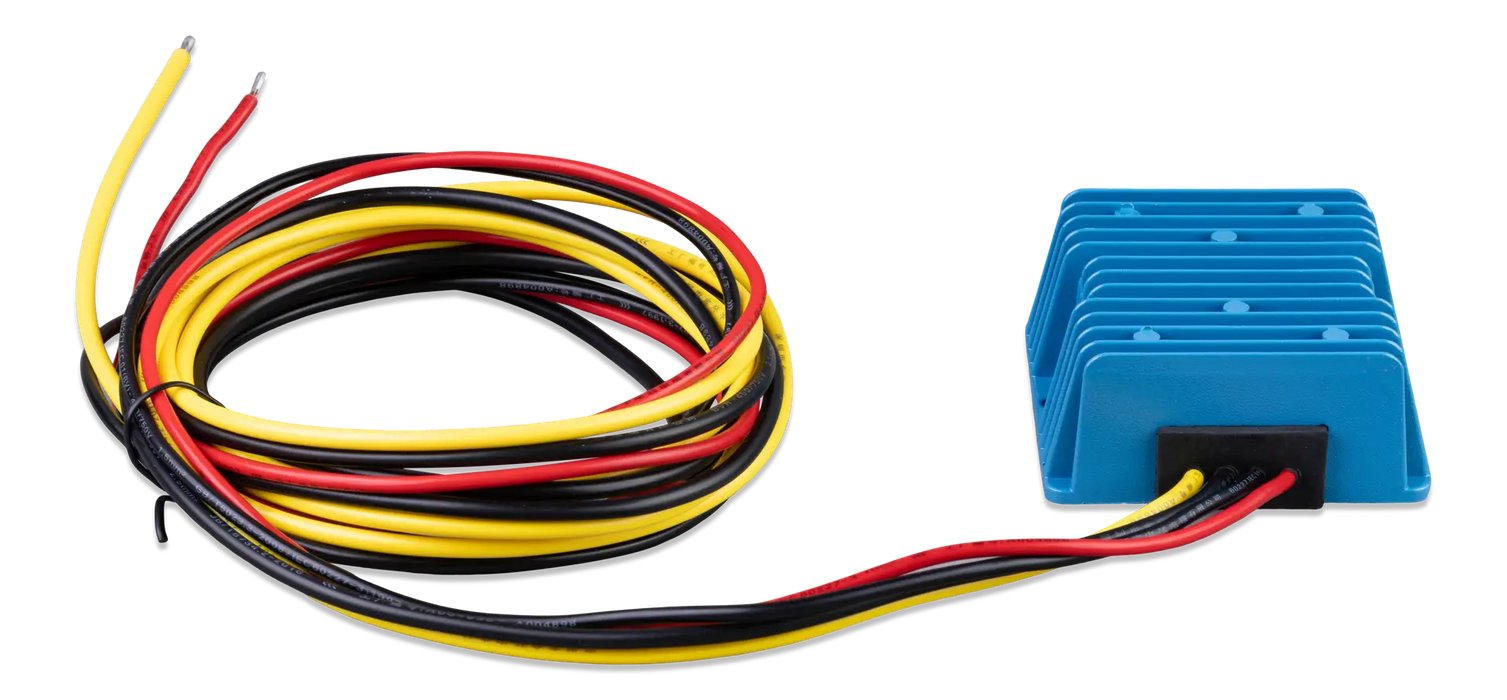

Victron Energy Orion IP67 24/12-20 (240W) DC-DC Converter

Power Performance Meets Military-Grade Durability

The Victron Energy Orion IP67 24/12-20 is the ultimate solution for converting 24V power to a stable 12V output in the harshest environments. Whether you are outfitting a marine vessel, a 4WD, or heavy industrial machinery, this DC-DC converter is engineered to perform where others fail. Completely encapsulated and waterproof, it delivers a massive 20A of continuous current with the legendary reliability Victron is known for.

Key Features:

• Completely Encapsulated & Waterproof (IP67): Built to survive. This unit is shockproof, dust-proof, and ignition protected. It can withstand temporary immersion in water, making it ideal for engine bays, marine bilges, or exterior mounting.

• Extra-Long 1.8m Cables: Forget the hassle of crimping and sourcing extra wire. This converter comes pre-wired with 1.8 meters of high-quality cabling, simplifying your installation and reducing potential points of failure.

• Ultra-High Efficiency: With a 93% efficiency rating, the Orion generates minimal heat, ensuring that more power goes to your devices and less is wasted as energy.

• Wide Input Voltage Range: Handling anything from 15V to 40V DC, it ensures a rock-solid 12V output even during battery surges or sags caused by other heavy equipment.

• Built-In Safety Protections: Equipped with overheat protection, short-circuit proofing, and "Hiccup" mode overload protection, the unit automatically recovers once a fault condition is removed.

Why Choose the Orion IP67?

Most DC-DC converters are sensitive to heat and moisture. The Orion IP67 is designed specifically for "tough" installs. If your project involves a 24V system (common in trucks, buses, and larger boats) and you need to power 12V electronics reliably, this is the industrial-grade choice.

Product Specifications:

• Input Voltage: 15-40V DC

• Output Voltage: 12V DC (± 3%)

• Max Continuous Output Current: 20A (240W)

• Efficiency: 93%

• Operating Temp: -20°C to +70°C

• Weight: 300g

• Dimensions: 74 x 74 x 32 mm

• Enclosure: Blue RAL 5012 Aluminium

In the Box:

• 1 x Victron Orion IP67 24/12-20 DC-DC Converter (with integrated 1.8m cables)
