TYREE 3MM TWIN SHEATH WHITE TINNED COPPER WIRE PER METER
SKU: SUR/MWS21603-WH-100
Click & Collect Available
Order online and collect within 2 hours during business hours.

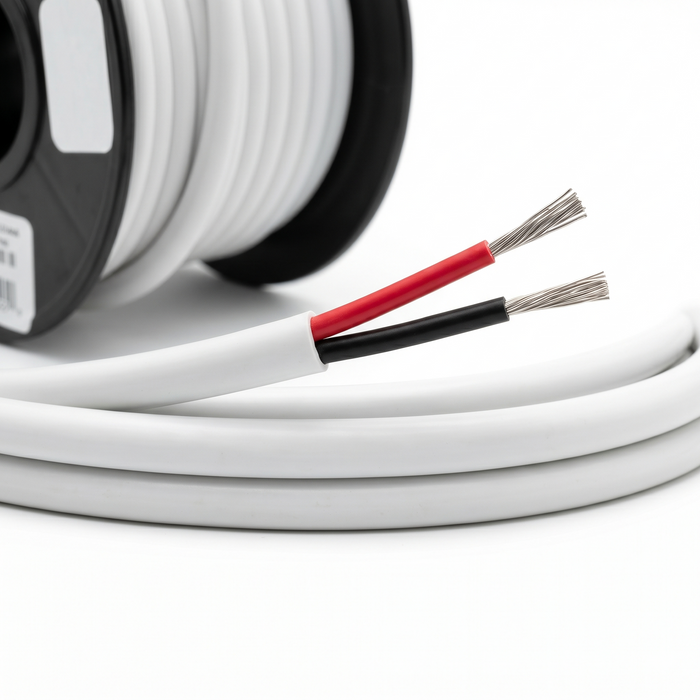

Tyree 3mm Twin Sheath Automotive Cable White
Upgrade your electrical installations with the Tyree MWS21603-WH-100, a premium-grade, 3mm twin-core cable designed for durability and high conductivity. Engineered specifically for Extra Low Voltage applications, this cable is the industry standard for automotive, marine, and solar wiring where reliability is non-negotiable.
Key Features & Benefits
-
Superior Conductivity: Features Tinned Copper Wire (TCW) conductors compliant with AS/NZS 1125. Tinned copper offers significantly better corrosion resistance than bare copper, making it ideal for humid or marine environments.
-
High-Grade Insulation: Insulated with RoHS Compliant V90 PVC, capable of withstanding higher operating temperatures (up to 90°C) compared to standard PVC.
-
Robust Protection: The outer white sheath is made of 5V90 PVC, providing a secondary layer of protection against abrasion and environmental wear.
-
Easy Identification: Internal cores are color-coded Red and Black for mistake-proof polarity during installation.
-
Compliance Guaranteed: Manufactured to meet strict AS/NZS 3808 standards, ensuring safety and performance for professional trades.
Technical Specifications (SKU: SUR/MWS21603-WH-100)
| Feature | Specification |
| Industry Equivalent | 3mm |
| Conductor No/Dia | 14 / 0.32 mm |
| Nominal Area | 1.13 $mm^2$ |
| Amp Rating | 16A (JASO D609 @ 30°C) |
| Electrical Resistance | 16.7 ohm/km (@ 20°C) |
| Nominal O.D. | 3.3 x 5.5 mm |
| Voltage Rating | Extra Low Voltage Only |
